NOTE: Do not lift or overbend the spring in any
direction.

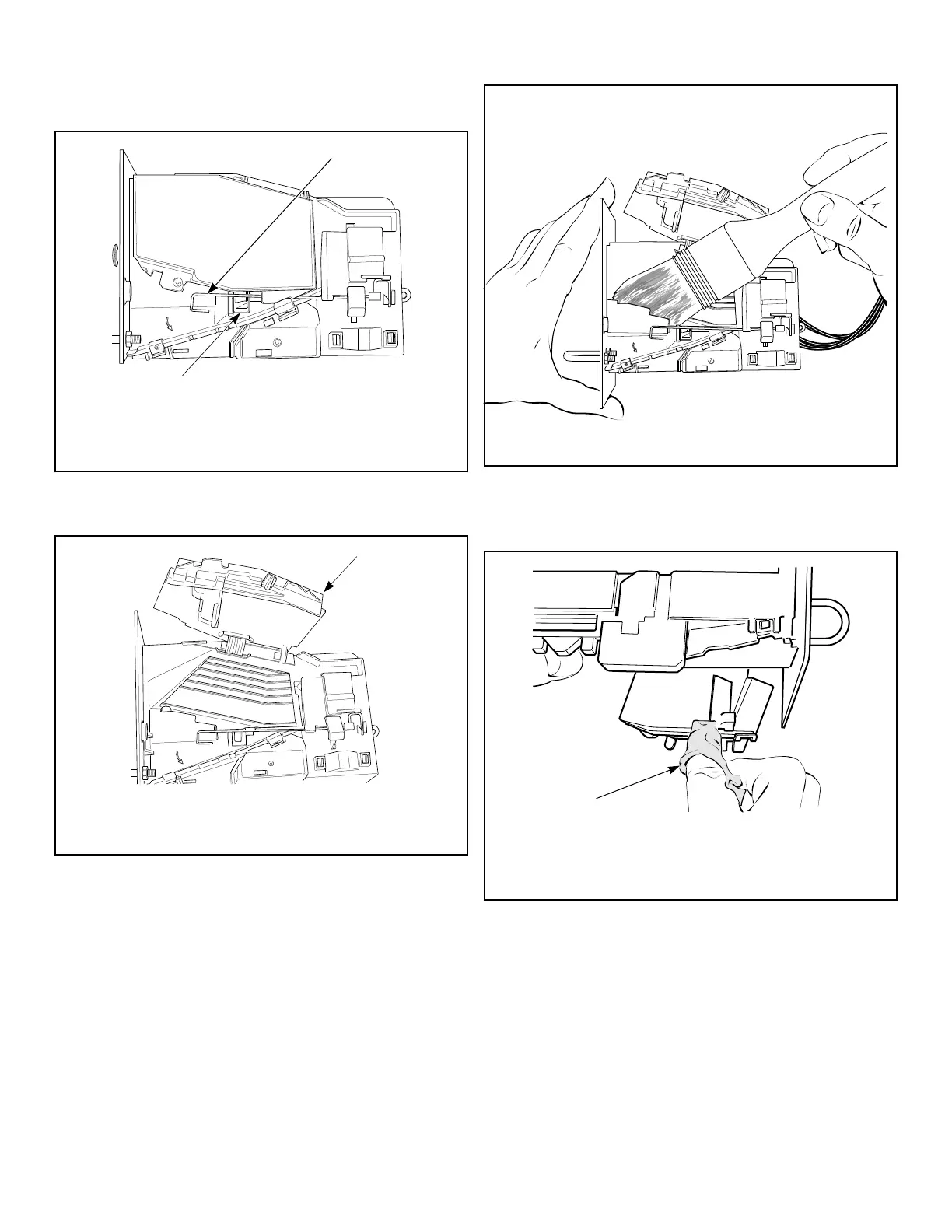

DRY2088N_SVG
2
1
1. Spring
2. Catch
Figure 29
b. Open cover for coin drop. Refer to Figure 30 .
DRY2089N_SVG
1
1. Cover
Figure 30
4. Clean the coin path with a soft brush and wipe exposed surfa-
ces with an alcohol moistened cloth. Refer to Figure 31 .
DRY2090N_SVG
Figure 31
5. Clean residue from coin rail with an alcohol moistened cloth.
Refer to Figure 32 .
DRY2406N_SVG
1
1. Alcohol Moistened Cloth
Figure 32
6. Clean light sensors with a soft brush or air spray duster. Refer
to Figure 33 .
Adjustments
©
