70291301 29
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT
Troubleshooting
Troubleshooting Coin Drop
If coin drop is not accepting coins, perform the
following:
1. Clean coin drop. Refer to Paragraph 17.
2. On electronic coin drops with an old-style
tension spring (shown in Figure 1 and Figure 3),
test and replace tension spring using the
following instructions.
Remove Coin Drop From Machine
1. Disconnect electrical power to machine and drop.
2. Remove coin drop from machine.
Test Tension Spring
1. Push coin return button to open and close coin
drop cover to clear possible coin jams. Refer to
Figure 1.
2. Manually hold down coin drop cover and insert
coin. Refer to Figure 2.
3. If coin drop now operates properly, replace
tension spring using instructions on following
pages.
Replace Tension Spring
1. Move tension spring downward until cover catch
is free. Refer to Figure 3.
2. Open cover for coin drop.
3. Place a small flathead screwdriver under right
side of tension spring and lift up. Refer to
Figure 4.
4. Use screwdriver to move spring approximately 3
mm to left.
5. Lift spring over left tab. Refer to Figure 4.
6. Rotate spring clockwise, 40 to 60 degrees, until it
is free from right tabs. Refer to Figure 5.

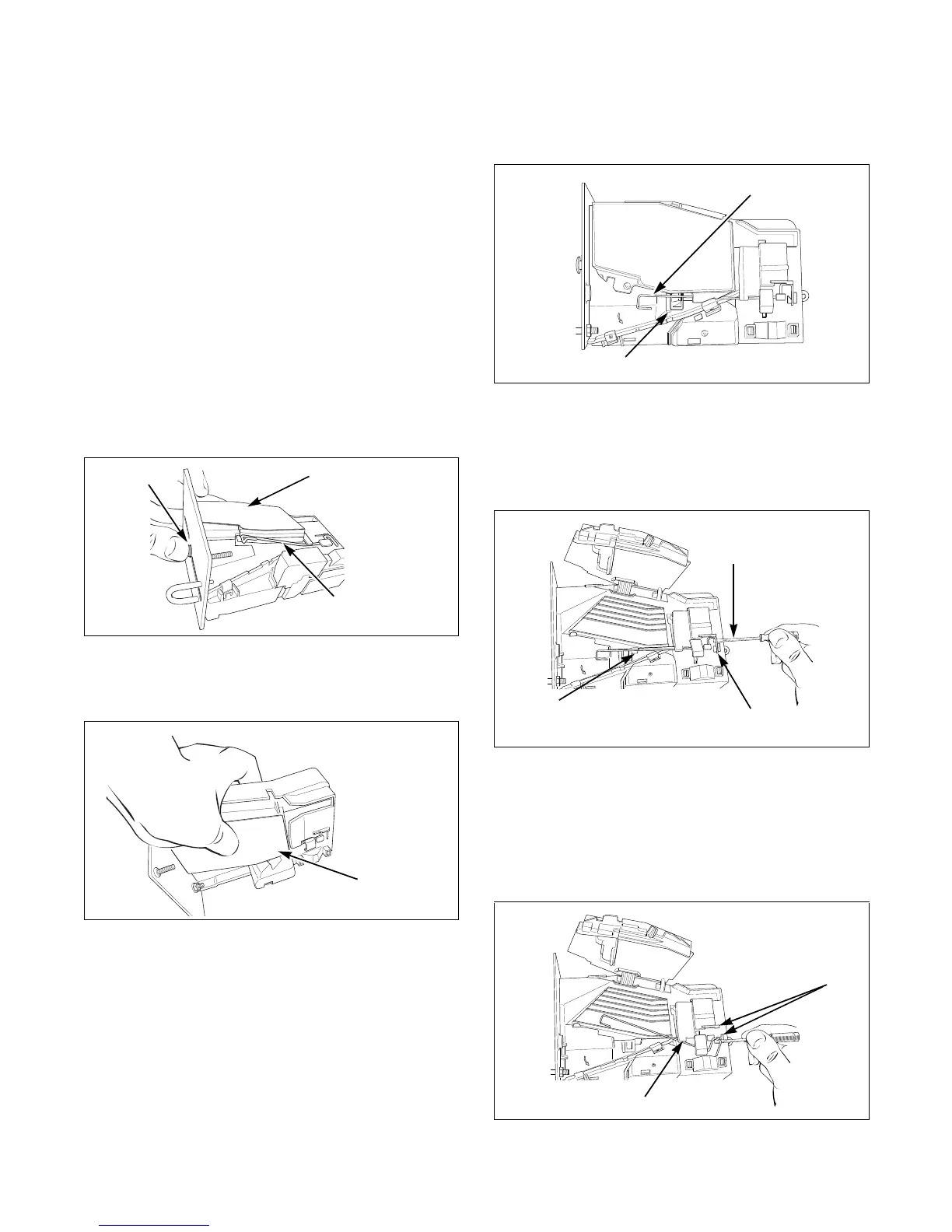

Figure 1
Figure 2
MIX7B
Coin Drop
Cover
Coin Return
Button
Tension Spring
Figure 3
Figure 4
Figure 5
Cover Catch
Tension Spring
MIX2B
Small Flathead
Screwdriver
Right Side of
Tension Spring
Left Tab
To Next Page
