Troubleshooting
7. Use screwdriver to remove spring from center
tab. Refer to Figure 5.
8. Lift spring, with attached clip, off drop.
9. Remove clip from spring. Refer to Figure 6.
10. Attach clip to new tension spring, Part No. 209/
00598/02.
11. Place clip, installed on spring, in slot on coin
drop. Refer to Figure 7.
12. Use a small flathead screwdriver to push spring
under center tab. Refer to Figure 8.
13. Lift spring gently to place in position under left
tab.
14. Push spring to right until it snaps into position.
Refer to Figure 4.
15. Close coin drop cover.
16. Move tension spring over cover catch. Refer to
Figure 3.
Reinstall Coin Drop Into Machine
1. Reinstall coin drop into machine.
2. Reconnect electrical power to machine and drop.
3. Add a coin to drop to verify that coin drop is
operating properly and that electrical connection
is working properly.

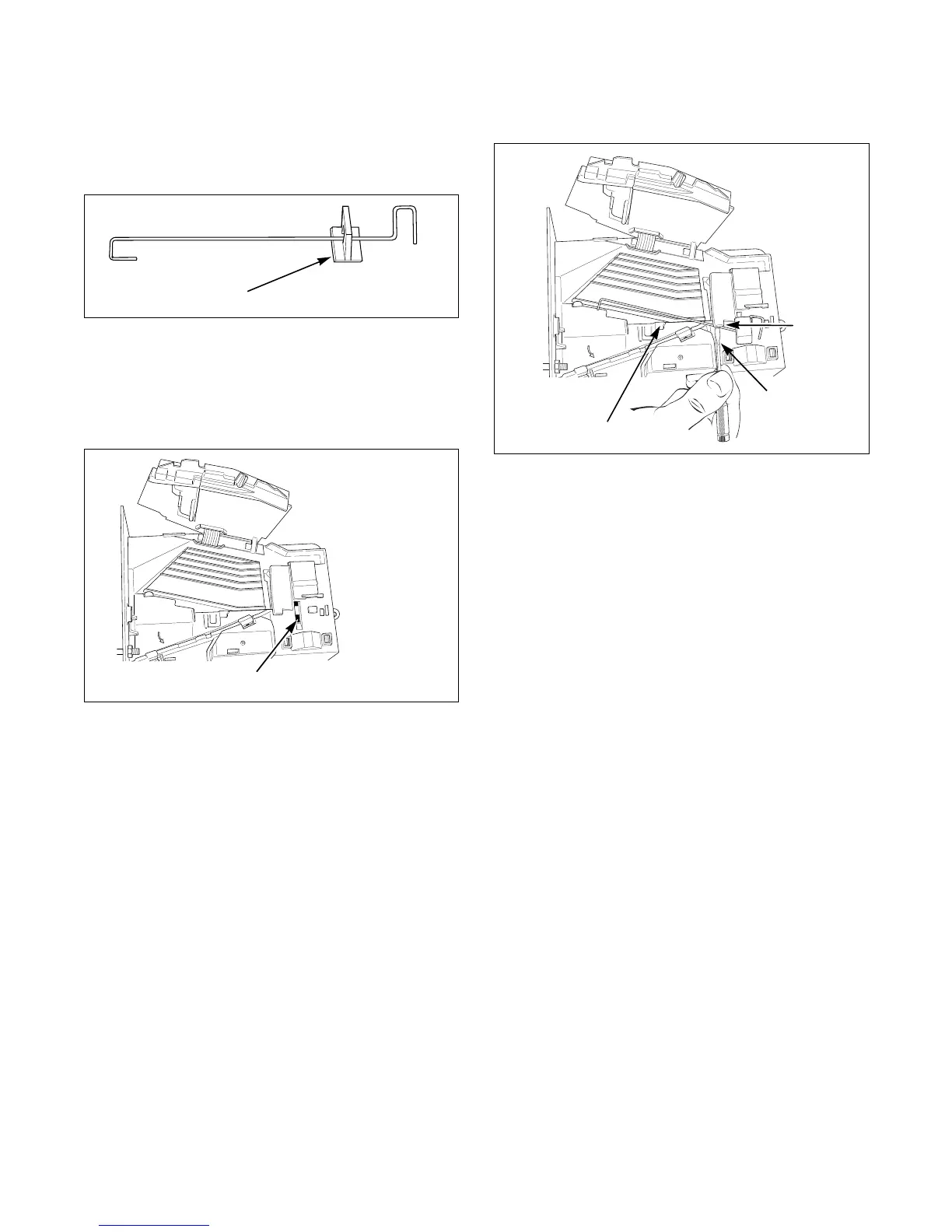

Figure 6
Figure 7
Figure 8
Small Flat
Screwdriver
Center
Tab
Left Tab
