Adjustments
.
5. Clean residue from coin rail with an alcohol
moistened cloth. Refer to Figure 16.
6. Clean light sensors with a soft brush or air spray
duster. Refer to Figure 17.
7. Close cover for coin drop.
8. Coin Drops with OLD-Style Spring – Move
spring back over cover catch.
9. Reinstall coin drop into machine.
10. Reconnect electrical power to machine and drop.
11. Add a coin to drop to verify that coin drop is
operating properly and that electrical connection
is working properly.
DRY2090N

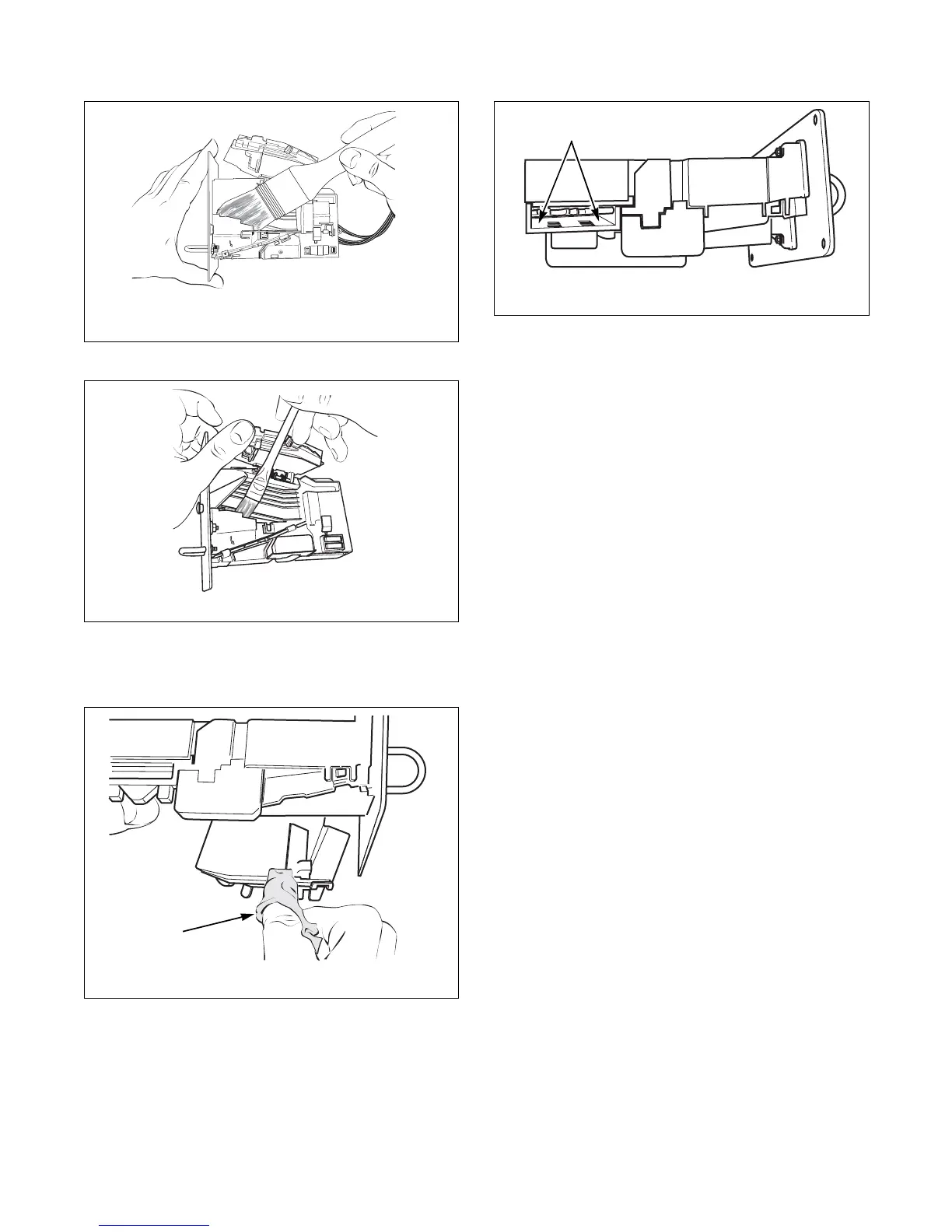

Figure 14
DRY2405N
Figure 15
DRY2406N
1 Alcohol Moistened Cloth
Figure 16
OLD-STYLE SPRING COIN DROP
NEW-STYLE SPRING COIN DROP
DRY2407N
1 Light Sensors
Figure 17
