Hardware Reference 9
C613-03092-00 REV J
AT-9924T switch Key features are:
■ Autonegotiating, multi-layer gigabit switch
■ 24 x 10BASE-T/100BASE-TX/1000BASE-T ports (RJ-45 connectors)
■ 4 x SFP ports (see “Network Ports” on page 20 for speeds)
■ Hot-swappable, load sharing PSUs

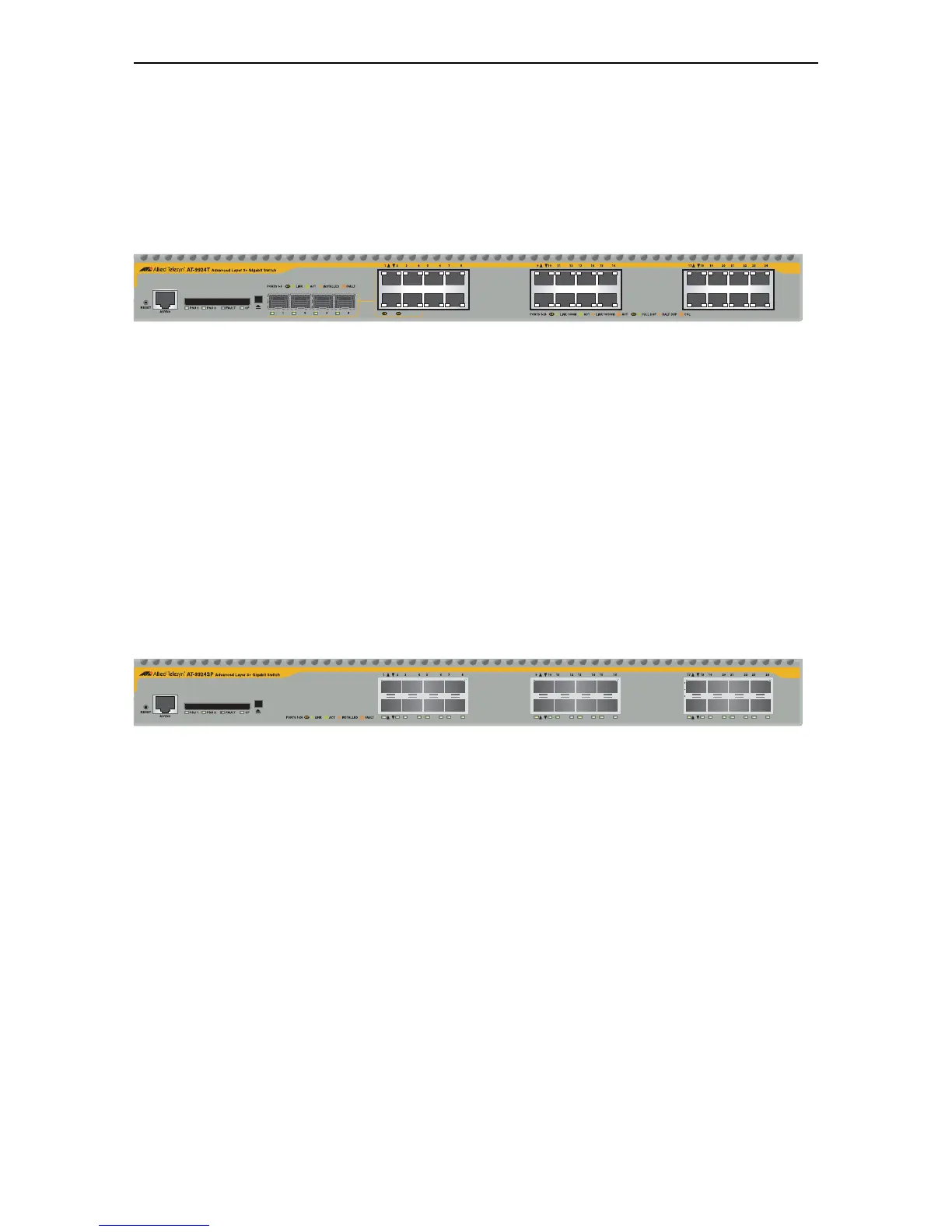

AT-9924T front panel
There can be 24 ports operational at one time. The RJ-45 ports 1 to 4 use the
same physical interface as the SFP ports 1 to 4. When an SFP is inserted into an
SFP port, the corresponding RJ-45 port is disabled. For example, if an SFP is
inserted in SFP port 1, then RJ-45 port 1 is disabled. When the SFP is removed
from port 1, the RJ-45 port 1 is again operational. All other RJ-45 ports function
normally.
AT-9924SP switch Key features are:
■ Autonegotiating, multi-layer gigabit switch
■ 24 x SFP ports (see “Network Ports” on page 20 for speeds)
■ Hot-swappable, load sharing PSUs
AT-9924SP front panel
