Installation
12
3. Attach the rackmounting brackets to each side of the switch using the
screws provided. See Figure 7.

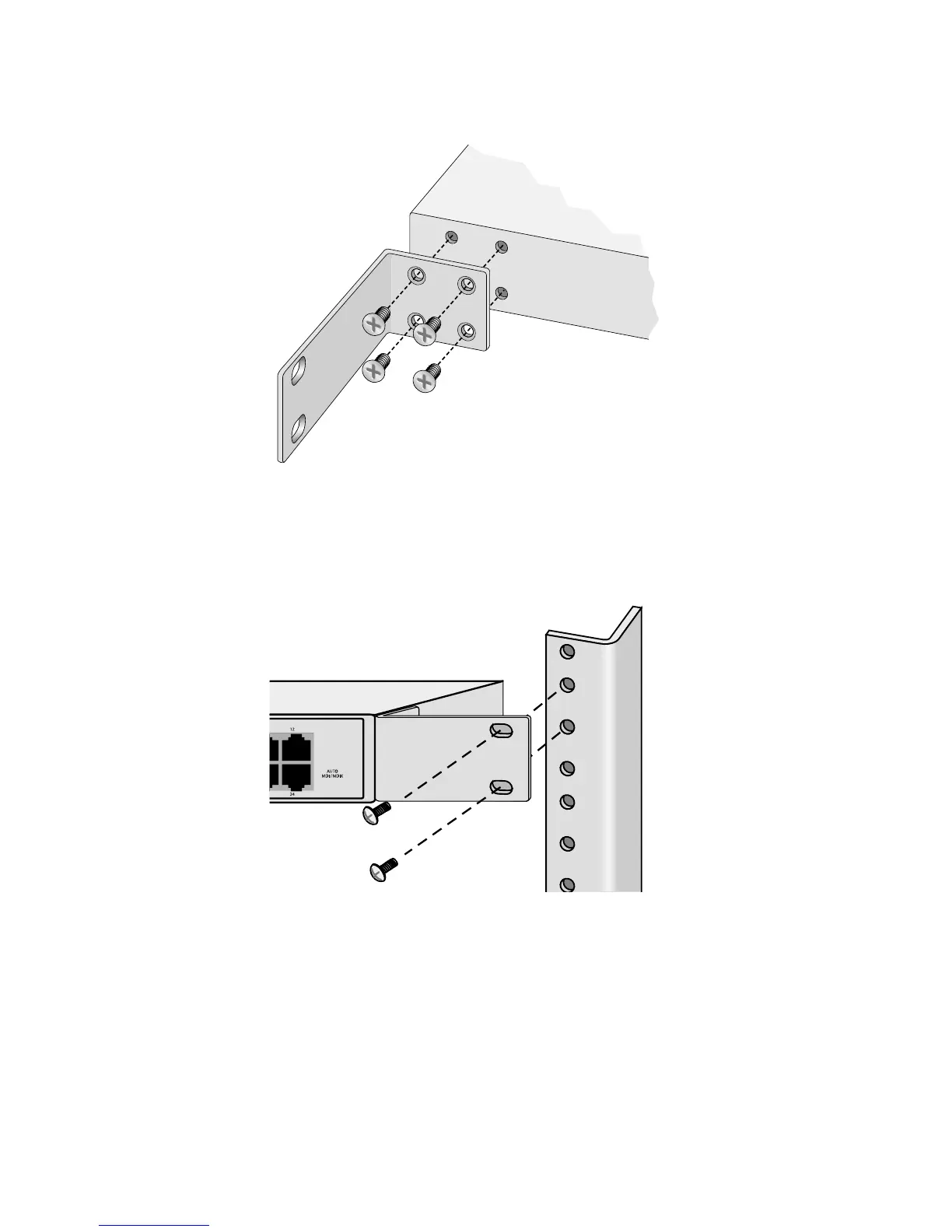

Figure 7 Attaching the Rackmounting Brackets to the Switch
4. Secure the switch to the rack using 2 screws (not provided) for each side as
shown in Figure 8.
Figure 8 Installing the Switch to the Rack
5. Apply power to the switch by plugging one end of the power cord to the
power receptacle and the other end to a power outlet. Verify that the
POWER LED is green. If the LED is OFF, refer to “Troubleshooting” on
page 15.
