Chapter 1
Overview
The AT-FS724L is Fast Ethernet switch that provides simple, cost-effective
solutions for switching between 10 Mbps and 100 Mbps.
The AT-FS724L switch features 24 10/100Base-TX twisted pair ports. Each
twisted pair port has a RJ-45 connector and a maximum operating distance of
100 meters (328 feet). These ports are capable of Auto-Negotiating at 10 or 100
Mbps and feature half- and full-duplex operation.
The AT-FS724L features an internal power supply and are designed for
desktop or rackmount installation.
These switches are easy to install and do not require software configuration or
management.

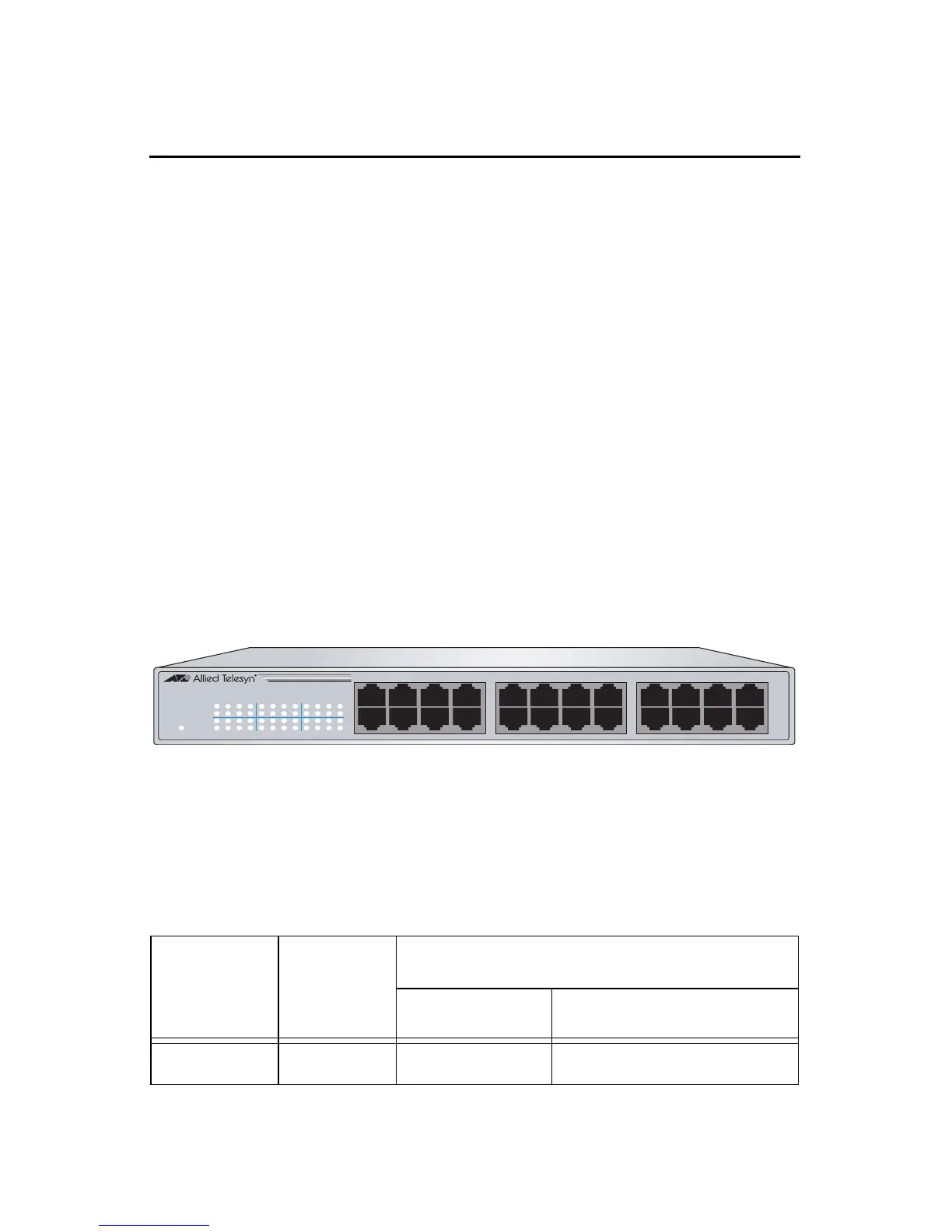

Figure 1 illustrates the front panel of the AT-FS724L switch.
Figure 1 AT-FS724L Front Panel
Table 1 lists the number of ports, connector type, and maximum operating
distance for each switch.
Table 1 AT-FS724L Switch
Model
Number of
Ports
10/100Base-TX
Connector Maximum Operating Distance
AT-FS724L 24 RJ-45 100 m (328 ft)
AT-FS724L
24 Port Fast Ethernet Switch
18 20 22 24
10 12 14 162468
91113151357
17 19 21 23
100M
LNK/ACT
100M
LNK/ACT
POWER
1 3 5 7 9 11 13 15 17 19 21 23
2 4 6 8 10 12 14 16 18 20 22 24
AUTO
MDI/ MDI-X
