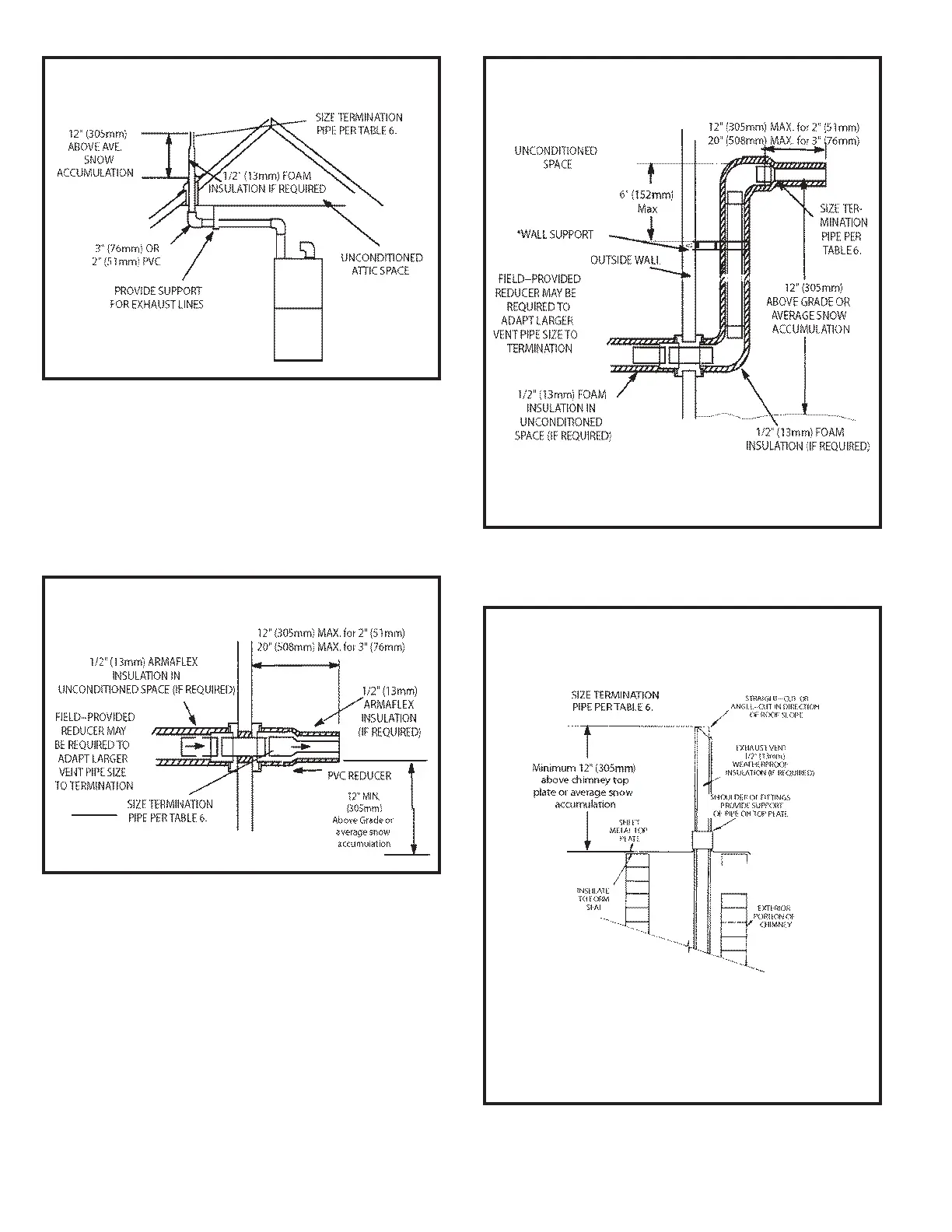

Allied A96US2V - Non-Direct Vent Termination Options; Non-Direct Vent Roof Termination Kit

507404-02Page 34 of 80 Issue 1448
Figure 48
Non-Direct Vent Application
Using Existing Chimney
NOTE: Do not discharge exhaust gases directly into any chimney or
vent stack. If vertical discharge through an existing unused chimney or
stack is required, insert piping inside chimney until the pipe open end
is above top of chimney and terminate as illustrated. In any exterior
portion of chimney, the exhaust vent must be insulated.
Figure 47
* Use wall support every 24” (610). Use two supports if extension
is greater than 24” but less than 48”.
Non-Direct Vent Field Supplied Wall
Termination Extended
Figure 45
Non-Direct Vent Roof Termination Kit
(15F75 or 44J41)
Figure 46
Non-Direct Vent Field Supplied Wall Termination
