ALLU D SERIES - ORIGINAL INSTRUCTION MANUAL - ALLU_6-M-DENG0615
43

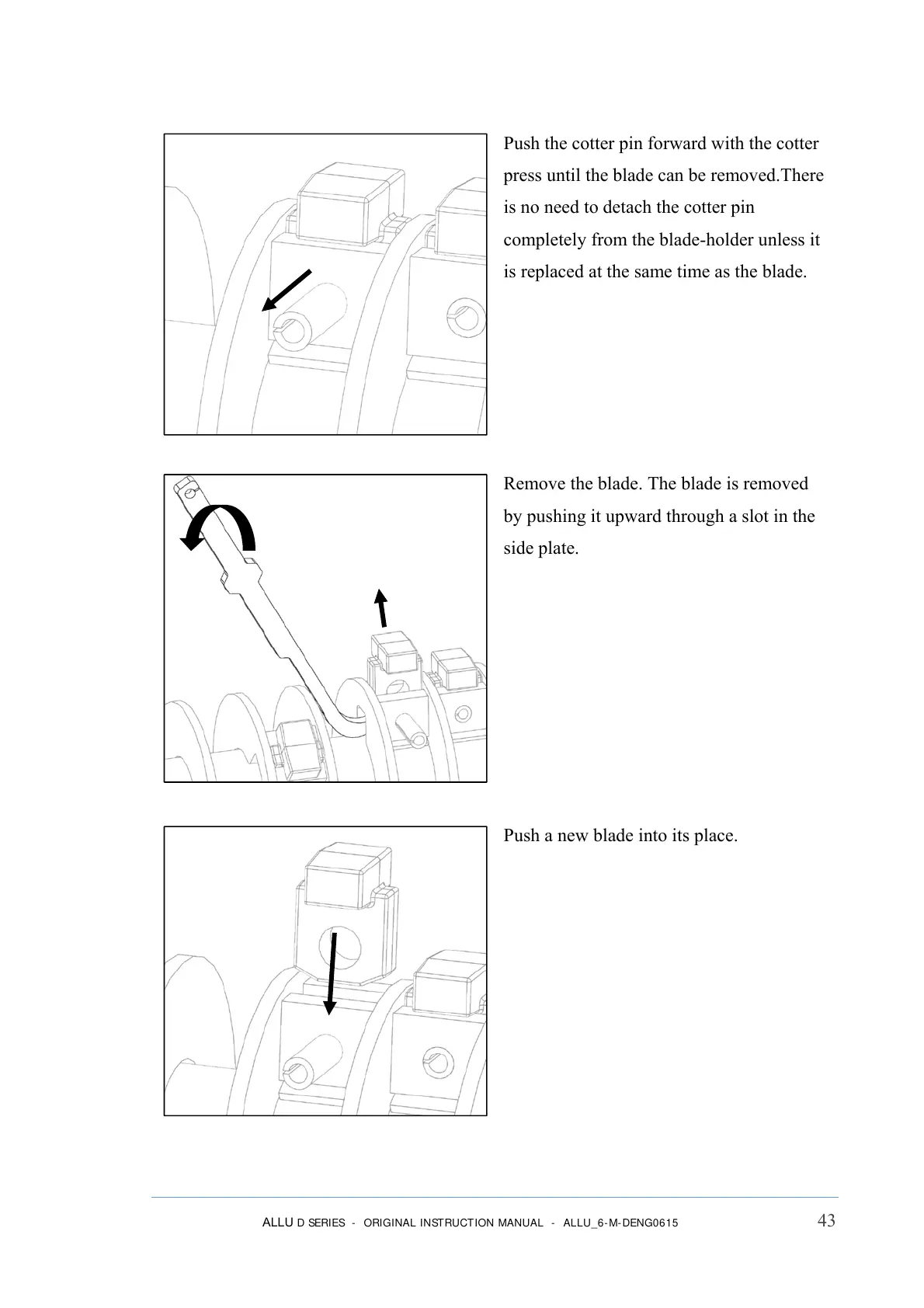

Push the cotter pin forward with the cotter
press until the blade can be removed.There
is no need to detach the cotter pin
completely from the blade-holder unless it
is replaced at the same time as the blade.
Remove the blade. The blade is removed
by pushing it upward through a slot in the
side plate.
Push a new blade into its place.
