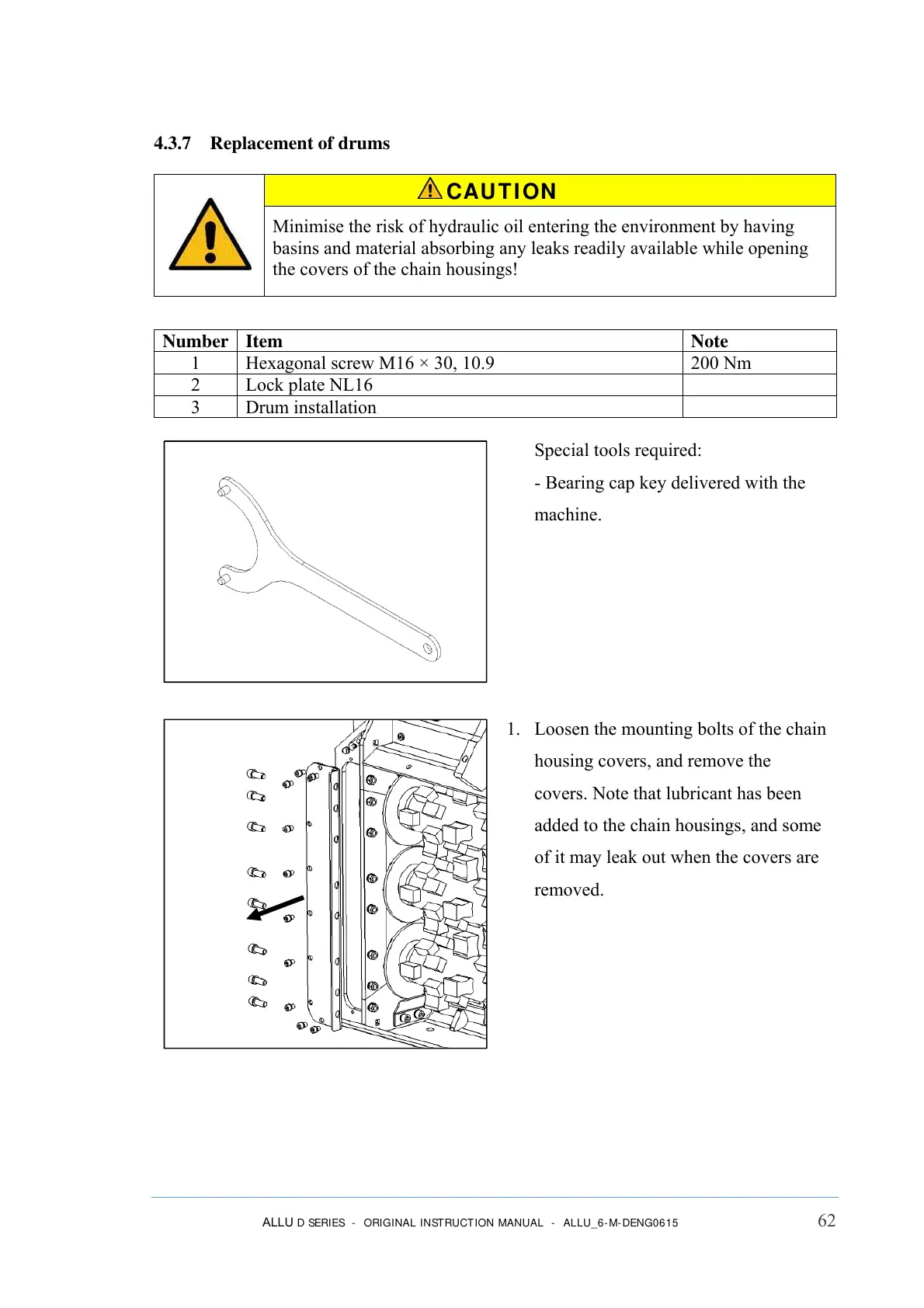

4.3.7 Replacement of drums
Number Item Note
1 Hexagonal screw M16 × 30, 10.9 200 Nm
2 Lock plate NL16
3 Drum installatio
n
Special tools required:
- Bearing cap key delivered with the
machine.
1. Loosen the mounting bolts of the chain
housing covers, and remove the
covers. Note that lubricant has been
added to the chain housings, and some
of it may leak out when the covers are
removed.
CAUTION
Minimise the risk of hydraulic oil entering the environment by having
basins and material absorbing any leaks readily available while opening
the covers of the chain housings!
