ALLU D SERIES - ORIGINAL INSTRUCTION MANUAL - ALLU_6-M-DENG0615
84
5.3 Hydraulic schematics
5.3.1 Connecting the Screener crusher with the base machine’s hydraulic system

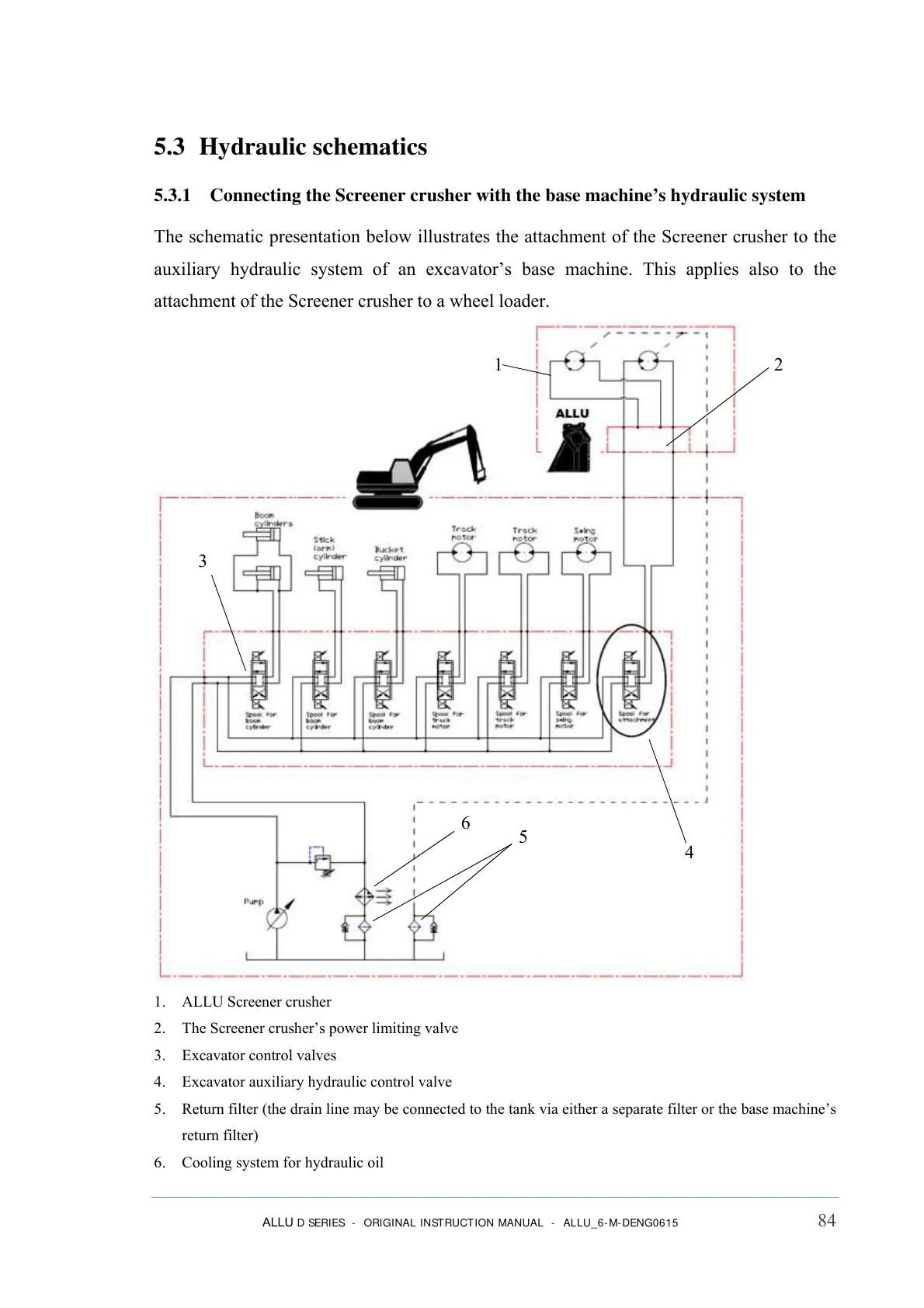

The schematic presentation below illustrates the attachment of the Screener crusher to the
auxiliary hydraulic system of an excavator’s base machine. This applies also to the
attachment of the Screener crusher to a wheel loader.
1. ALLU Screener crusher
2. The Screener crusher’s power limiting valve
3. Excavator control valves
4. Excavator auxiliary hydraulic control valve
5. Return filter (the drain line may be connected to the tank via either a separate filter or the base machine’s
return filter)
6. Cooling system for hydraulic oil
1
2
3
4
5
6
