ALLU D SERIES - ORIGINAL INSTRUCTION MANUAL - ALLU_6-M-DENG0615
45

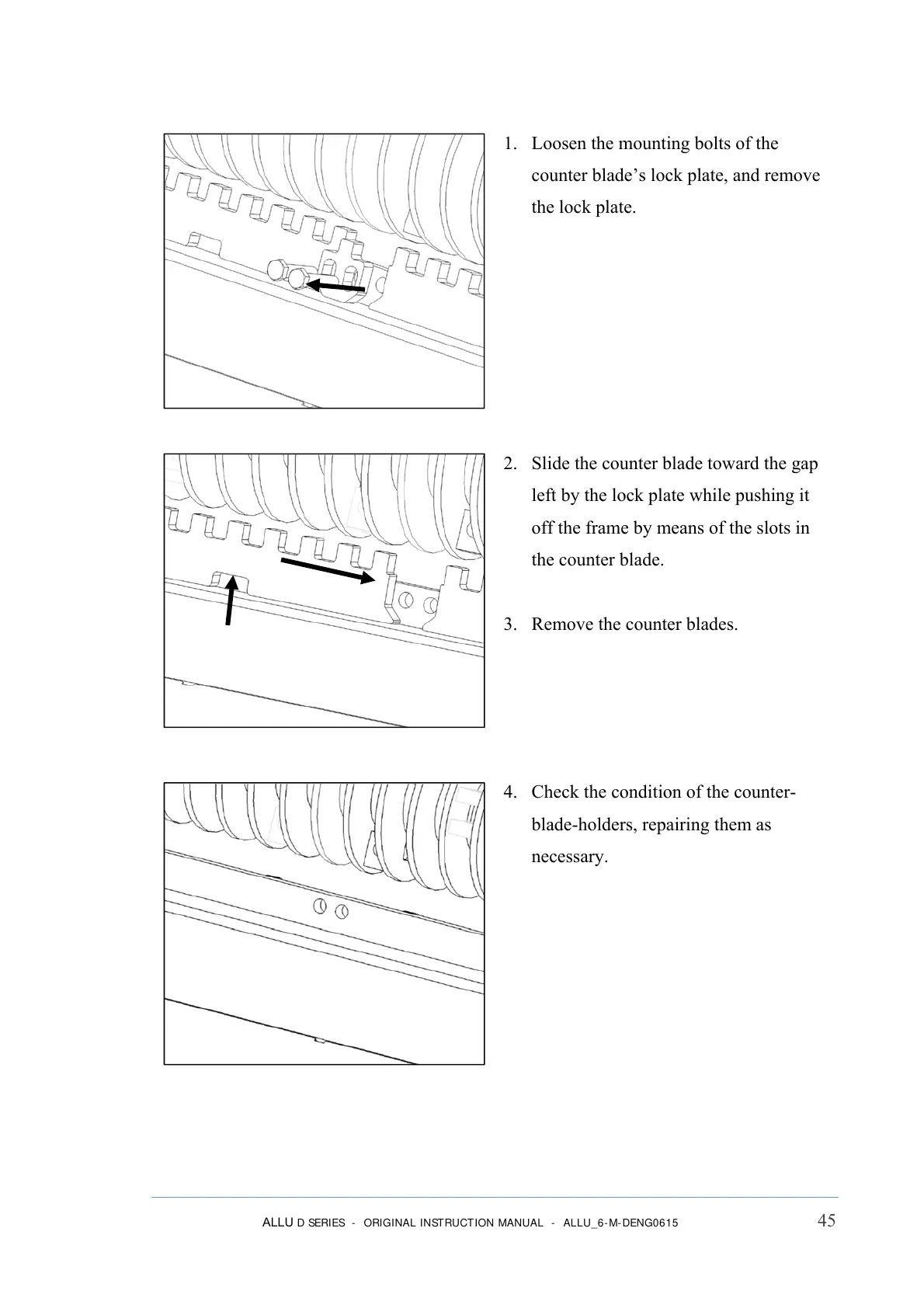

1. Loosen the mounting bolts of the
counter blade’s lock plate, and remove
the lock plate.
2. Slide the counter blade toward the gap
left by the lock plate while pushing it
off the frame by means of the slots in
the counter blade.
3. Remove the counter blades.
4. Check the condition of the counter-
blade-holders, repairing them as
necessary.
