ALLU D SERIES - ORIGINAL INSTRUCTION MANUAL - ALLU_6-M-DENG0615
64

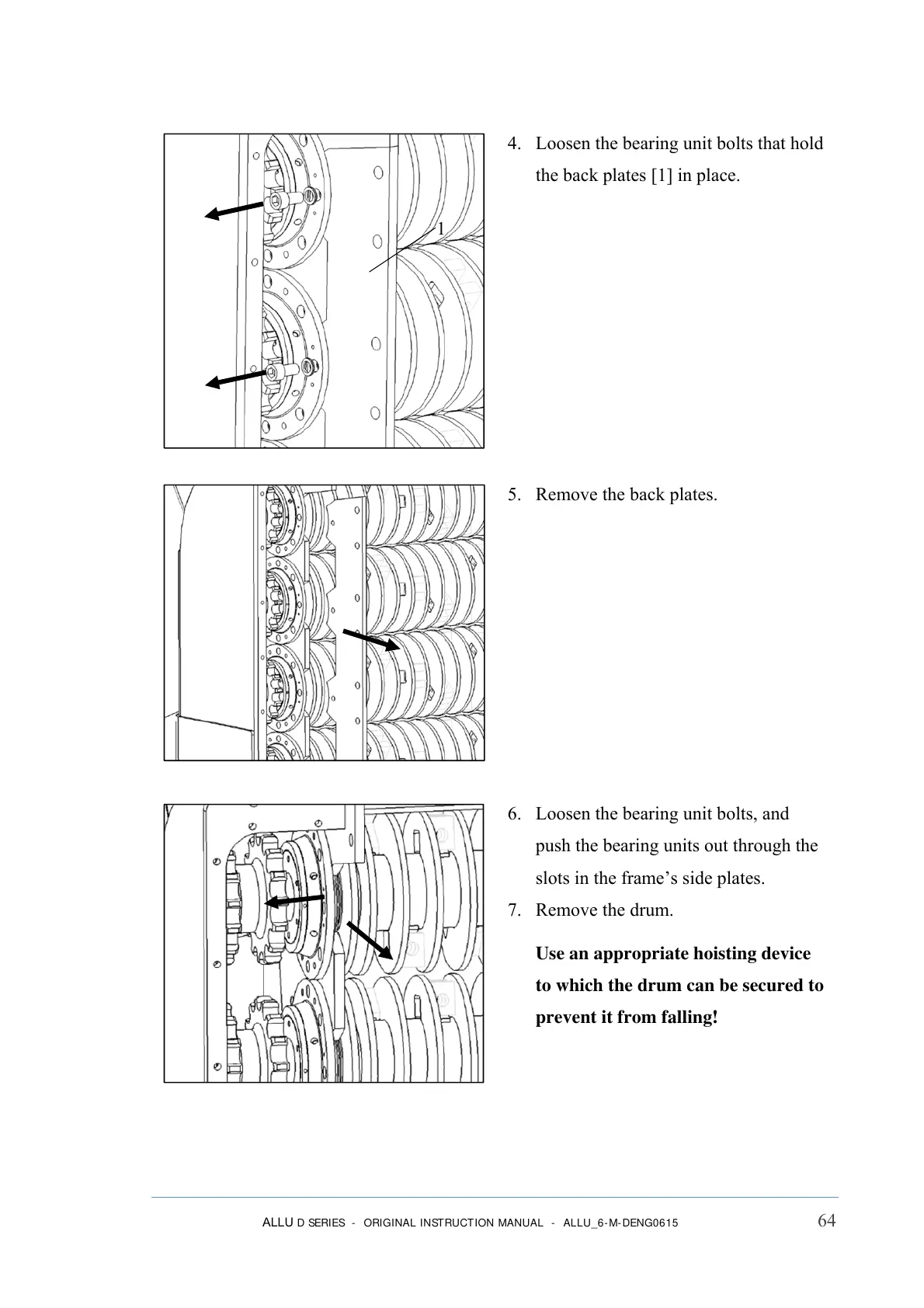

4. Loosen the bearing unit bolts that hold
the back plates [1] in place.
5. Remove the back plates.
6. Loosen the bearing unit bolts, and
push the bearing units out through the
slots in the frame’s side plates.
7. Remove the drum.
Use an appropriate hoisting device
to which the drum can be secured to
prevent it from falling!
1
