20
VM 623.0004 GB/07.00 – Ident–Nr. 550 298

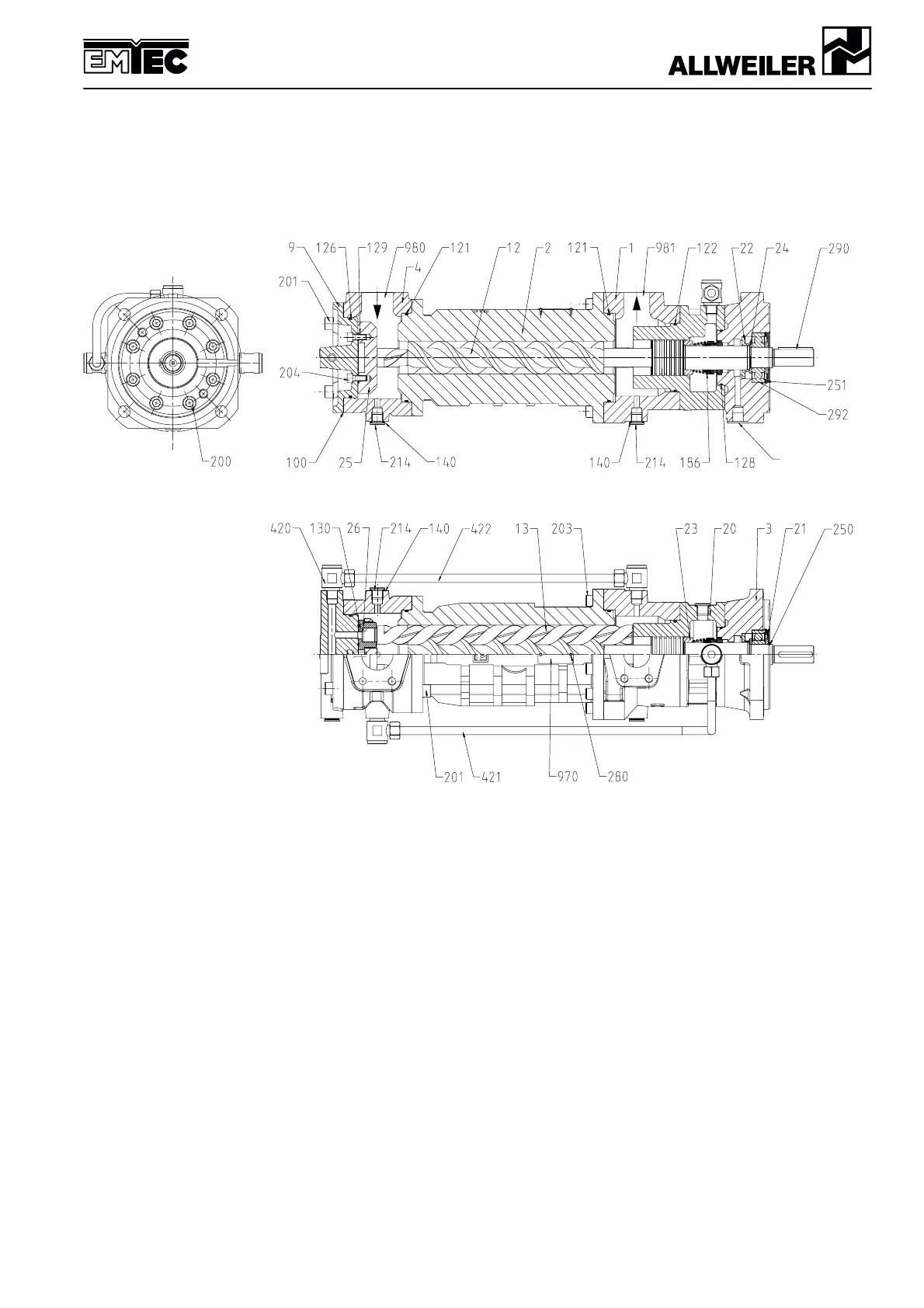

9.4 Sectional drawing, Pump sizes 80 – 660
EMTEC...D8.6 – Pump with suction and delivery casing, and threaded pipe connection, with shaft seal
Part No. Denomination
–––––––––––––––––––––––––––––––––
1 Delivery casing
2 Rotor housing
3 Pump cover, drive side
4 Suction casing
9 Pump cover, non–drive side
12 À Driving spindle
13 À Idler spindle
20 Intermediate cover
21 Labyrinth ring
22 Labyrinth ring
23 Spacer ring
24 Bottom ring
25 Thrust cover
26 À Balance bush
100 À Gasket
–––––––––––––––––––––––––––––––––
Part No. Denomination
–––––––––––––––––––––––––––––––––
121 À O–ring
122 À O–ring
126 À O–ring
128 À O–ring
129 À O–ring
130 À O–ring
140 À Joint ring
186 À Mechanical seal
200 Socket–head cap screw
201 Socket–head cap screw
203 Socket–head cap screw
204 Socket–head cap screw
205 Socket–head cap screw
214 Screw plug
250 Hexagon nut
–––––––––––––––––––––––––––––––––
Part No. Denomination
–––––––––––––––––––––––––––––––––
251 Hexagon nut
280 Rivet
290 Key
292 À Groove ball bearing
420 Screwed fitting
421 Pipe
422 Pipe
970 Name plate
980 Á Plug
981 Á Plug
À Spare parts/Replacement parts
–––––––––––––––––––––––––––––––––
Á Remove plugs before start–up
