HP 5 OPERATOR’S MANUAL
OPERATOR CONTROL FUNCTION
A combine has four distinct operations: feeding, threshing, separating, and cleaning. These
operations are interrelated to produce a good overall harvesting result. Because of these
relationships, the proper adjustment to fix a problem may not be obvious. What appears to be a
cleaning problem could actually be caused by feeding the machine too fast (a feeding problem).
Making adjustments quickly and correctly will allow efficient harvesting. Use this section to
familiarize yourself with the controls and the effects it will have on the machine. Use SECTION D
TROUBLESHOOTING to determine possible causes for harvesting difficulties and probable
solutions. All intended operators must be familiar with the functions of the machine for operator
safety and proper harvesting results.
14) FORWARD
REVERSE CONTROL
17) THRESHING
CYLINDER
TACHOMETER
11
)
LIGHTING
8
)
BRAKE
15
)
CLUTCH
5) OIL
PRESSURE
16)
THROTTLE
LEVER
13
)
CYCLONE
10) HYDRAULIC
ACCESSORY
9) HEAD LIFT
LEVER
12
)
ELECTRONIC ACCESSORY
7
)
IGNITION
6) HOUR METER
2
)
OIL TEMP
1) SERIAL TAG
4) FUEL GAUGE
3
)
VOLT METER

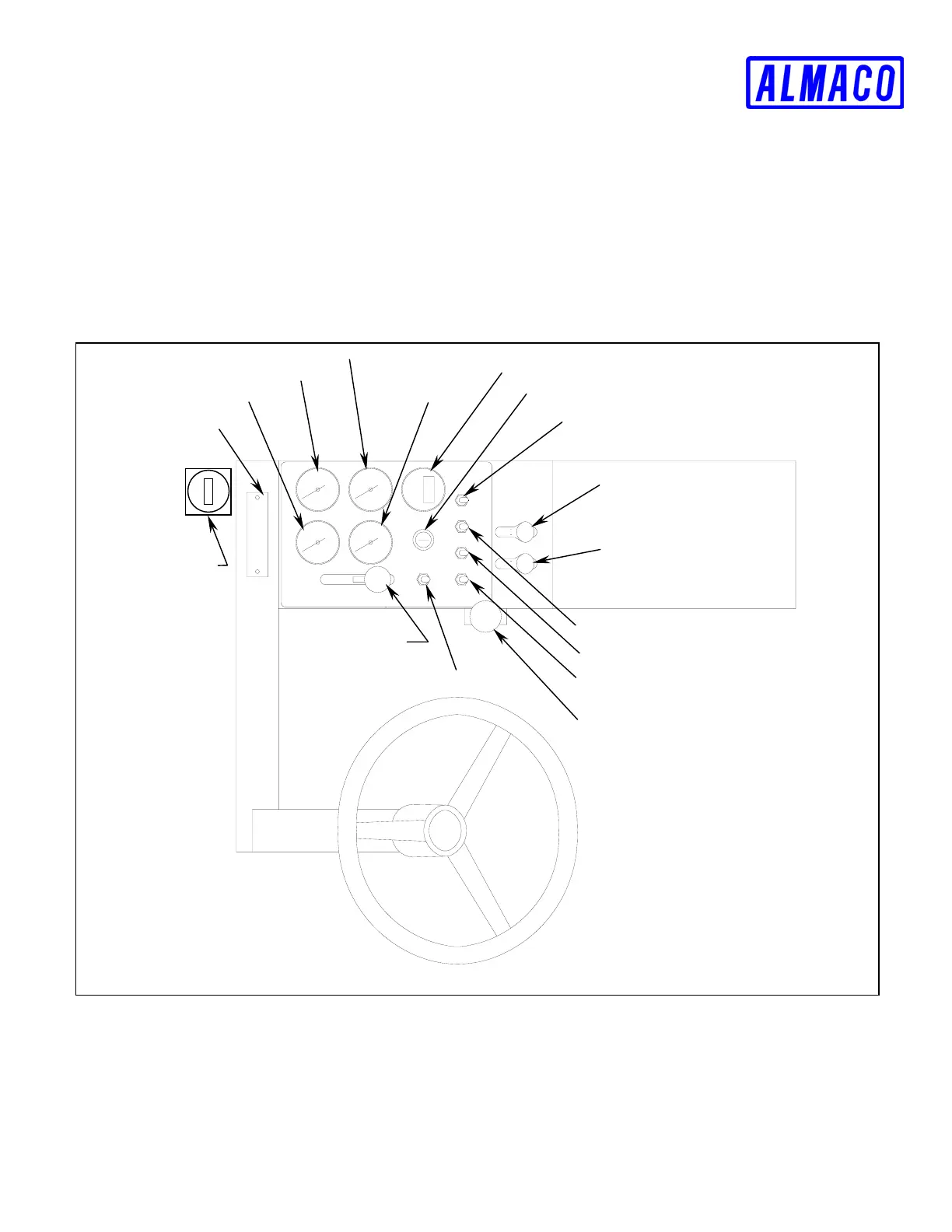

FIGURE C-3 Gauge Panel
1) Serial Tag:
This number identifies each combine and should be on hand for parts and service calls. This way
ALMACO can better service your combine and its specific options.
OPERATION C-5
