52 Electronic Balancing Tool EBT730/EBT731
5. Adjust the height and position of the telescopic stand so that the bottom part of the hood frame rests
against the cabinet opening, and the capture hood is horizontal to the cabinet (see Figure 28).

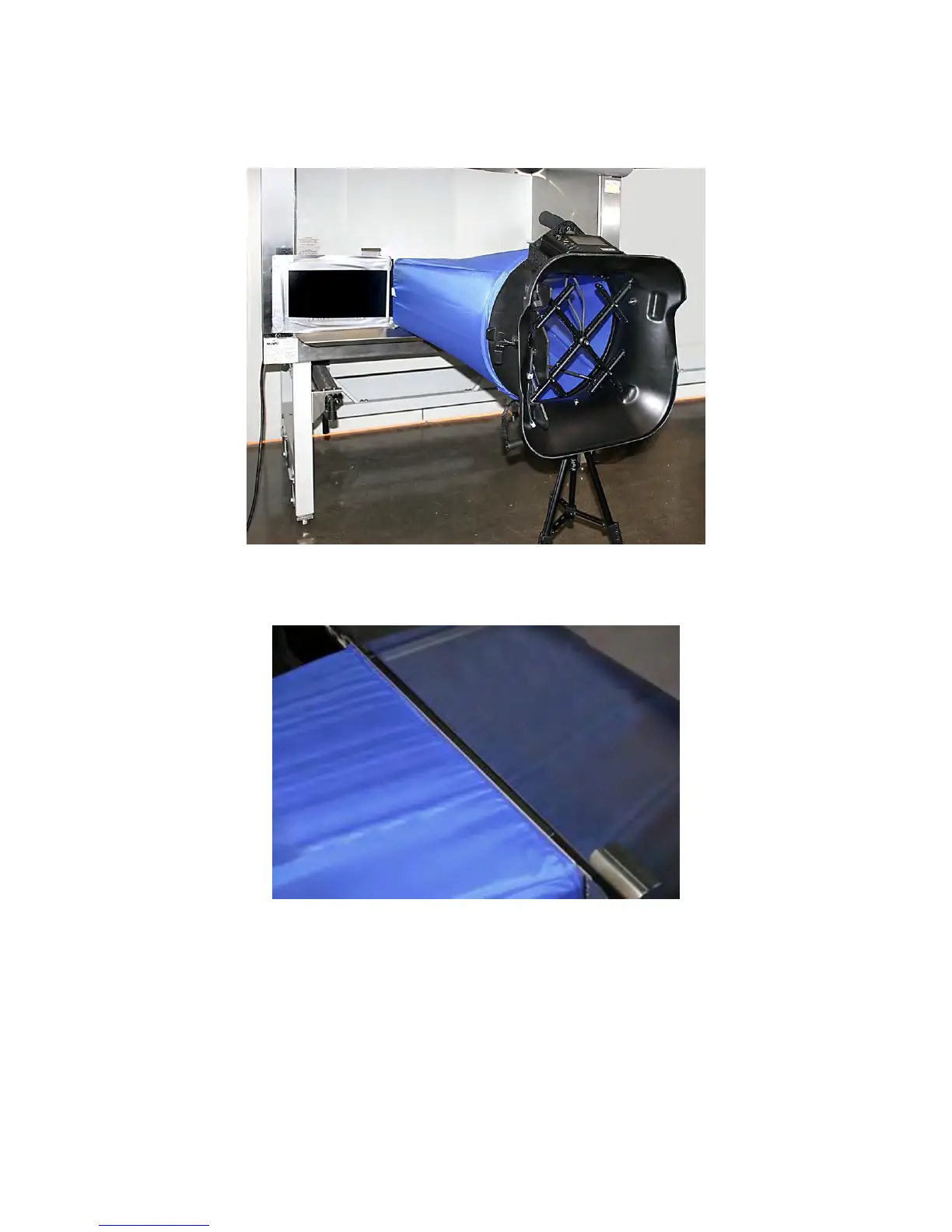

Figure 28: Adjust Height and Position of Telescopic Stand
6. Lower the sash of the cabinet until it rests on the foam lip of the hood frame (see Figure 29).
Figure 29: Lower Sash of Cabinet Until it Rests on Foam Lip of Hood Frame
