Chapter 5 Parameter Introductions
http://www.acdrive-china.com
127
Frequency set t ing signal
Reference Freq.(Hz)
Jump
frequency 1
Jump
frequency 2
Jump
frequency 3
Jump
frequency
bandwidth
Jump frequency
ban dwidt h
Jump frequency
bandwidt h

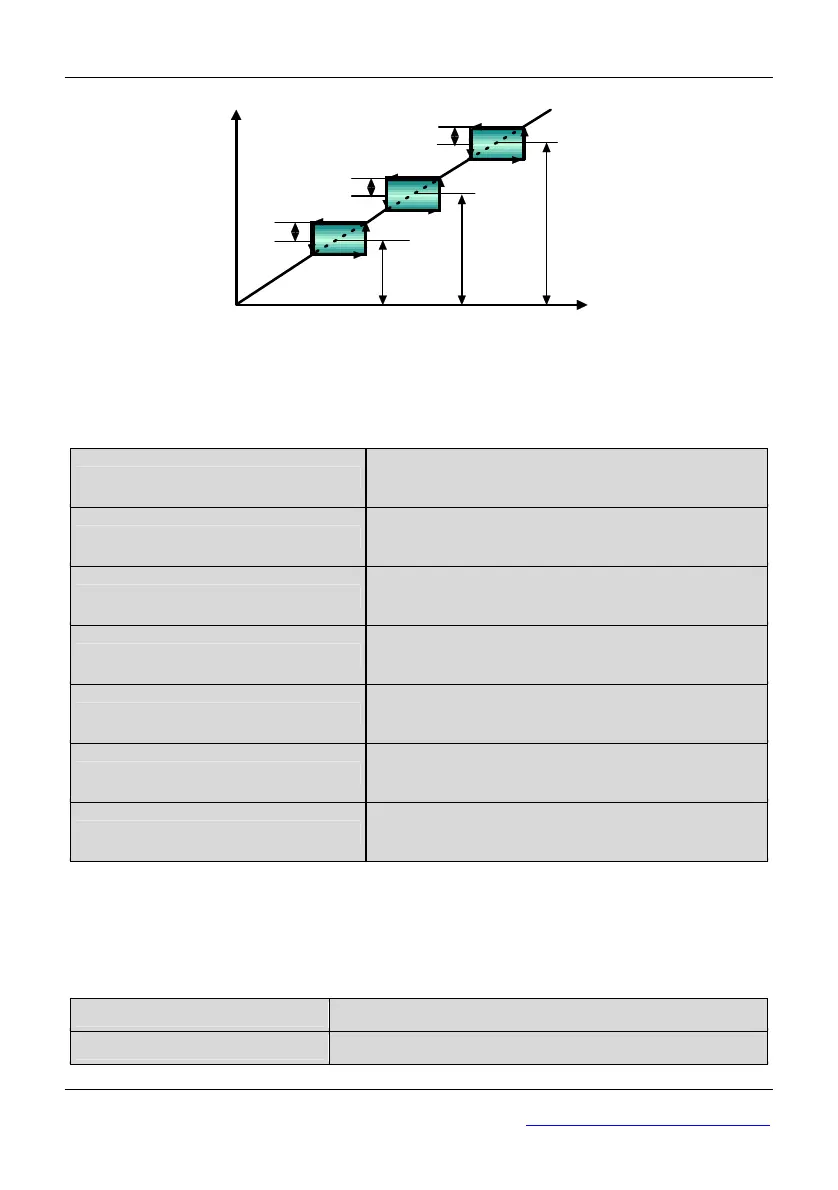

Fig. 5-2-5 Jump Frequency
◆The ac drive can set three jump frequency points, and the jump frequency bandwidth
can overlap or nesting. If overlapped, the range broadens. When all three jump
frequency set to 0.00 Hz, the jump function will be disabled.
P2.11 Multi-step frequency 1
Range: 0.00～Max frequency
【5.00Hz】
P2.12 Multi-step frequency 2
Range: 0.00～Max frequency
【10.00Hz】
P2.13 Multi-step frequency 3
Range: 0.00～Max frequency
【15.00Hz】
P2.14 Multi-step frequency 4
Range: 0.00～Max frequency
【20.00Hz】
P2.15 Multi-step frequency 5
Range: 0.00～Max frequency
【30.00Hz】
P2.16 Multi-step frequency 6
Range: 0.00～Max frequency
【40.00Hz】
P2.17 Multi-step frequency 7
Range: 0.00～Max frequency
【50.00Hz】
Note:
◆Define Multi-step frequency respectively, which can be used in Multi-step speed
running and simple PLC running.
◆If P0.03 is set to 3 to 5 (P0.03=3~5), P0.01 is set to 9 (PID), P2.11 defined the
analog PID amplitude.
P2.18 Acc time 2
Range: 0.1～3600s【6.0/20.0s】
P2.19 Dec time 2
Range: 0.1～3600s【6.0/20.0s】
