Chapter 5 Parameter Introductions
http://www.acdrive-china.com
134
36: Forced outage normally close
◆The ac drive stops according to Dec time 4, and decided by P1.08 (stop mode).
Operation Freq.(Hz)
UP/DOWN
reference Initial
Run Command
UP command
DOWN Command
Stop command
UP/DN reference amplitude

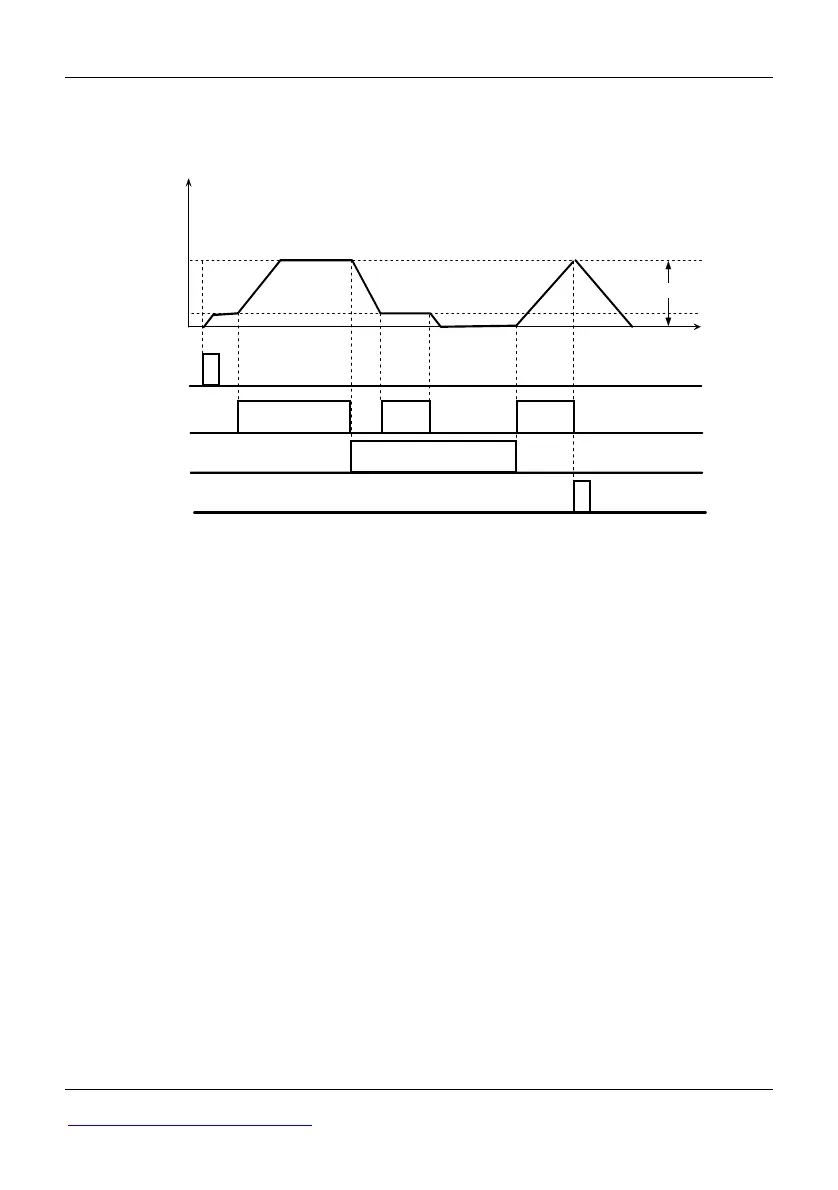

Fig. 5-3-4 UP/DOWN non-combination operation diagram
15: DC injection braking
◆If the function of terminal is defined as set DC injection braking, the terminal can be
used to perform DC injection braking. DC injection braking frequency at start, DC
injection braking time at start and DC injection braking current are defined by
P1.09~P1.11. Braking time is the max of P1.12 and the last time during which the DC
injection braking control terminal is active. As shown in Fig. 5-3-5.
