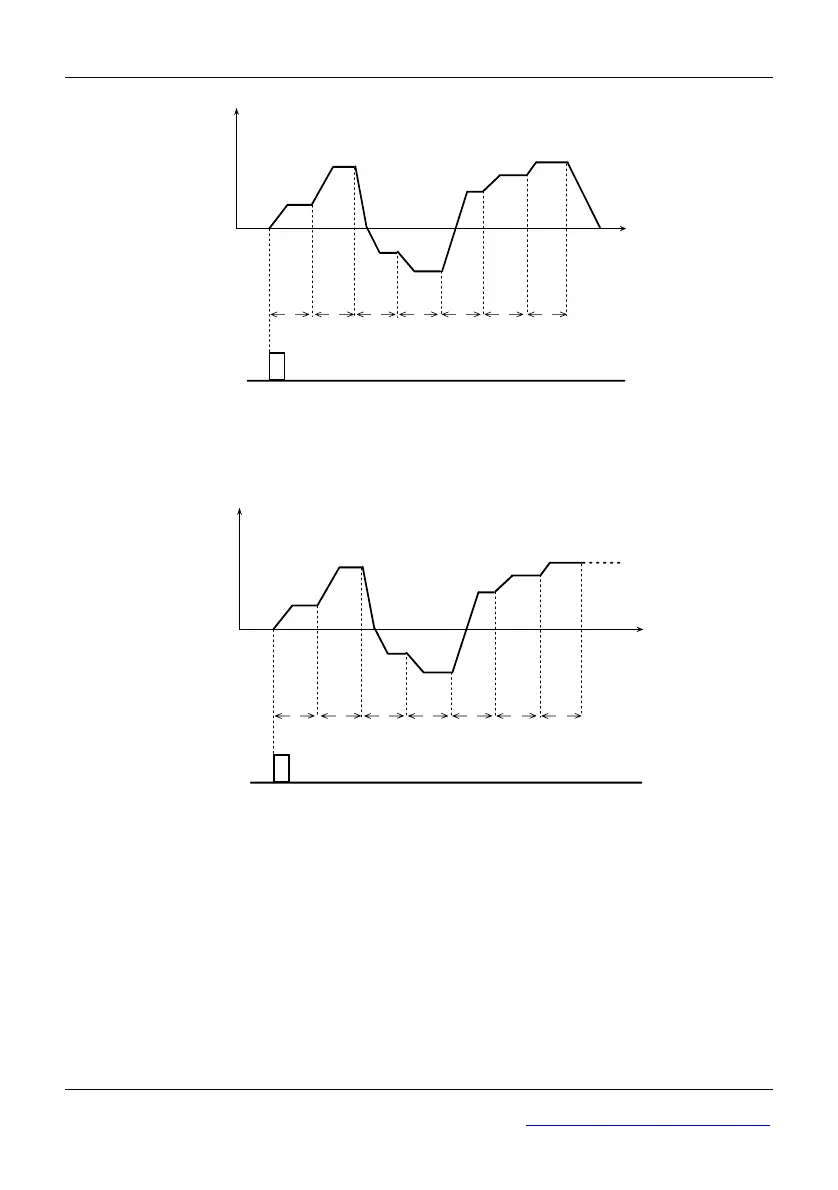

Fig. 5-5-1 Stop mode after single cycle of PLC
◆Single cycle 2 (holding the final value)
The ac drive will hold the operating frequency and direction of last step after
completing one cycle of operation. As shown in Fig. 5-5-2.
T1 T2 T3 T4 T5 T6 T7
Run Command
f1
f2
f3
f4
f5
f6
f7
Operation Freq.(Hz)
Time
Fig. 5-5-2
Holding the frequency after single cycle
◆Continuous operation
The ac drive will start next cycle of operation automatically after completing one
cycle of PLC operation until receiving stop command. As shown in Fig. 5-5-3.
To Next Page
