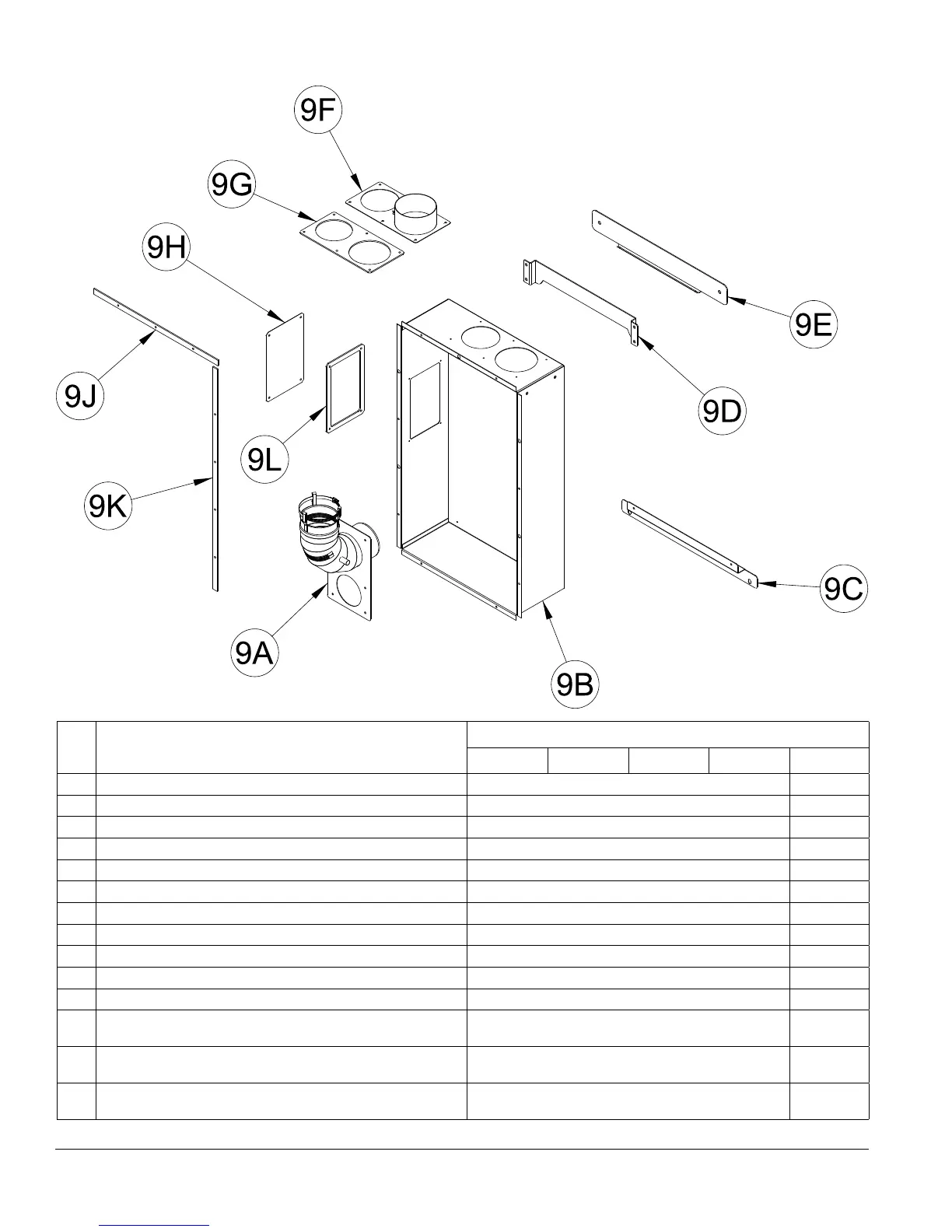

144 103448-07- 1/16
Key
No.
Description
Part Number
ALP080B ALP105B ALP150B ALP210B ALP285B
9A Vent Elbow w/Flue Sensor Port 102878-01 N/A
9B Rear Air Box 102867-01 N/A
9C Bottom Securing Bracket 102870-01 N/A
9D Hanging Bracket, Boiler 102868-01 N/A
9E Hanging Bracket, Wall 102869-01 N/A
9F Air Collar Plate Assembly 102871-02 N/A
9G Air Collar Plate Gasket 102876-01 N/A
9H Access Panel, Rear Air Box 102873-01 N/A
9J Horizontal Strip Gasket - Two (2) pcs per assembly required 102875-01 N/A
9K Vertical Strip Gasket - Two (2) pcs per assembly required 102874-01 N/A
9L Access Panel Gasket 102877-01 N/A
1/4-20 x 5/8 Hex Head Cap Screw (Not Shown) -
Four (4) pcs per assembly required
80861312 N/A
1/4-20 Hex Nut w/Lock (Not Shown) -
Four (4) pcs per assembly required
80860456 N/A
Sheet Metal Screw, #8 x 1/2”, Black Oxide (Not Shown) -
Sixteen (16) pcs per assembly required
80860061 N/A
XIII. Repair Parts (continued)
To Next Page
