60 103448-07- 1/16

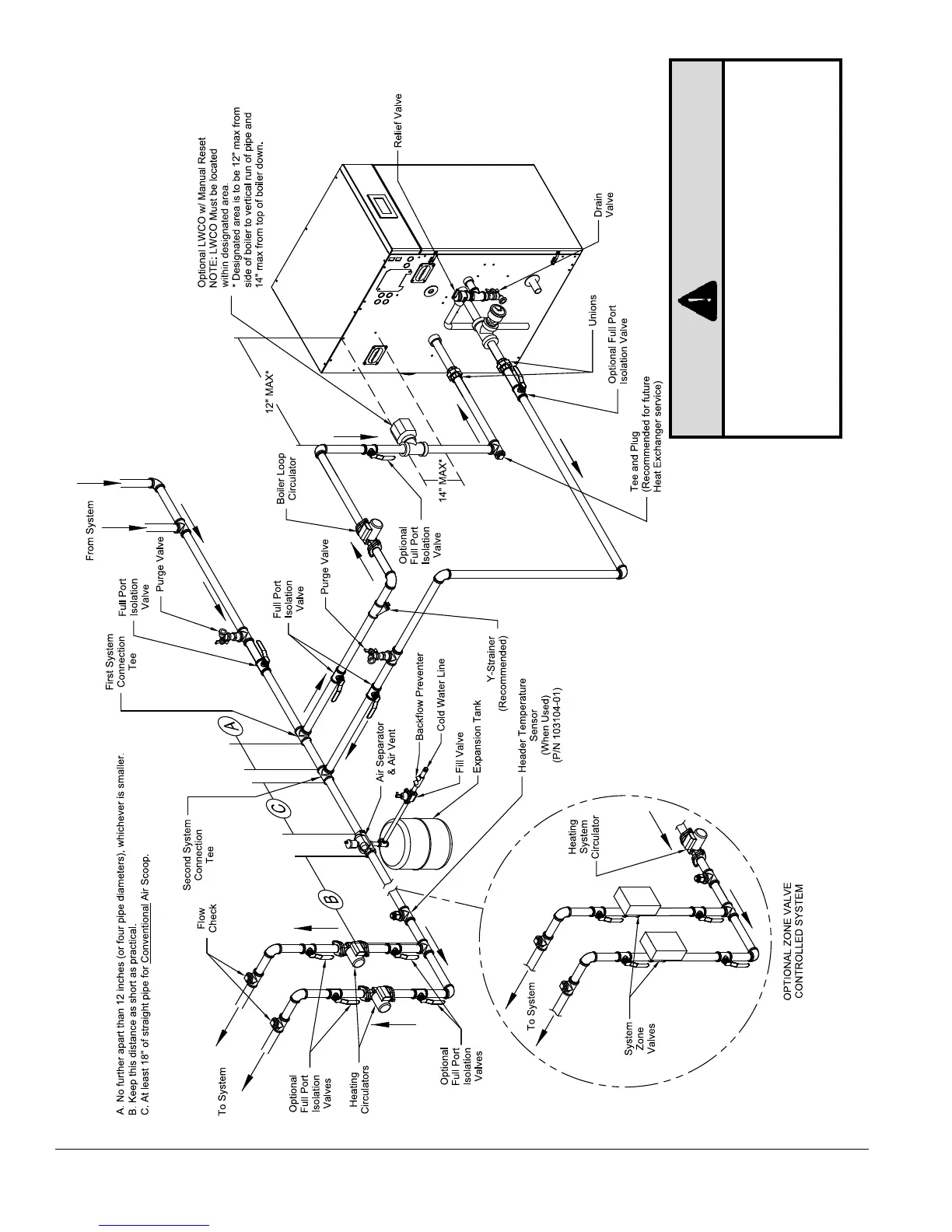

Figure 21: Near Boiler Piping - Heating Only

VI. Water Piping and Trim C. Standard Installation Requirements (continued)

CAUTION

It is the installers responsibility to select pumps

and boiler piping congurations that provide the

proper ow rates and performance for the boiler

and indirect water heater.

Refer to Table 13 for recommended Boiler Loop

Circulator.

Alpine ALP150B - Diagram - Near Boiler Piping - Heating Only
