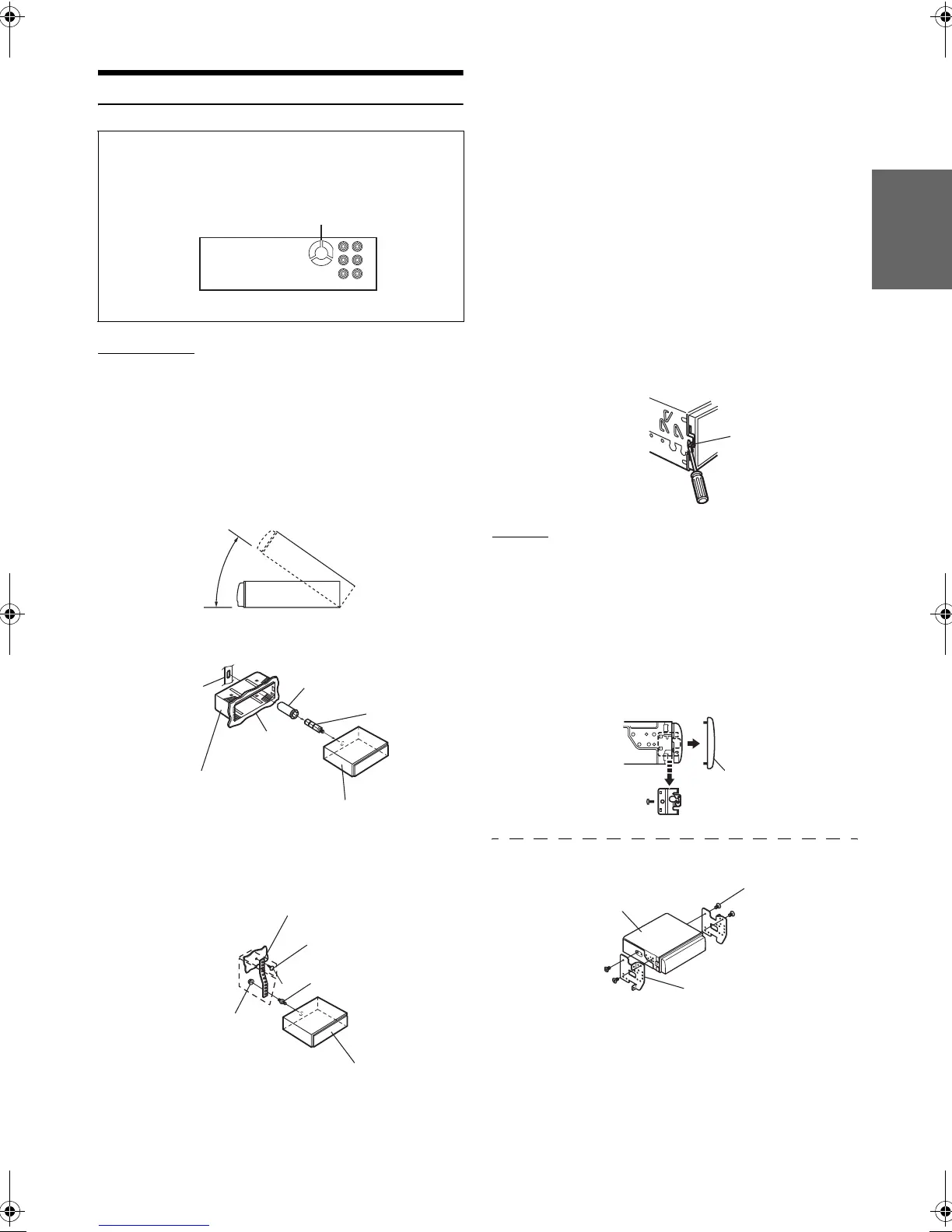

Installation
Accessory List
• Head unit .............................................................................1
• Power cable .........................................................................1
• Mounting sleeve...................................................................1
• Carrying case ......................................................................1
• Rubber Cap .........................................................................1
• Hex Bolt ...............................................................................1
• Screw (M5 × 8) ....................................................................4
• Owner’s Manual.............................................................1 set
• The main unit must be mounted within 35 degrees of the horizontal
plane, back to front.
Removal
1. Remove the detachable front panel.
2. Use a small screwdriver (or similar tool) to push the
locking pins to the “up” position (see above drawing).
As each pin is unlocked, gently pull out on the unit to
make sure it does not re-lock before unlocking the
second pin.
3. Pull the unit out, keeping it unlocked as you do so.
<JAPANESE CAR>
Caution
Do not block the unit’s fan or heat sink, thus preventing air
circulation. If blocked, heat will accumulate inside the unit and
may cause a fire.
1
Slide mounting sleeve from main unit (see
“Removal” on page 29). Slide the mounting sleeve
into the dashboard and fix it with the metal shackles.
2
(Rear of CDA-9857R/CDA-9856R)
Air ventilation hole
Less than 35°
Bracket
Rubber Cap
(Included)
Hex Bolt
(Included)
this unit
Dashboard
Mounting sleeve
(Included)
∗
Metal Mounting Strap
Screw
Bolt Stud
this unit
Hex Nut (M5)
When your vehicle has the Bracket, mount the long
hex bolt onto the rear panel of the CDA-9857R/
CDA-9856R and put the Rubber Cap on the hex bolt.
If your vehicle does not have the Mounting Support,
reinforce the head unit with the metal mounting
strap (not supplied). Connect all the leads of the
CDA-9857R/CDA-9856R according to details
described in the CONNECTION section.
• For the screw *, provide a proper screw to the chassis installing
location.
3
Slide the CDA-9857R/CDA-9856R into the
dashboard. When the unit is in place, make sure the
locking pins are fully seated in the down position.
This can be done by pressing firmly in on the unit
while pushing the locking pin down with a small
screwdriver. This ensures that the unit is properly
locked and will not accidentally come out from the
dashboard. Install the Detachable Front Panel.
Lock pin
Front Frame
Screws (M5 × 8)
(Included)
this unit
Mounting Bracket
