23-EN
Notes
• HPF (high pass filter): Cuts the lower frequencies and allows the higher
frequencies to pass.
• LPF (low pass filter): Cuts the higher frequencies and allows the lower
frequencies to pass.
• Slope: The level change (in dB) for a frequency change of one octave.
• The higher the slope value, the steeper the slope becomes.
• Adjust the slope to FLAT to bypass the HP or LP filters.
• Do not use a tweeter without the HPF on or set to a low frequency, as it
may cause damage to the speaker due to the low frequency content.
• You cannot adjust the crossover frequency higher than the HPF or lower
than the LPF.
• Adjustment should be made according to the recommended crossover
frequency of the connected speakers. Determine the recommended
crossover frequency of the speakers. Adjusting to a frequency range
outside that recommended may cause damage to the speakers.
For the recommended crossover frequencies of Alpine speakers, refer to
the respective Owner’s Manual.
We are not responsible for damage or malfunction of speakers caused by
using the crossover outside the recommended value.
Displaying the Text
Text information, such as the disc name and the track name, will be
displayed if playing a CD text compatible disc. It is also possible to
display the folder name, the file name and the tag, etc., while playing
MP3/WMA/AAC files.
Press VIEW.
The display will change every time the button is pressed.
Note
• When the TEXTSCROLL is set to MANUAL, press and hold VIEW for
at least 2 seconds, the current text will be scrolled one time (except
Radio mode).
The display in Radio mode:
If there is PS (Programme Service Name)
BAND/PS (Programme Service Name) ARTIST/SONG
PTY (Programme Type)/PS (Programme Service Name)
RADIO TEXT BAND/CLOCK
BAND/PS (Programme Service Name)
If there is no PS (Programme Service Name)
BAND/FREQUENCY ARTIST/SONG
PTY (Programme Type)/FREQUENCY RADIO TEXT
BAND/CLOCK BAND/FREQUENCY
The display in CD mode:
TRACK NO./ELAPSED TIME DISC TEXT
*1
/TRACK TEXT
*1
TRACK NO./CLOCK TRACK NO./ELAPSED TIME
The display in MP3/WMA/AAC mode:
(FOLDER NO./)
*2
FILE NO./ELAPSED TIME
FOLDER NAME/FILE NAME ARTIST NAME
*3
/SONG NAME
*3
ALBUM NAME
*3
/SONG NAME
*3
(FOLDER NO./)
*2
FILE NO./CLOCK
(FOLDER NO./)
*2
FILE NO./ELAPSED TIME
The display in BLUETOOTH Audio mode:
BT AUDIO/ELAPSED TIME
*4
ARTIST NAME
*3
/SONG NAME
*3
ALBUM NAME
*3
/SONG NAME
*3
BT AUDIO/CLOCK
BT AUDIO/ELAPSED TIME
*1 Displayed during playback of a disc with CD text. If there is
no Text (Disc Name or Track Name), “DISC TEXT”/
“TRACK TEXT” is displayed.
*2 Only for MP3/WMA/AAC disc mode.

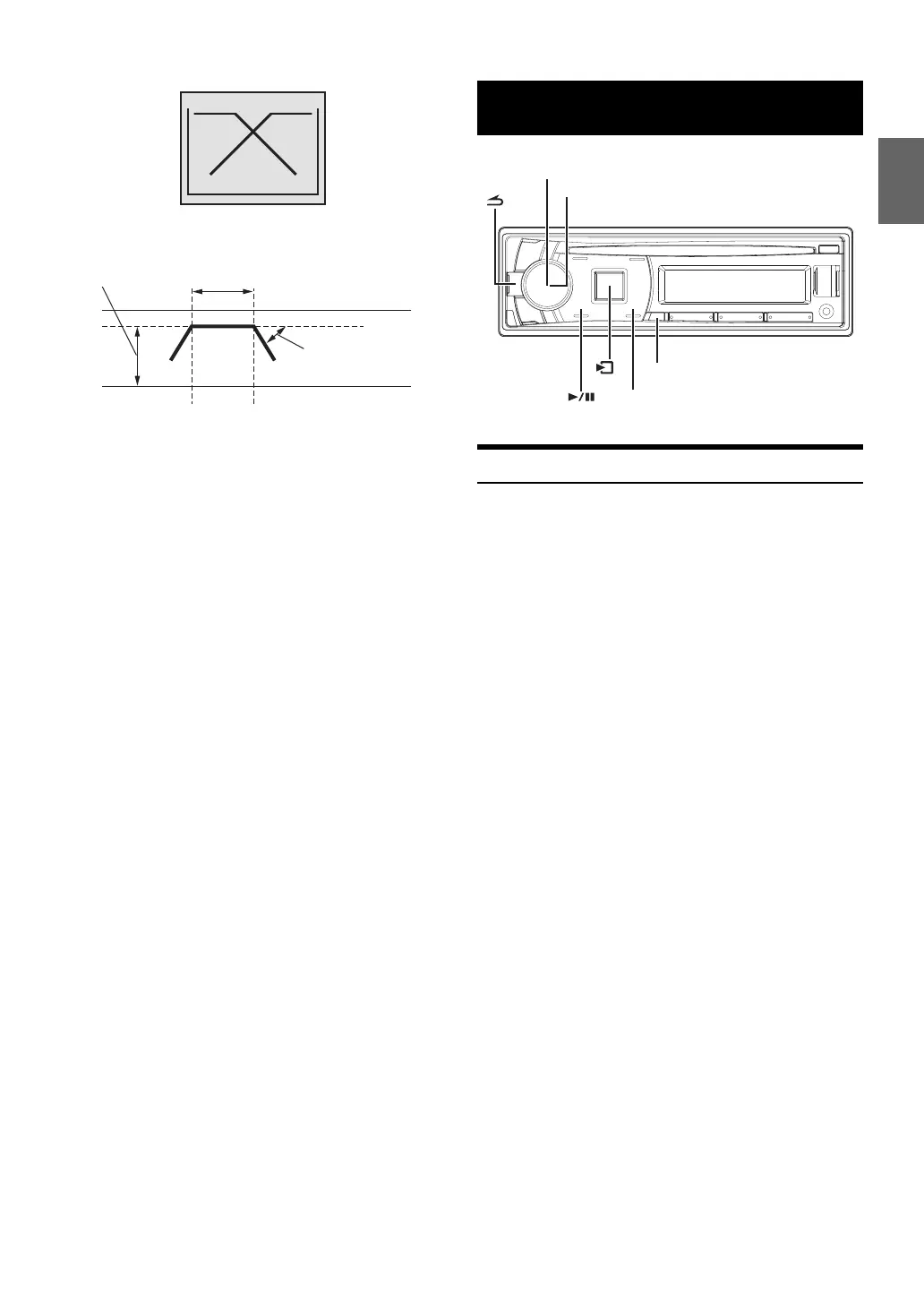

Low range
High range
(Dierent from actual display)
Level adjusting
(0 to −12 dB)
Output frequency range
Slope FLAT
Slope adjusting
20 Hz
(Dierent from actual display)
HPF cut-o
frequency
LPF cut-o
frequency
Other Functions
BAND
VIEW
/ENTER/OPTION
SOURCE
Rotary encoder
