Accessory List
• Head Unit ..................................................................................1
• Power Cable ..............................................................................1
• Microphone ..............................................................................1
• Mounting Sleeve ......................................................................1
• Carrying Case............................................................................1
• Rubber Cap ...............................................................................1
• Hex Bolt.....................................................................................1
• Screw (M5 × 8) ..........................................................................4
• Owner’s Manual..................................................................1 set
Turning Power On and Off
Press t to turn on the unit.
Notes
• The unit can be turned on by pressing any other button except and
e (Release).
• VSOURCE key blinks each time when the unit is powered on.
Press and hold t for at least 2 seconds to turn off the
unit.
Note
• The first time power is turned on, the volume will start from level 12.
Source Selection
Press VSOURCE to change the source.
TUNER DISC USB AUDIO
*1
/iPod
*2
BT AUDIO
*3
VTUNER
*4
AUXILIARY
*5
TUNER
*1 Displayed only when no iPod/iPhone is connected.
*2 Displayed only when the iPod/iPhone is connected.
*3 Displayed only when BT IN is set to ON, refer to “Setting the
BLUETOOTH Connection (BT IN)” on page 30.
*4 Displayed only when ALPINE APP is set to USB, refer to
“Setting the communication mode with a Smartphone (ALPINE
APP)” on page 29.
*5 Refer to “Using the Front AUX Input Terminal” on page 24.
Detaching and Attaching the Front Panel
1
Turn off the unit power.
2
Press e (Release) at the lower left side until the front
panel pops out.
3
Grasp the left side of the front panel and pull it out.
Notes
• The front panel may become hot in normal usage (especially the
connector terminals on the back of the front panel). This is not a
malfunction.
• To protect the front panel, place it in the supplied carrying case.
• When detaching the front panel, do not apply excessive force as it may
result in malfunction.
1
Insert the right side of the front panel into the main unit.
Align the groove on the front panel with the projections
on the main unit.
2
Push the left side of the front panel until it locks firmly into
the main unit.
Notes
• Before attaching the front panel, make sure that there is no dirt or dust
on the connector terminals and no foreign object between the front
panel and the main unit.
• Attach the front panel carefully, holding the sides of the front panel to
avoid pushing buttons by mistake.

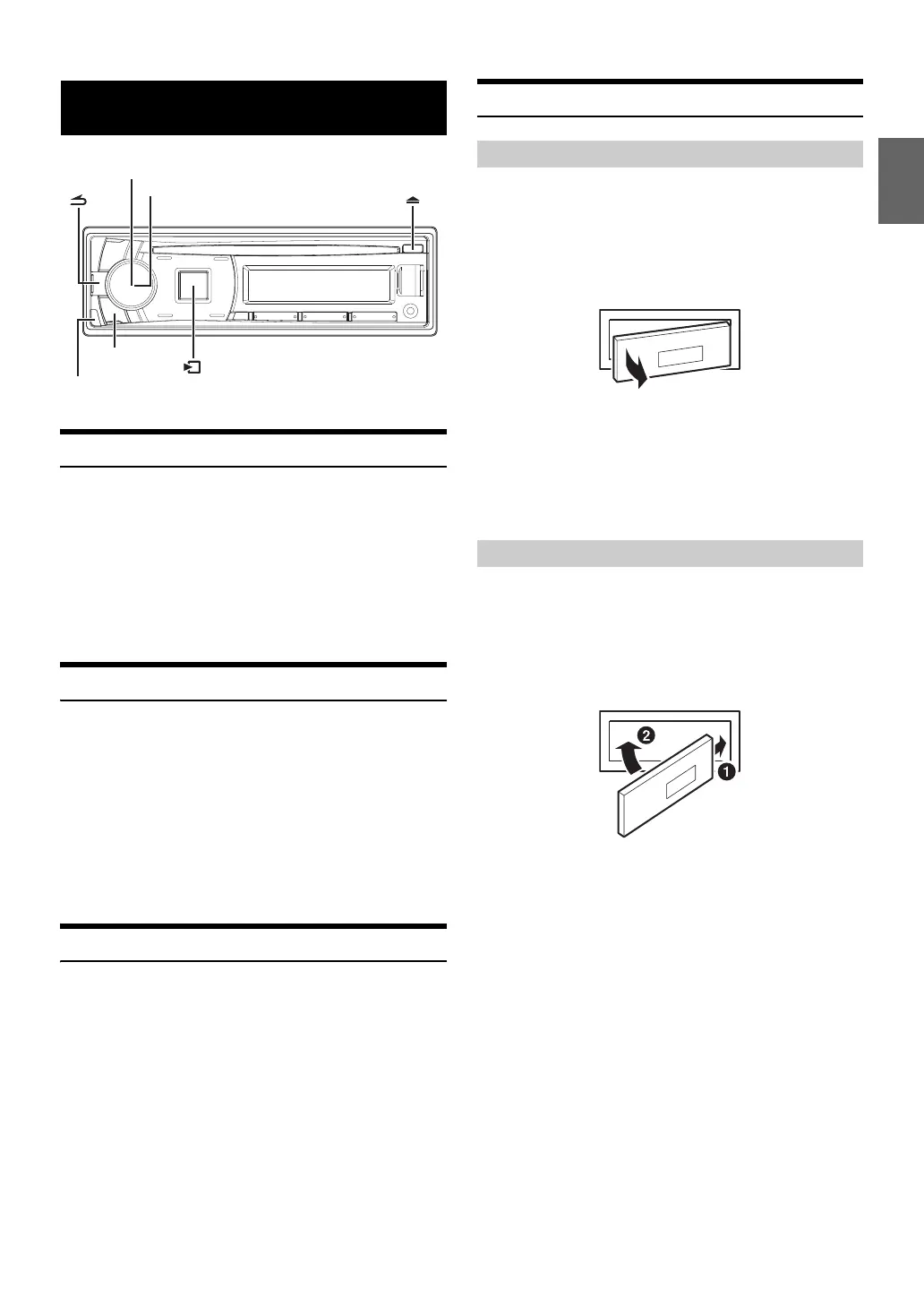

Getting Started
AUDIO/SETUP
e
/ENTER
SOURCE
/
Rotary encoder
Detaching
Attaching
