Alpine S-A55V User Manual

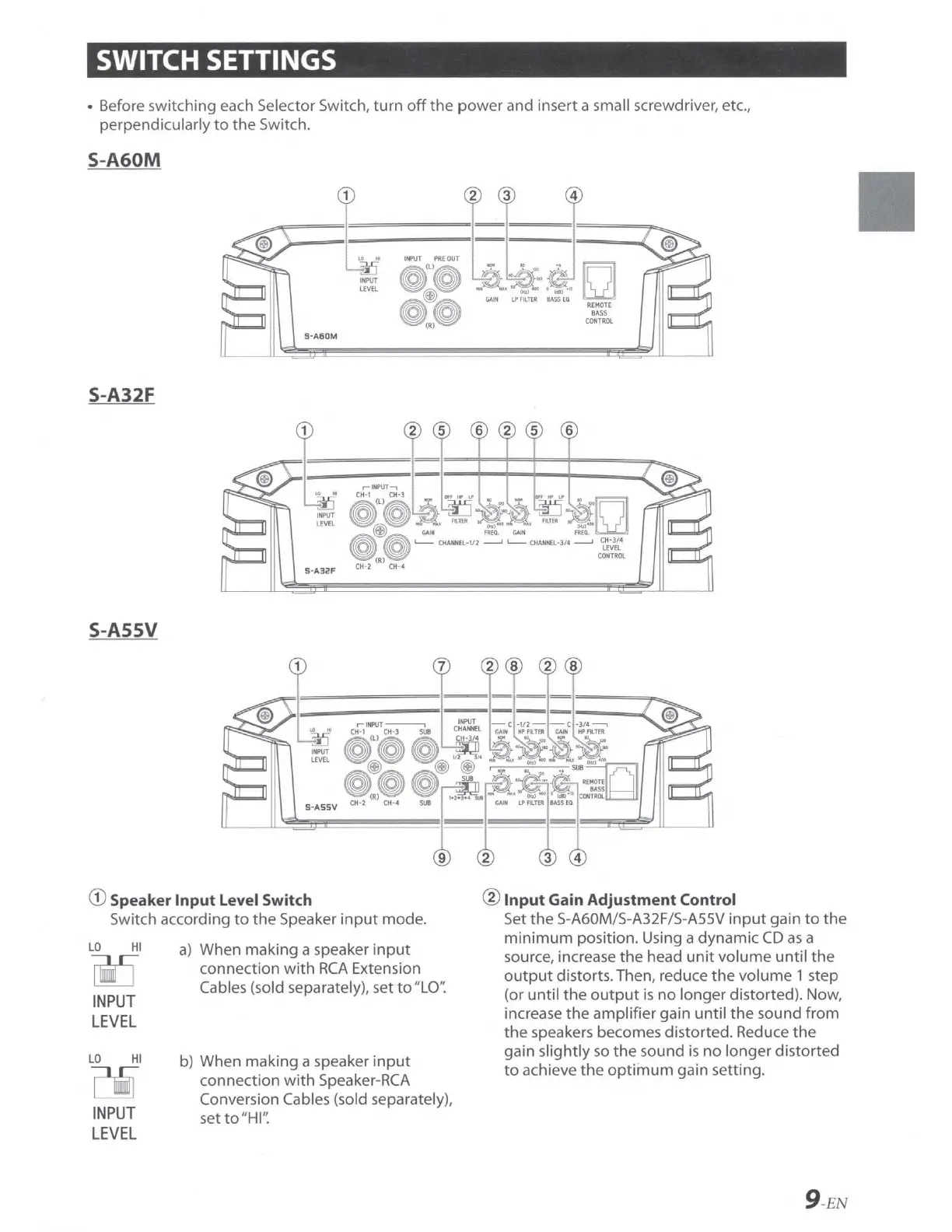

SWITCH SETTINGS
• Before switching each Selector Switch, turn off the power and insert a small screwdriver, etc.,
perpendicularly to the Switch.
S-A60M
S-A32F
S-ASSV
fi
==i-i-i-i-----<..
r- lhf1JT ----, INPUT - C -1/ 2 - - C · 3/ 4--,
11
CH · I CH -3 SUB CHANtEL GAIN .. Fl. TER GA»! HP FL rat
~ oro o v~ . ~~~~
@) @) @) "" -""'"'~:-,
... ., ,.~ ~ rr , ,==~j~".Jj____ll
G) Speaker Input Level Switch @ Input Gain Adjustment Control
Switch according to the Speaker input mode.
LO HI
INPUT
LEVEL
LO HI
LiJ
INPUT
LEVEL
a) When making a speaker input
connection with RCA Extension
Cables (sold separately), set to "LO ' '.
b) When making a speaker input
connection with Speaker-RCA
Conversion Cables (sold separately),
set to"HI' '.
Set the S-A60M/S-A32F/S- ASSV input gain to the
minimum position. Using a dynamic CD as a
source, increase the head unit volume until the
output distorts. Then, reduce the volume 1 step
(or until the output is no longer distorted). Now,
increase the amplifier gain until the sound from
the speakers becomes distorted. Reduce the
gain slightly so the sound is no longer distorted
to achieve the optimum gain setting.
9-EN

Alpine S-A55V Specifications

General

Amplifier class	D
High pass filter	Yes
High pass filter range	50 - 400 Hz
RMS output power (max)	1100 W
Signal-to-Noise Ratio (SNR)	98 dB
Number of amplifier channels	5 channels
Total Harmonic Distortion (THD)	1 %
RMS power output per channel (2 Ohm)	60 W
RMS power output per channel (4 Ohm)	40 W
Maximum power output per channel (4 Ohm)	200 W
Audio RCA inputs	6
Product color	Black

Weight and Dimensions

Weight	2900 g
