Alpine S-A55V User Manual

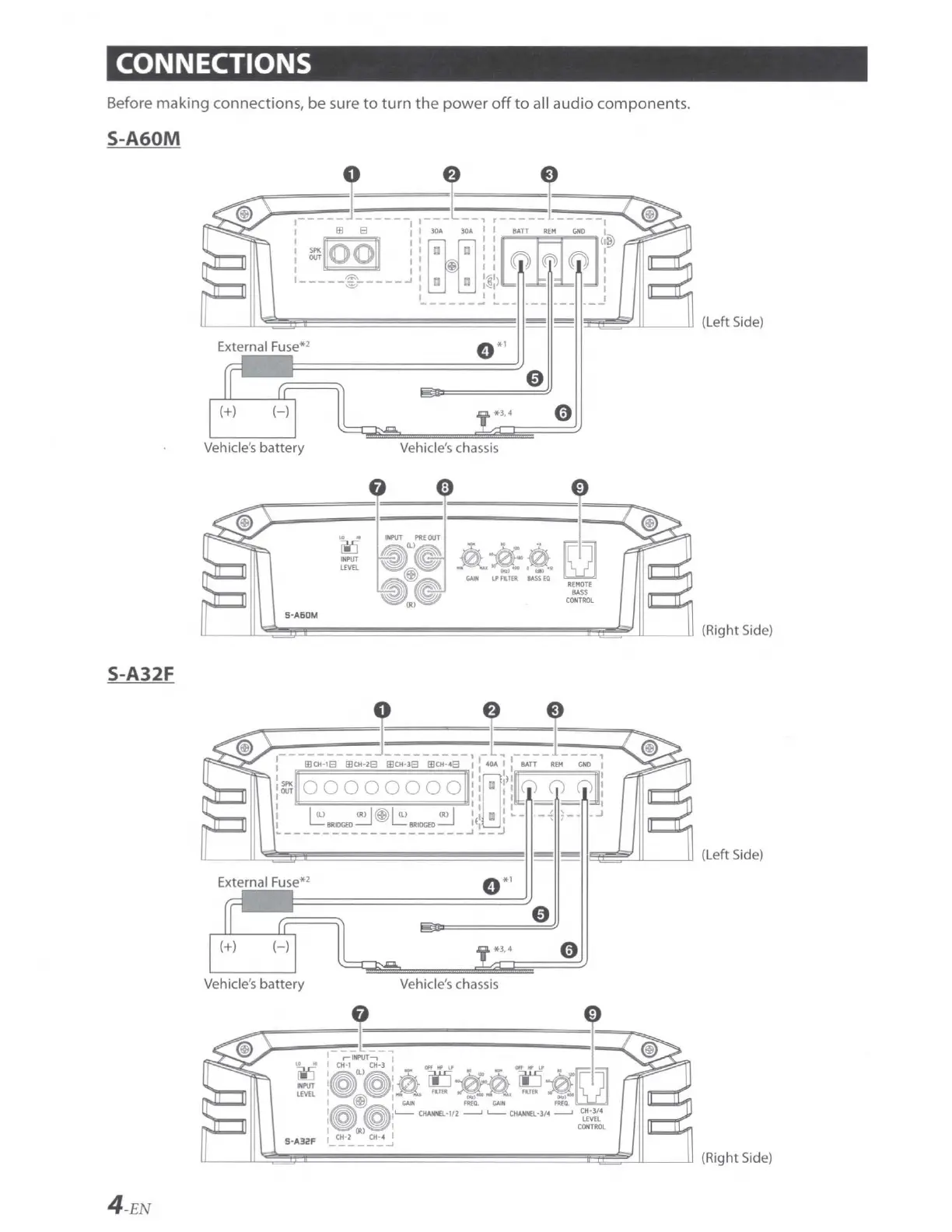

CONNECTIONS
Before making connections, be sure to turn the power off to a ll audio components.
S-A60M
~ .---- t - --- .. -* --. ____ l --
: ~110011 ! i 00:.: ! l~l:l;,;T
_____ q:- _____ J • a a ,''e'l •
'=" I -.:::1 I
"------~ - -- --- __ J
External Fuse*
2
O *'
0
*3,4 0
Vehicle's battery Vehicle's chassis
S-A32F
-- ___ J ________ , l __ J_~ ---,
: E!ICH·18 E!ICH· 28 E!ICH·38 E!ICH· 48 I I 4 0A I : OATT oa, GHO I -.------,
j~llo o o o o o o oll!j~:)
1
[(.)_Q_(.)]!
1
l<u <R>l~l(L> <R>I •,a•~--~,-- ...1
I LBRIOCEl> ..::::J LBRIOCEl>..::::J lfl I
~-------------------...1--J
External Fuse*
2
O *'
0
*3,4 0
Vehicle's battery Vehicle's chassis
4 -EN

Alpine S-A55V Specifications

General

Amplifier class	D
High pass filter	Yes
High pass filter range	50 - 400 Hz
RMS output power (max)	1100 W
Signal-to-Noise Ratio (SNR)	98 dB
Number of amplifier channels	5 channels
Total Harmonic Distortion (THD)	1 %
RMS power output per channel (2 Ohm)	60 W
RMS power output per channel (4 Ohm)	40 W
Maximum power output per channel (4 Ohm)	200 W
Audio RCA inputs	6
Product color	Black

Weight and Dimensions

Weight	2900 g
