ALSA EXCELL MCDSe Series - Calibration of the Maximum Power Stage Mosfets Current for each Function

Excell MCDSe series
Rel. 1
alsa apparecchi medicali srl 10
60601-2-2 – art. 6.8.3 Technical Description, point cc). By switching each single function on, and by
operating on the buttons of power increase/decrease, it is possible to adjust the maximum value of the peak

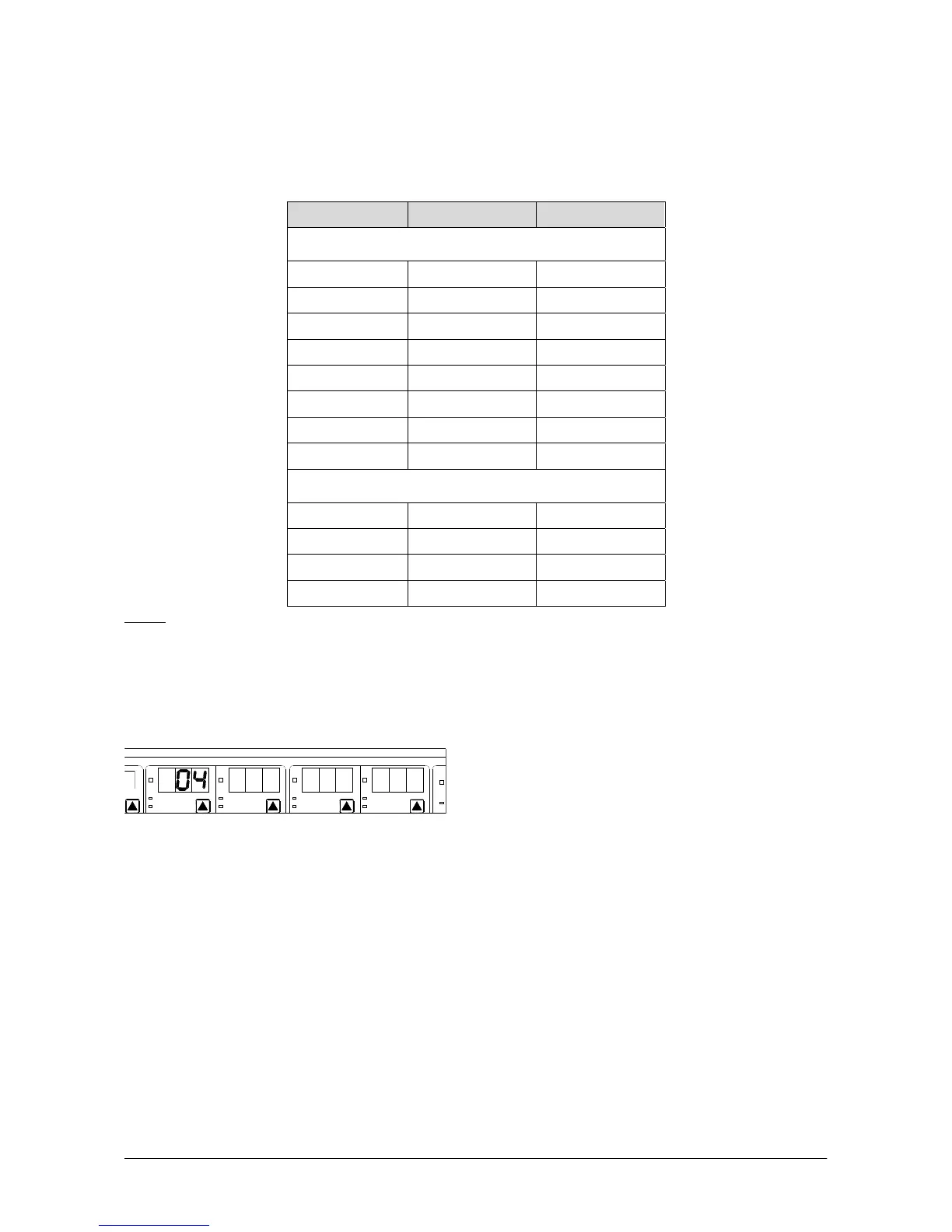

voltage. The values of these voltages are illustrated in the following Table:
Function Minimum Value Maximum Value
Monopolar Functions
Pure 3300* 3600
Blend 1 3400 3650
Blend 2 7600 7700
Endo 1600 1900
Fulg Forced 4500 4800
PinPoint Contact 3400 3500
Soft 3400 3500
Spray 7500 7800
Bipolar Functions
Pure 700 840
Blend 880 980
Micro 400 430
Macro 700 760
NOTE: Into the Table, the bipolar function of MICRO AUTO does not appear because it delivers the same
voltage as the function MICRO.
CALIBRATION OF THE MAXIMUM POWER STAGE MOSFETS CURRENT FOR EACH
FUNCTION
Press the CAL button; when the displays blink, set the monopolar Cut section, as shown into the Figure:
MONOPOLAR BIPOLAR
R
AM
PURE
BLEND-1
FULG FORCED
PIN POINT CONTACT
PURE
BLEND
MICRO CV
MICRO HC
Press the CAL button in order to interrupt the displays blinking.
The calibration of the maximum current must be performed in each single function, by setting its maximum
level. During the activation, operate on the buttons of power increase/decrease, in order to obtain the current
values indicated in the following Table:
