Maintenance
Control of contact densimeter thresholds
P51--1001EN/03
2/8
07--2012
© ALSTOM 2010. All rights reserved. Information contained in this document is indicative only. No representation or warranty is given or should be
relied on that it is complete or correct or will apply to any particular project. This will depend on the technical and commercial circumstances. It is
provided without liability and is subject to change without notice. Reproduction, use or disclosure to third parties, without express written authority, is
strictly prohibited.
GRID
Preparing the densimeter
Introduction
The densimeter is at the base of the circuit--breaker pole. It is linked to the
circuit--breaker’ s volume of SF
6
gas (or SF
6
+CF
4
).
To check the contact densimeter’s thresholds, it is mandatory to isolate the
densimeter’s volume from the pole’s volume of SF
6
gas (or SF
6
+CF
4
).
Instructions

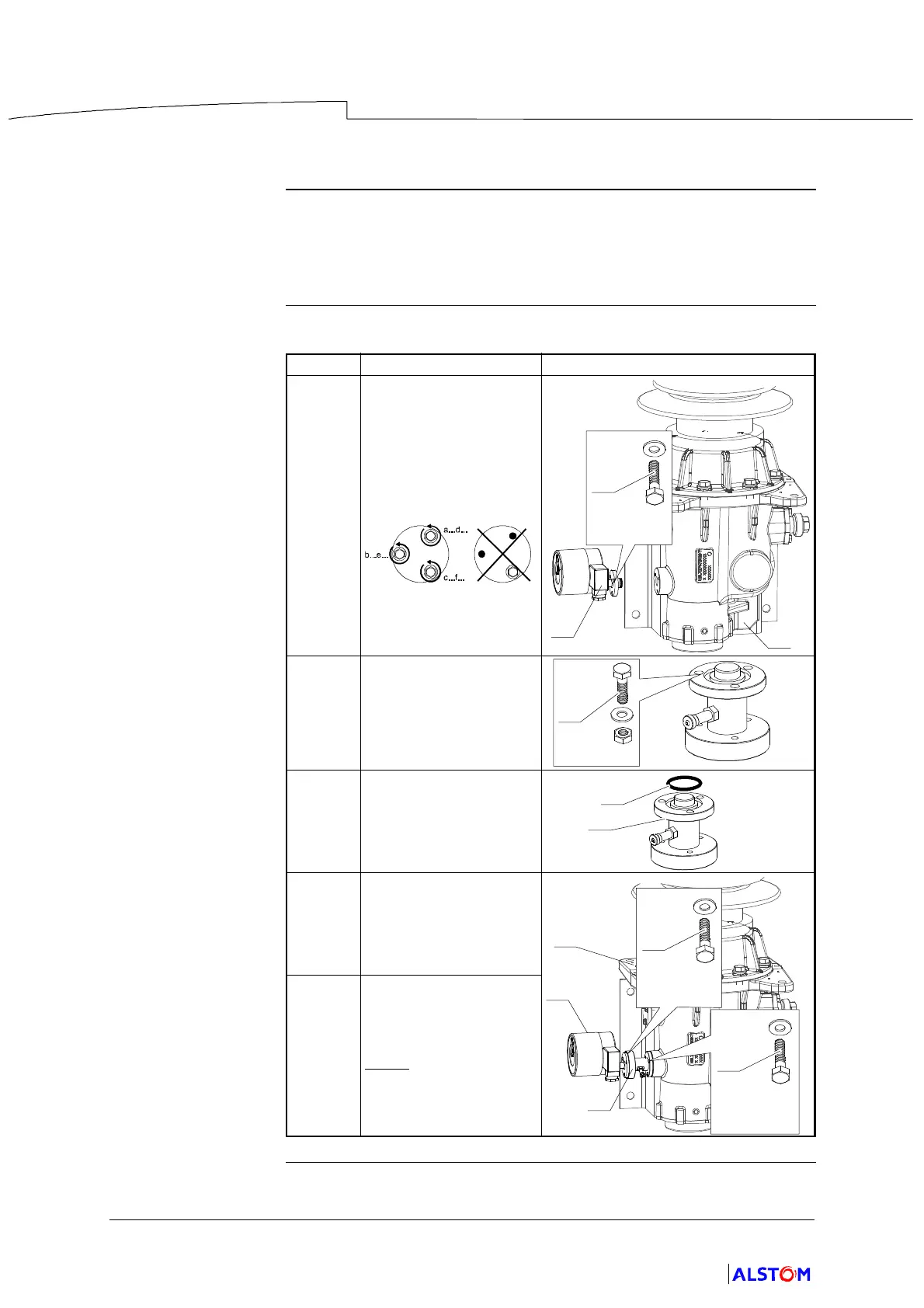

The following table defines the procedure for preparing the densimeter:
Step Action Illustration
1
Remove the densimeter
(1), attached by the
fastener (8) to the circuit
breaker pole casing (2).
1
2
x3
8
HM6--20
2 Remove the fastener
(14).
x3
14
HM6--20
3 Install the seal (16) on
the connection valve
block (5).
16
5
4 Install the connection
valve block (5) on the
circuit breaker pole
casing (2) using the
fastener (8).
2
5
1
x3
14
HM6--20
0,7 daN.m
x3
8
HM6--20
0,7 daN.m
5 Install the densimeter
(1) on the connection
valve block (5) using a
fastener (14).
NOTE
: Before
installation, check for
the presence of seals
on the densimeter.
