Maintenance
Control of contact densimeter thresholds
P51--1001EN/03
3/8
07--2012
© ALSTOM 2010. All rights reserved. Information contained in this document is indicative only. No representation or warranty is given or should be
relied on that it is complete or correct or will apply to any particular project. This will depend on the technical and commercial circumstances. It is
provided without liability and is subject to change without notice. Reproduction, use or disclosure to third parties, without express written authority, is
strictly prohibited.
GRID
Connecting the densimeter to the inspection tools
Instructions
The following table defines the procedure for connecting the densimeter to
the test tool :

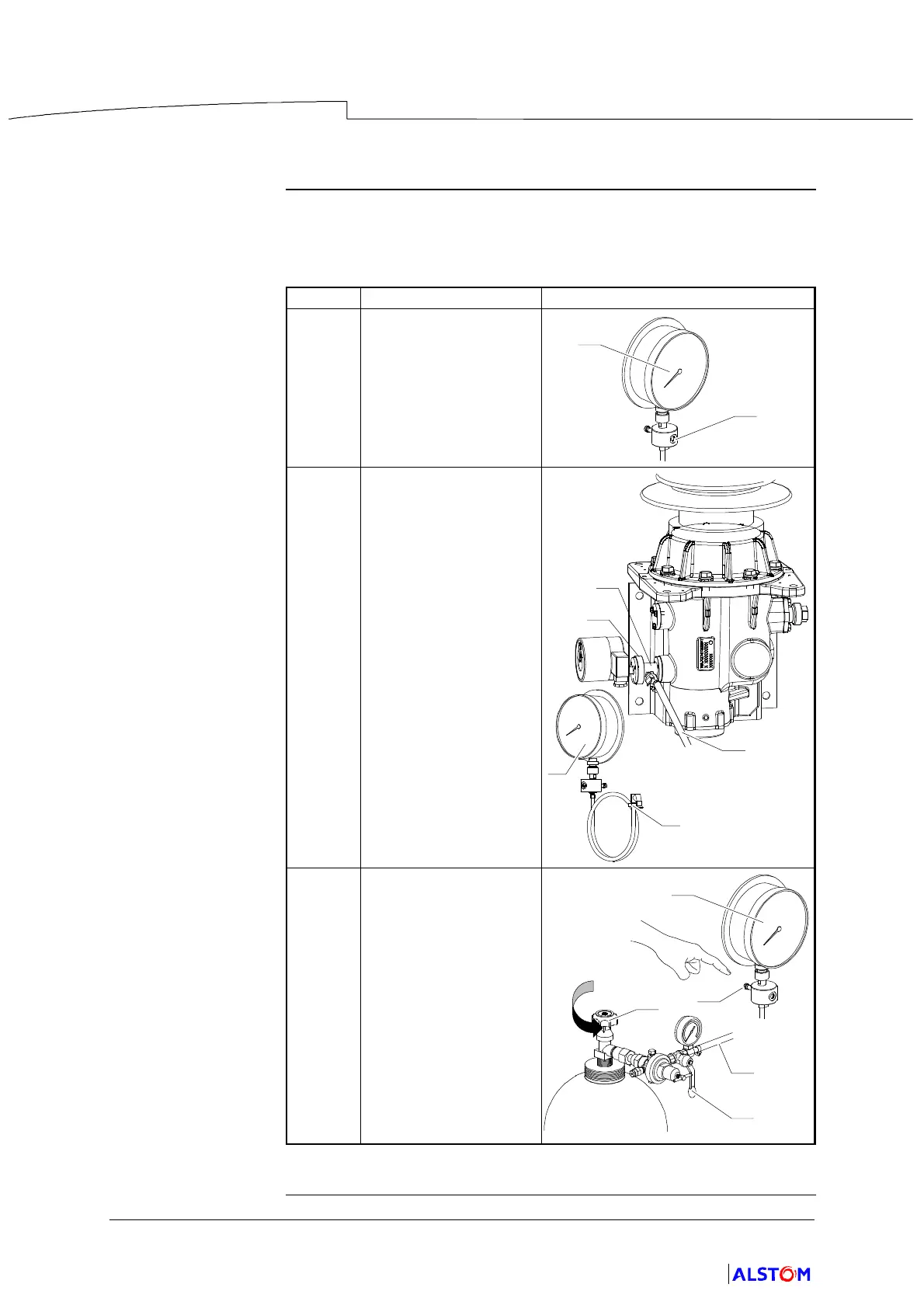

Step Action Illustration
1 Check the pressure
gauge’s (11)
”REGULATION” (20)
screw is in the ”check
valve closed” position
(screwed down).
11
20
2 Connect the pressure
gauge’s (11) pipe (12) to
the valve (24) of the
connection valve block
(5).
5
24
11
12
12
3 Open the tap (21) on the
SF
6
gas bottle for a brief
instant, and the
reducing valve (22) to
expel the air contained
inthepipe(23)(20s
approx. at a low rate of
flow).
Connect the pipe (23) to
the pressure gauge’s
(10) valve (11).
SF
6
21
22
23
10
11
