Maintenance
Control of contact densimeter thresholds
P51--1001EN/03
5/8
07--2012
© ALSTOM 2010. All rights reserved. Information contained in this document is indicative only. No representation or warranty is given or should be
relied on that it is complete or correct or will apply to any particular project. This will depend on the technical and commercial circumstances. It is
provided without liability and is subject to change without notice. Reproduction, use or disclosure to third parties, without express written authority, is
strictly prohibited.
GRID
Checking densimeter thresholds, continued
Check

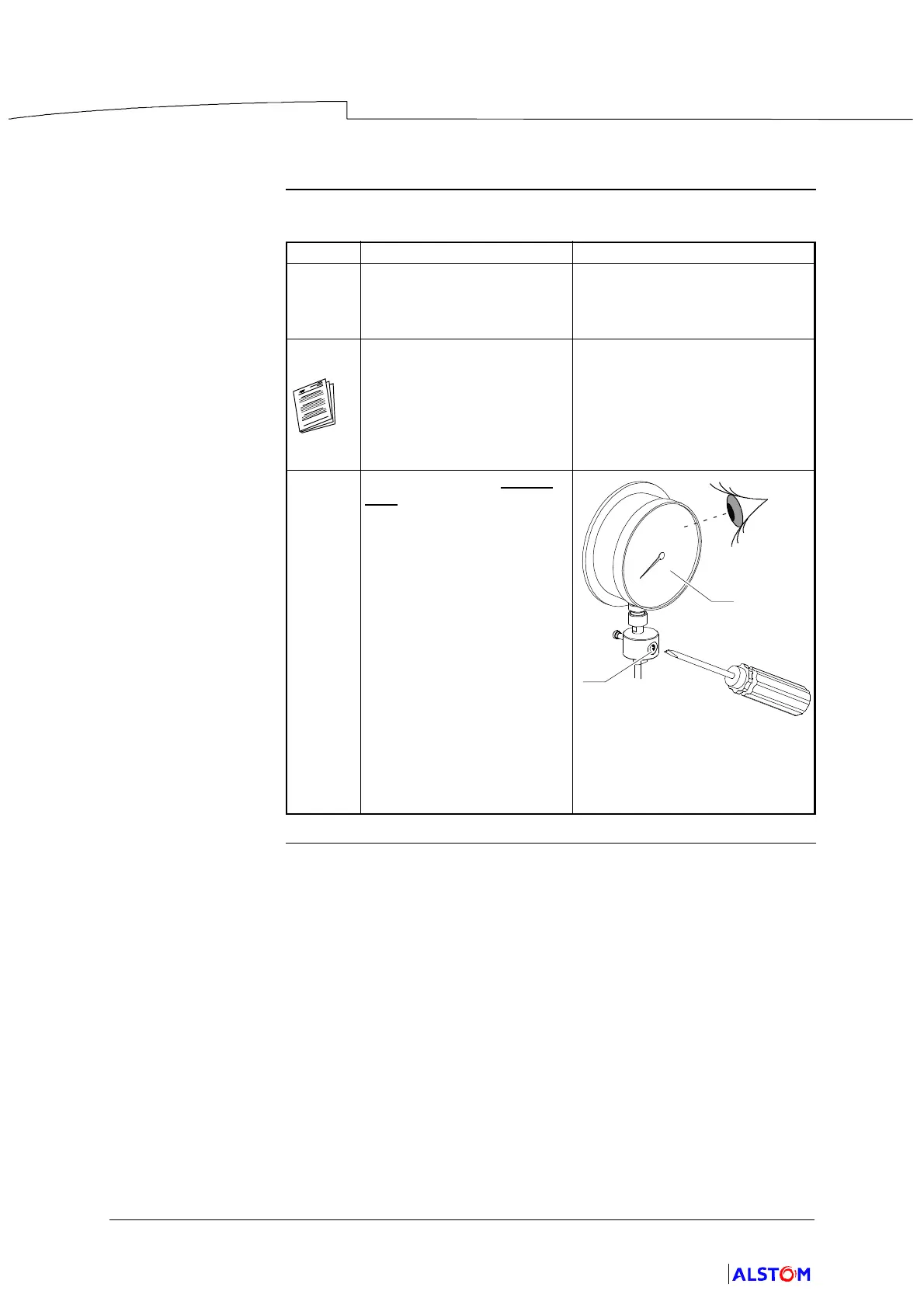

The following table defines the steps for checking the densimeter :
Step Action Remark
1 Connect a test lamp to the
densimeter’s ”Alarm
pressure for isolation”
contact p
ae
.
Connection to the operating
mechanism terminal block,
according to the electric diagram.
2 Calculate the relative
pressure for switchover of
the ”Alarm pressure for
isolation” contact p
ae
,
corrected according to local
atmospheric pressure and
temperature.
Value p
ae
: see technical
characteristics.
See ”Calculating the SF
6
gas
filling pressure for use of the
pressure gauge (tools)”
module.
3 D Create a leak by unscre-
wing
the pressure gauge’s
(20) ”REGULATION” screw
(11), and check the contact
switches over at the
previously calculated value.
D Proceed in the same way
to check the ”Minimum
pressure for isolation”
contact p
me
.
11
20
In a case where one of the
thresholds does not comply with
the specified value, replace the
densimeter.
