Maintenance
Control of contact densimeter thresholds
P51--1001EN/03
7/8
07--2012
© ALSTOM 2010. All rights reserved. Information contained in this document is indicative only. No representation or warranty is given or should be
relied on that it is complete or correct or will apply to any particular project. This will depend on the technical and commercial circumstances. It is
provided without liability and is subject to change without notice. Reproduction, use or disclosure to third parties, without express written authority, is
strictly prohibited.
GRID

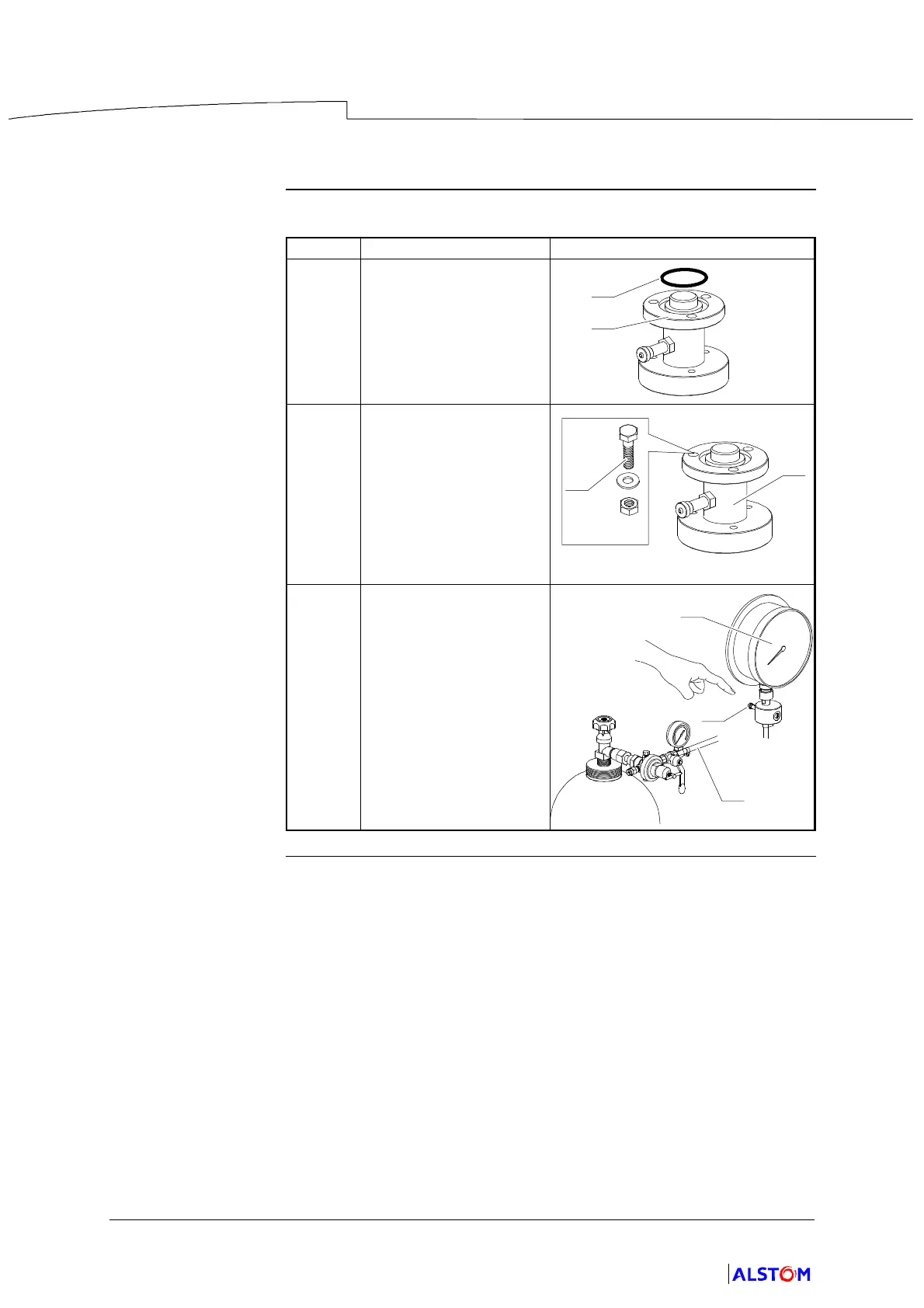

Storage of the checking too ls
Instructions
The following table defines the steps for storing the checking tools:
Step Action Illustration
1 Delicately remove the
seal (16) from the
connecting valve block
(5) and store it in the box
”SET OF SEALS” in the
densimeter threshold
inspection case.
16
5
2 Mount the fastener (14)
on the connection valve
block (5).
Store the connection
valve block (5) in the
case.
x3
14
HM6--20
5
3 Disconnect the pipe (23),
between theSF
6
gass
bottle and the valve (10)
on the pressure gauge
(11).
SF
6
10
11
23
