Alstom SF6 User Manual

Maintenance
Intervention on the operating mechanism
P51--3001EN/03
2/10
09--2011
© ALSTOM 2010. All rights reserved. Information contained in this document is indicative only. No representation or warranty is given or should be
relied on that it is complete or correct or will apply to any particular project. This will depend on the technical and commercial circumstances. It is
provided without liability and is subject to change without notice. Reproduction, use or disclosure to third parties, without express written authority, is
strictly prohibited.
GRID

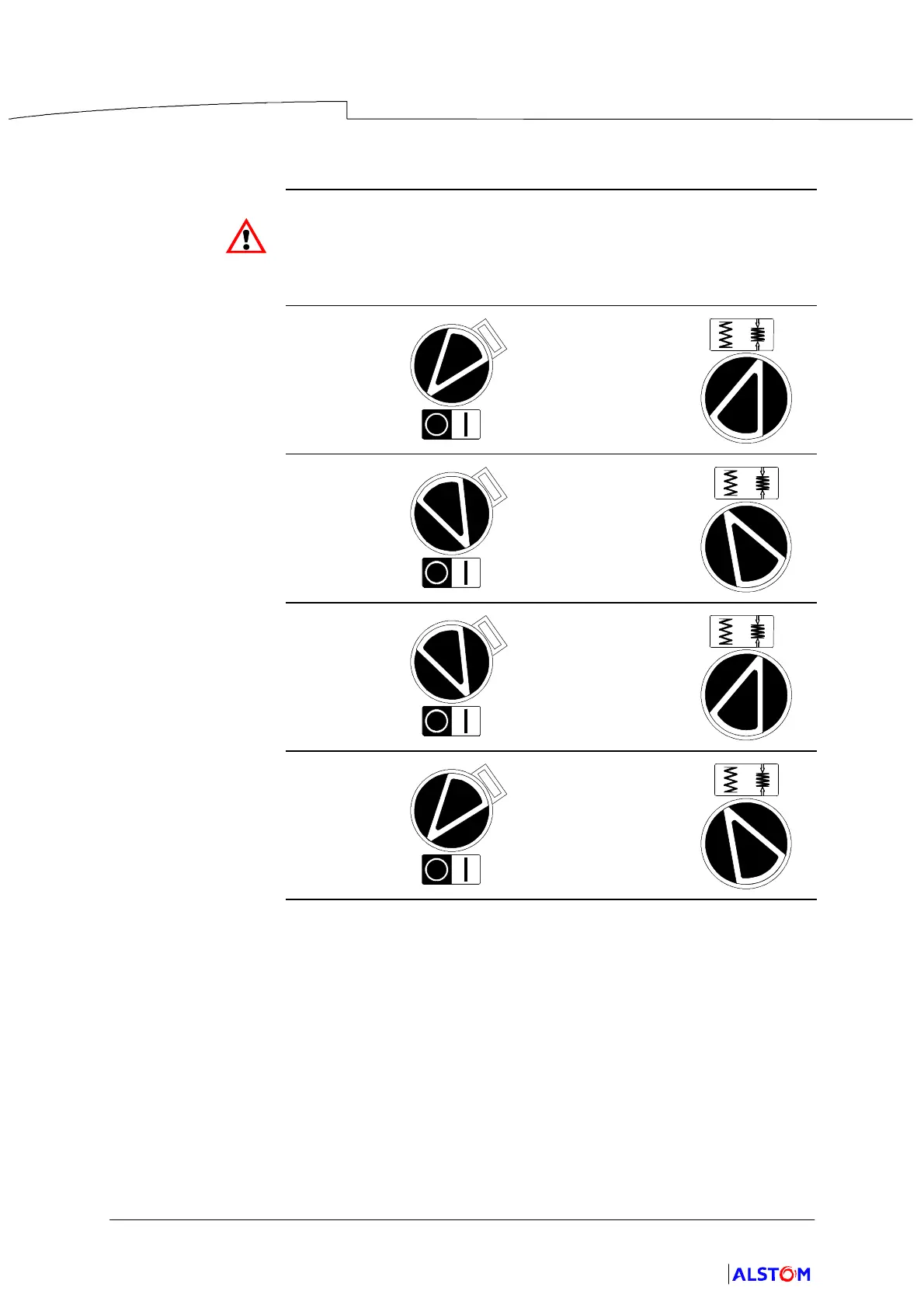

Position indicator statuses
Warning
CAUTION : despite the appearance of the symbol on the front, the FK3.07
springs are under load when stretched, they are tension springs rather
than compression springs. As the symbol has been standardised we must
use it to show the ‘loaded’ state of the spring.
Status ”A”
Circuit--breaker
Open
Closing spring
Armed
Status ”B”
Circuit--breaker
Closed
Closing spring
Unarmed
Status ”C”
Circuit--breaker
Closed
Closing spring
Armed
Status ”D”
Circuit--breaker
Open
Closing spring
Unarmed
