Maintenance
Intervention on the operating mechanism
P51--3001EN/03
3/10
09--2011
© ALSTOM 2010. All rights reserved. Information contained in this document is indicative only. No representation or warranty is given or should be
relied on that it is complete or correct or will apply to any particular project. This will depend on the technical and commercial circumstances. It is
provided without liability and is subject to change without notice. Reproduction, use or disclosure to third parties, without express written authority, is
strictly prohibited.
GRID

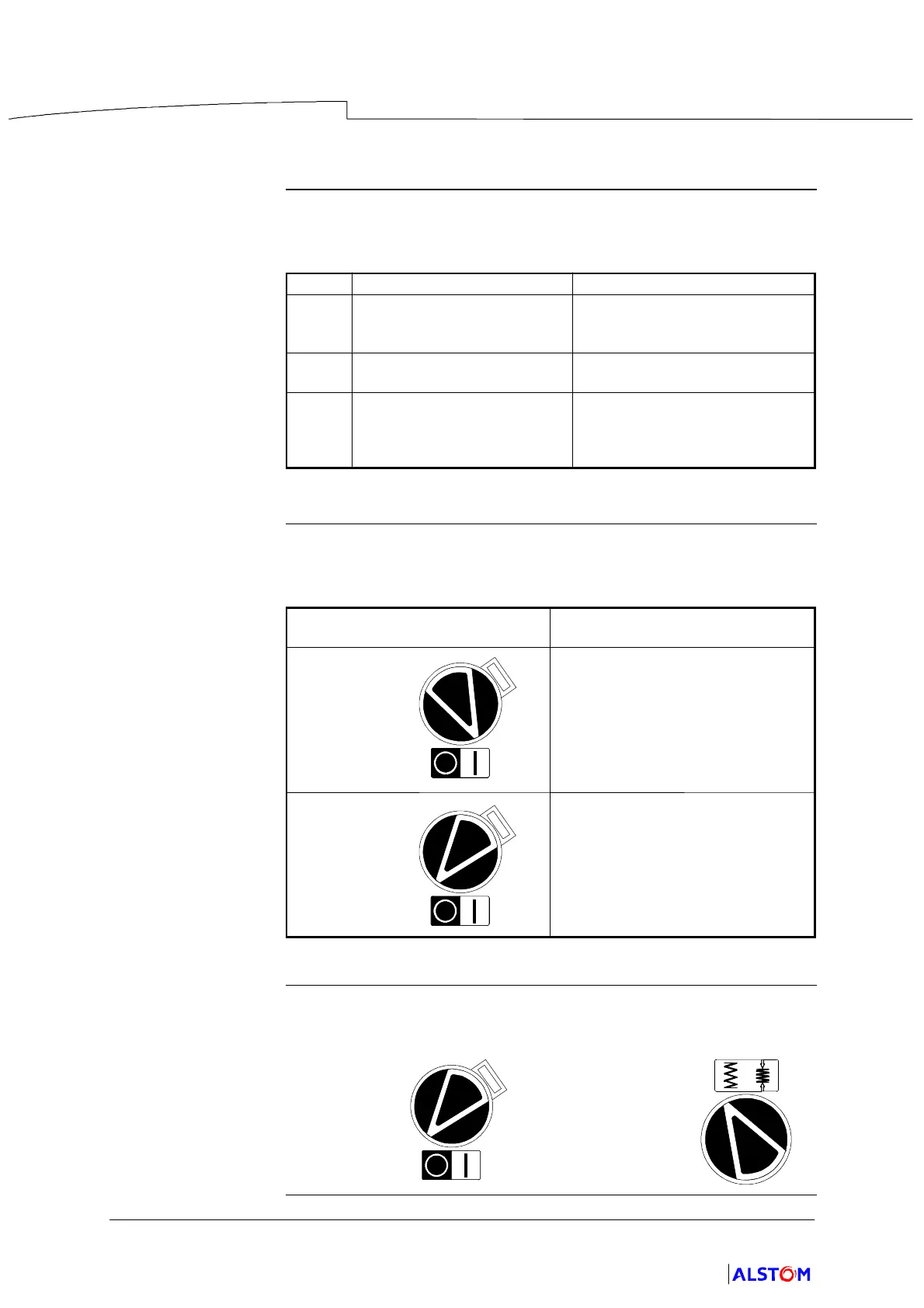

Safety measures
General preparation
of the circuit--breaker
The table below shows the steps to take to be able to work in complete safety
on the circuit--breaker:
Step Action Remark
1 Isolate the circuit--breaker from
the network.
Put the circuit--breaker out of
operation, power it down and
ground it.
2 Interrupt the resetting motor
power supply.
3 Check the SF
6
gas pressure. The SF
6
gas pressure must be
≥ p
me
.
Below this level, no mechanical
operations are authorized.
Release the springs
The following table gives the procedure for disarming the closing spring and
opening spring according to the circuit--breaker position:
If the circuit--breaker
position is ...
Action
Closed
In the operating mechanism, actuate
the opening handle and closing
handle as follows :
1 -- Open
2 -- Close
3 -- Open
Open
Actuate the closing handle and
opening handle as follows :
1 -- Close
2 -- Open
Checking the
visual signaling
Check that the operating mechanism’s visual signaling displays the symbols
below:
Circuit--breaker
Open
Closing spring
Unarmed
