Packaging -- Transport and Storage
Packing -- Marking -- Storage
P22--0001EN/02
2/4
01--2011
© ALSTOM 2010. All rights reserved. Information contained in this document is indicative only. No representation or warranty is given or should be
relied on that it is complete or correct or will apply to any particular project. This will depend on the technical and commercial circumstances. It is
provided without liability and is subject to change without notice. Reproduction, use or disclosure to third parties, without express written authority, is
strictly prohibited.
GRID

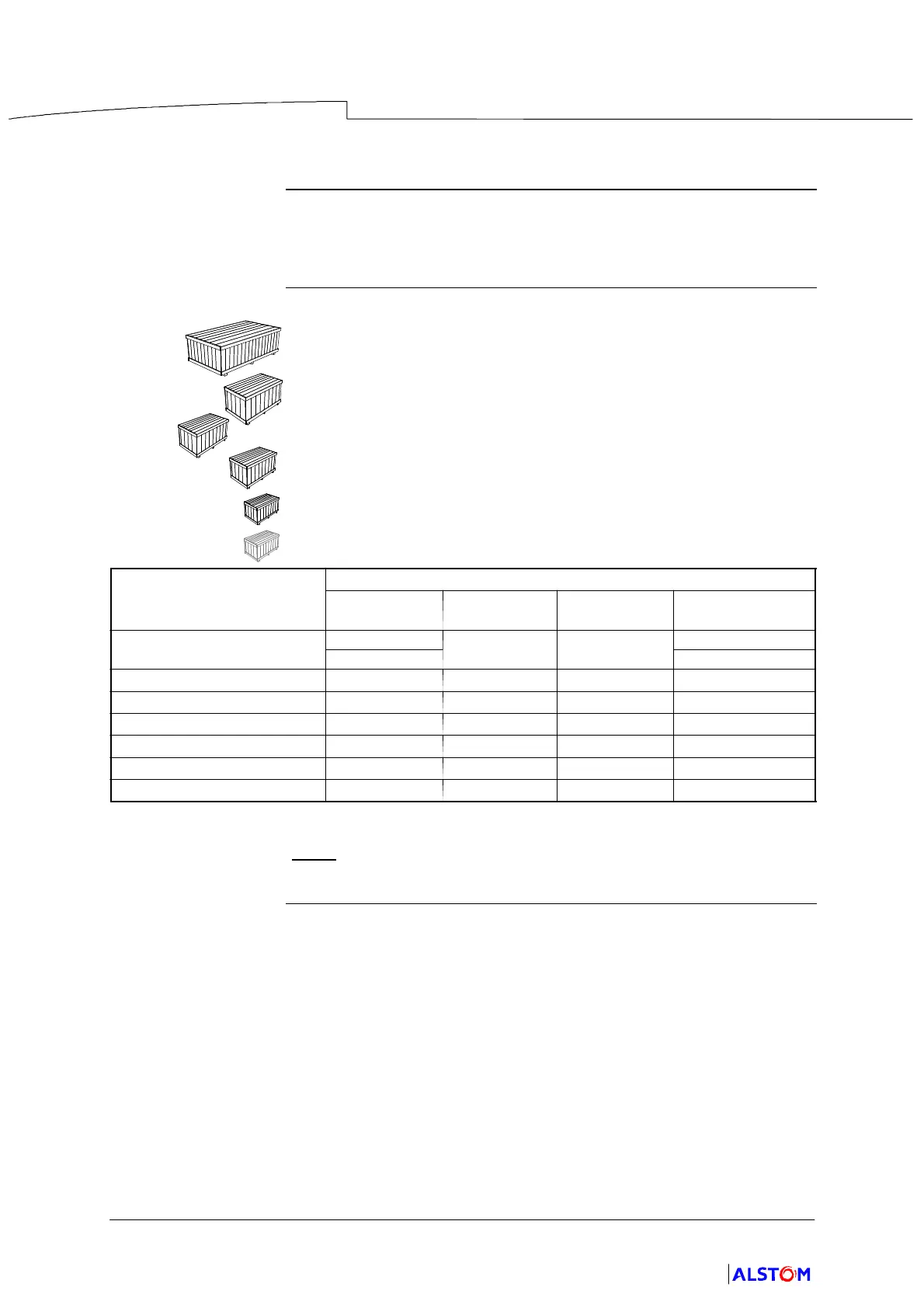

Packing
Introduction
The various component parts of the switchgear are divided into a number
of packages for transport. The number of packages and their individual
contents are dependant on the dimensions of the circuit breaker pole.
Example
S A main case, which contains :
-- The poles.
-- The frame components, if it is provided by ALSTOM Grid.
S A case containing the operating mechanisms, vacuum--packed in a
heat--welded plastic cover containing bags of desiccant.
S A case containing the cable box.
S Depending on the individual situation, one case contains the SF
6
gas
bottle(s), or the SF
6
and CF
4
bottles.
S One case contains any anciliaries required for fitting (grease, oil, etc.).
S One case contains the accessories : Spare parts, etc.
T ype of case
GL314 P.
Length
cm
Width
cm
Height
cm
Gross weight
kg
Poles
495
185 115
2680
595 3410
Operating mechanism (x3)
247 62 108 310
Cable box
178 72 113 182
Chassis
273 73 92 600
SF
6
gas *
120 60 55 75
Fitting accessories
45 45 52 17
Accessories *
* Depends on apparatus
NOTE
: The values in the table above are for information only for the
organisation of appropriate lifting equipment.
