Installation
Mounting the frame
P31--1001 EN/03
5/8
01--2011
© ALSTOM 2010. All rights reserved. Information contained in this document is indicative only. No representation or warranty is given or should be
relied on that it is complete or correct or will apply to any particular project. This will depend on the technical and commercial circumstances. It is
provided without liability and is subject to change without notice. Reproduction, use or disclosure to third parties, without express written authority, is
strictly prohibited.
GRID
Mounting the frame legs
Instructions

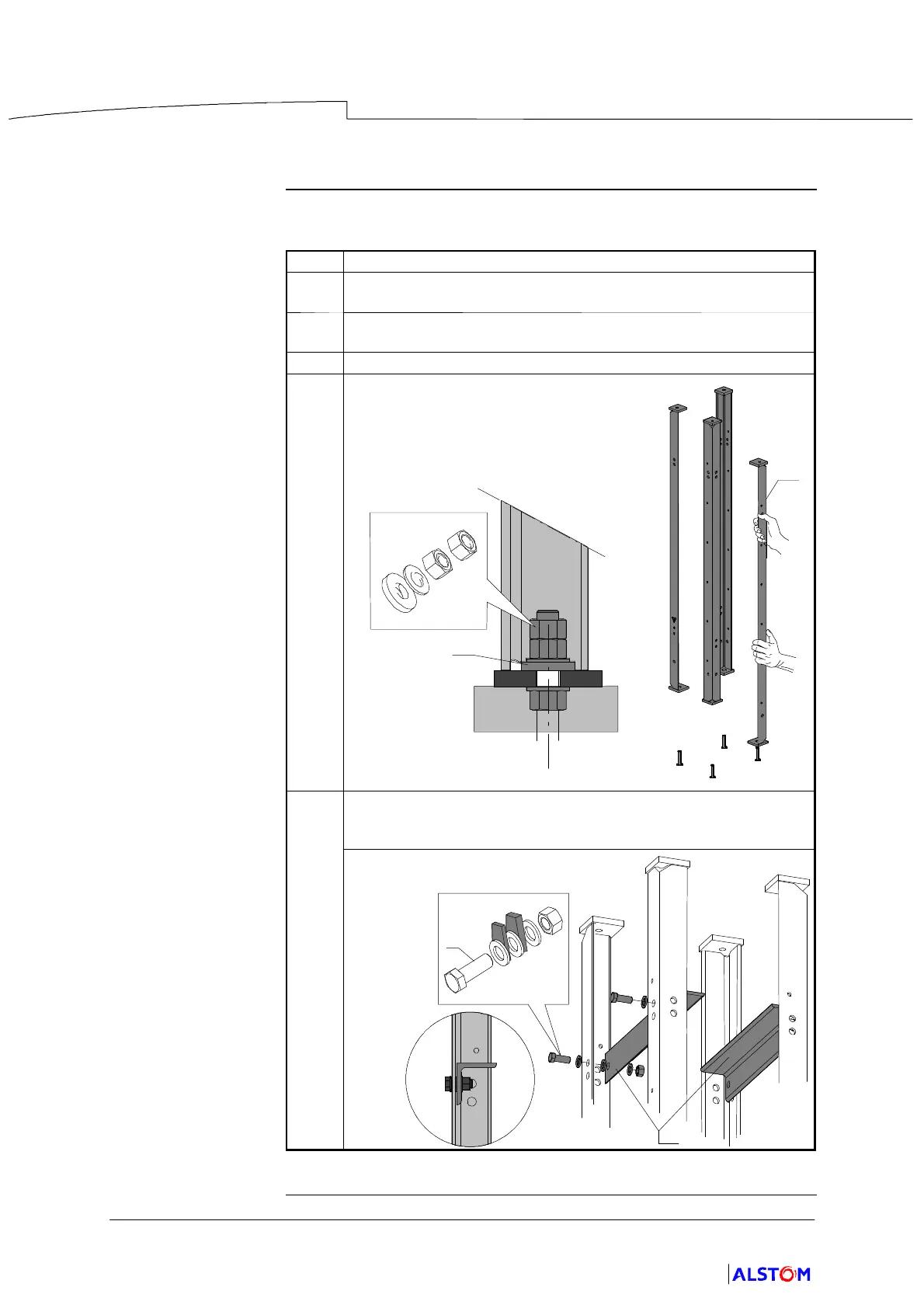

The table below shows the steps for fitting the frame legs :
Step Action
1 Position the frame legs (1) on the anchoring lugs, respecting the
direction of the installation diagram.
2 Place a heavy washer (2), the washer, nut, and locking nut of the
lug fastener. Do not block the fasteners.
3 Repeat these operations for the three other legs.
4
x4
2
1
5
Mount the two long reinforcements (3), making sure to respect the
direction of installation.
Do not block the fasteners (5).
3
x4
5
H M16--45
