GRID
Mounting the two cabinet supports, optional
Instructions
The table below shows the steps for fitting the frame legs:
Step Action

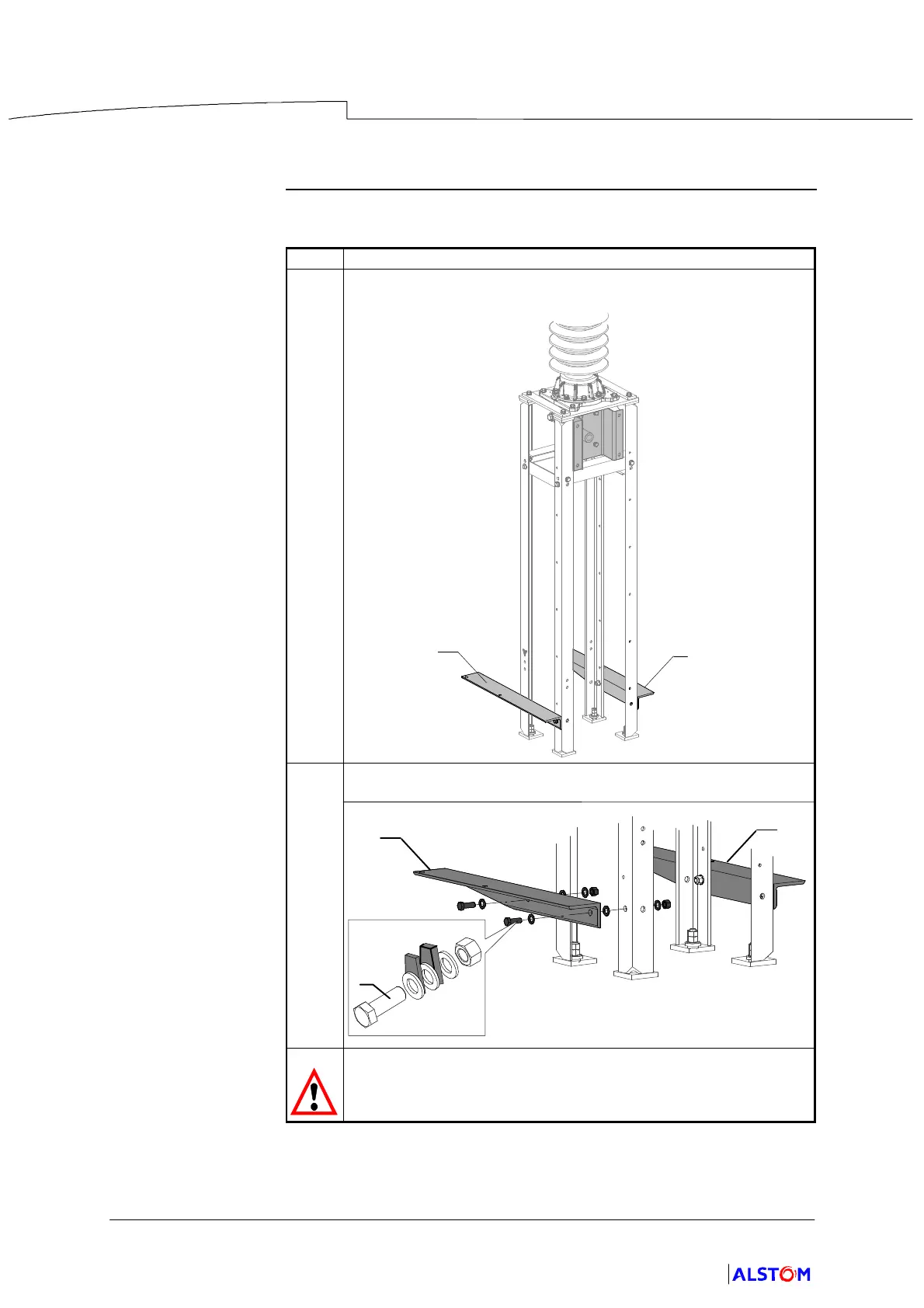

1
Position the two supports in the right direction. The cabinet should
be opposite the control.
7
6
2
Mount the left (6) and right (7) reinforcements using the fasteners (8).
Do not block the fasteners (5).
x4
8
H M16--45
6
7
3
Leave the frame as--is, as the pole must be present before the
frame can be completely fixed in place.
