Installation
Hoisting and in stalling the pole
P31--2001EN/03
5/6
01--2011
© ALSTOM 2010. All rights reserved. Information contained in this document is indicative only. No representation or warranty is given or should be
relied on that it is complete or correct or will apply to any particular project. This will depend on the technical and commercial circumstances. It is
provided without liability and is subject to change without notice. Reproduction, use or disclosure to third parties, without express written authority, is
strictly prohibited.
GRID
Installing the po le, continued
Instructions

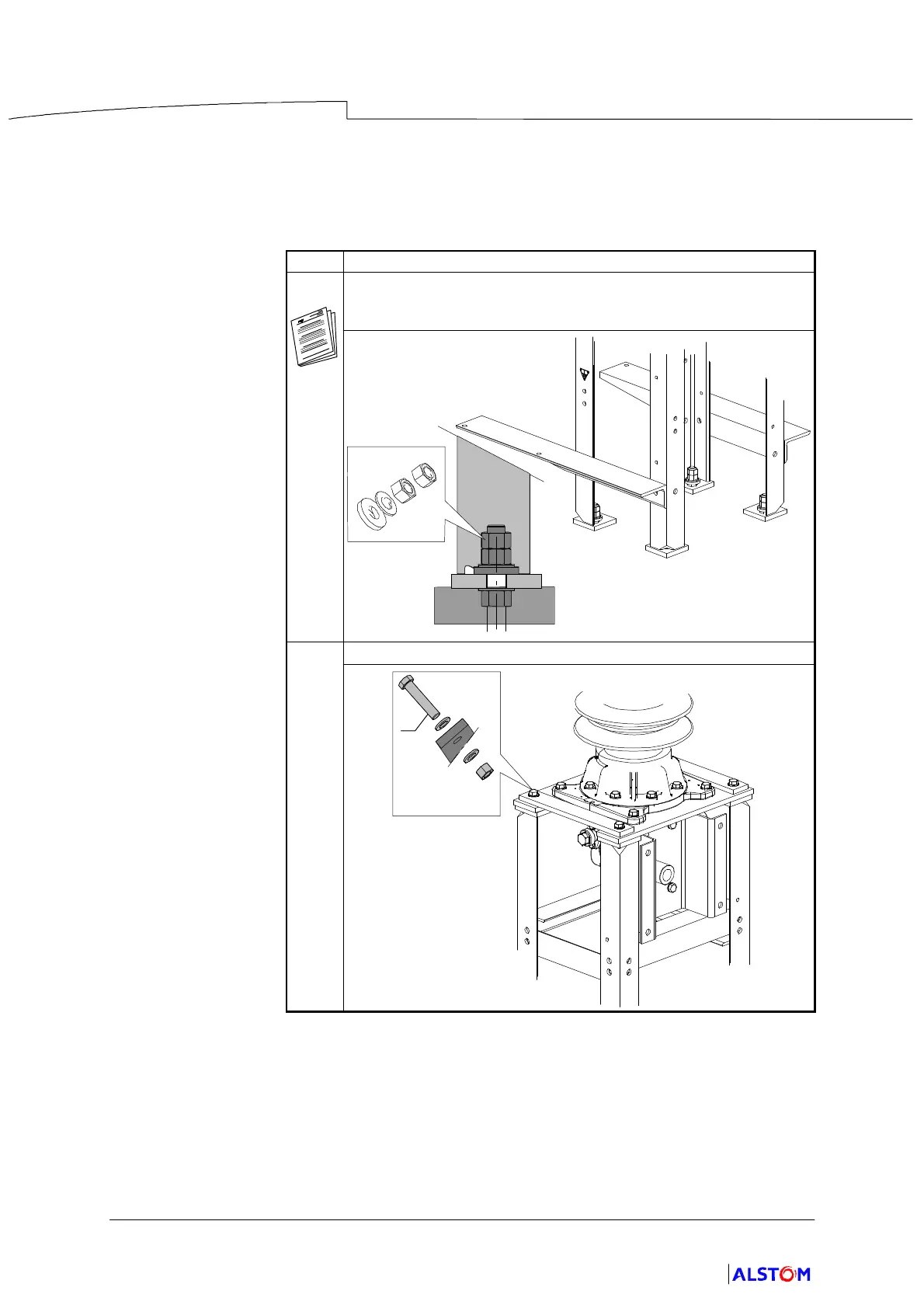

The table below shows the steps for fitting the frame legs :
Step
Action
3
T ighten the fixings of the four frame legs to the ground according
to the ”T ightening torques” module and according to the diameter
of the anchoring lugs.
x4
4
Fix the pole to the frame with the fasteners (2).
x4
H M16--75
18 daN.m
