Commissioning
Inspection prior to commissioning
P34--0001EN/03
4/6
07--2012
© ALSTOM 2010. All rights reserved. Information contained in this document is indicative only. No representation or warranty is given or should be
relied on that it is complete or correct or will apply to any particular project. This will depend on the technical and commercial circumstances. It is
provided without liability and is subject to change without notice. Reproduction, use or disclosure to third parties, without express written authority, is
strictly prohibited.
GRID
Test operations
OPERATION AUTHORISED ONLY IF THE SF
6
or SF
6
+CF
4
GAS PRES-
SURE IS GREATER THAN THE MINIMUM INSULATING PRESSURE
p
me
.
Caution
DUE TO THE RISK OF DAMAGE CAUSED BY TRANSPORT OF POR-
CELAIN, ALL PERSONS PRESENT DURING GAS FILLING MUST TAKE
SHELTER OR REMAIN AT A MINIMUM SAFETY DISTANCE (ROUGHLY
50m).

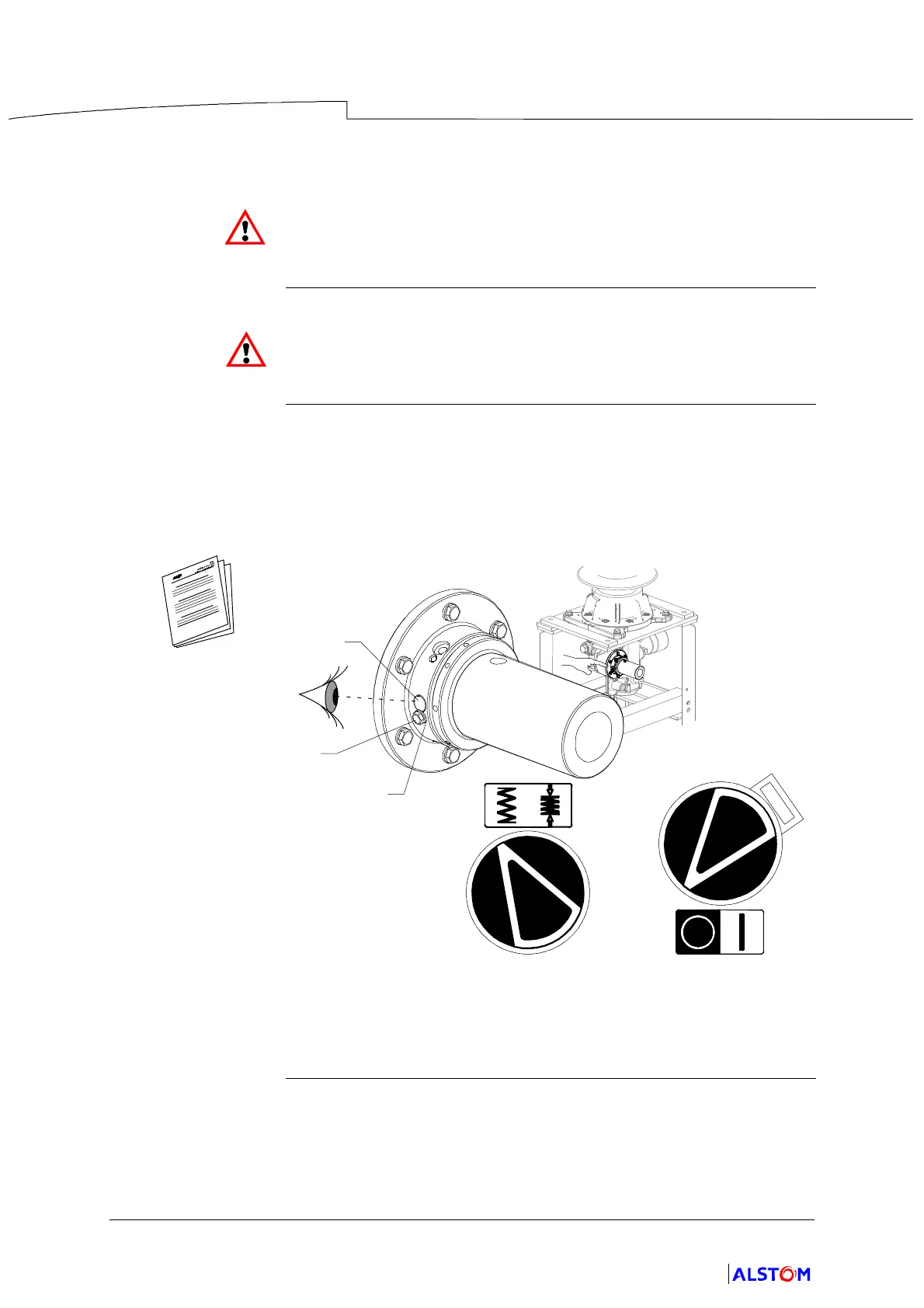

Test operations
D The connection of the wuxiliary circuits has sufficiently progressed for
remote control.
D Electrically remote control 1 CLOSING -- OPENING cycle.
D Make sure the control is in open position by looking at the mimic
diagram, and that there is no damage visible on the fuse pin (7), the
washer (5) or the screw (6).
7
6
5
Disarmed spring
Circuit breaker open
D Electrically remote control 4 more CLOSING -- OPENING cycles.
