13 (48)

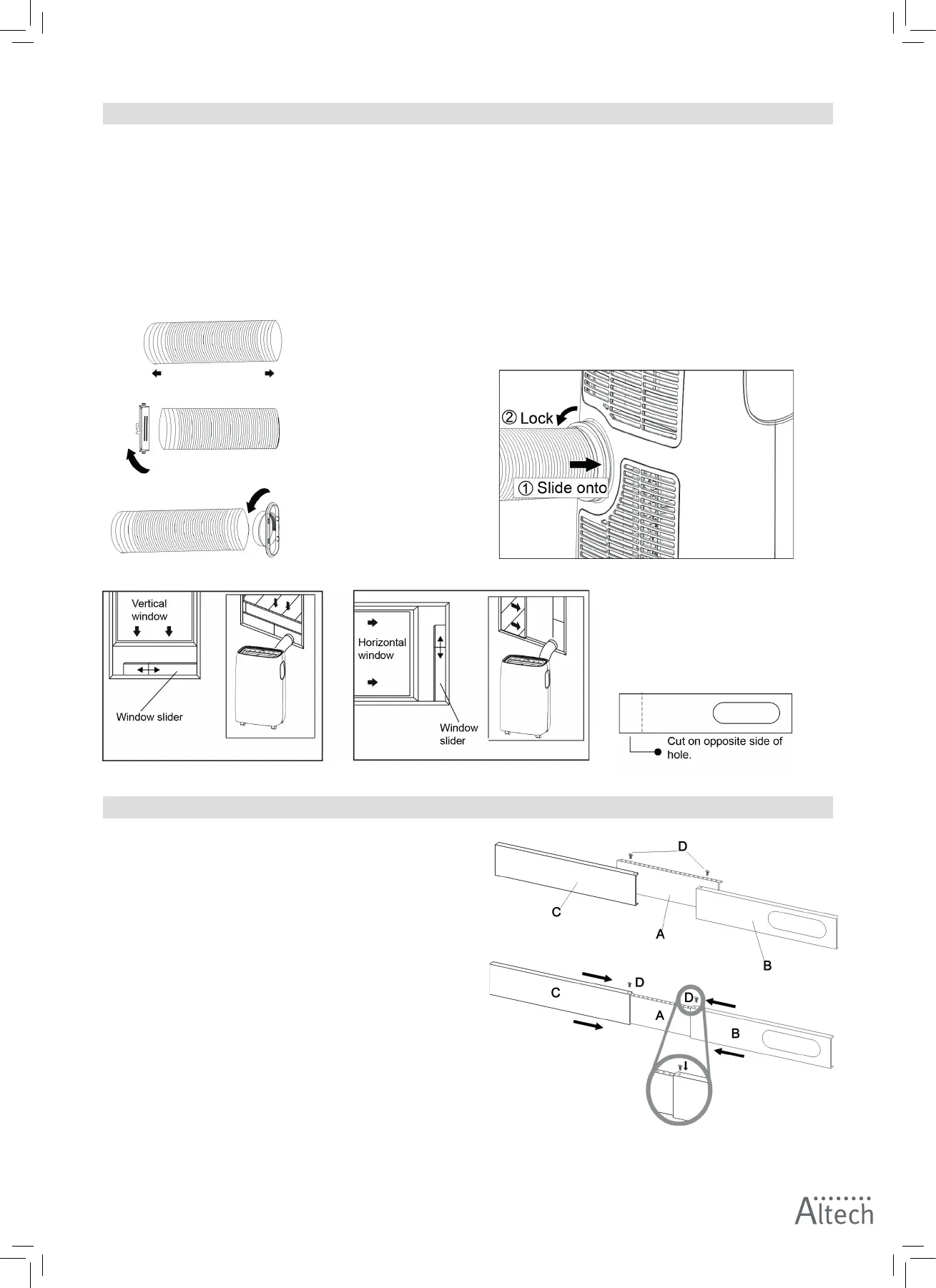

INSTALLATION
Follow these steps to install the AC:
1. Extend either side of the hose (Fig 1) and screw the hose to the inlet (Fig 2).
2. Extend the other side of the hose and screw it to the hose outlet (Fig 3).
3. lnstall the hose inlet into the unit by sliding on and lock (Fig 4).
4. Affix the hose outlet into the window slider kit and seal. (Fig 5 and 6).
5. Your window slider kit has been designed to fit most standard vertical and horizontal window applications.
The window slider kit can be fastened with screws.
5.1. If the window opening is less than the minimum length of the window slider kit, cut the end short enough to
fit in the window opening. Never cut out the hole in the window slider kit (Fig 7).
INSTALLATION OF WINDOW SLIDER KIT
The window slider kit consists of the following parts:
A) Panel
B) Panel with one hole
C) Panel without hole (not supplied with all models)
D) Screw to lock window kit in place
INSTALLATION:
1. SIide Panel B and C into Panel A.
2. Size to window width. When sizing the window width, be
sure that the window kit assembly is free from gaps and/or
air pockets.
3. Lock the screw into the holes that correspond with the
window width, ensuring that there are no gaps or air pockets
in the window kit assembly after installation.
Fig 5
Fig 6
Fig 1
Fig 2
Fig 3
Fig 7
Fig 4
To Next Page
