Chapter 2: Board Components 2–27
Components and Interfaces
August 2017 Altera Corporation Cyclone V GT FPGA Development Board
Reference Manual
10/100/1000 Ethernet
The development board supports 10/100/1000 base-T Ethernet using an external
Marvell 88E1111 PHY and Altera Triple-Speed Ethernet MegaCore MAC function. The
PHY-to-MAC interface employs a RGMII interface. The MAC function must be
provided in the FPGA for typical networking applications.
The Marvell 88E1111 PHY uses 2.5-V and 1.0-V power rails and requires a 25-MHz
reference clock driven from a dedicated oscillator. The PHY interfaces to a RJ45 model
with internal magnetics for driving copper lines with Ethernet traffic.
Figure 2–7 shows the RGMII interface between the FPGA (MAC) and Marvell 88E1111
PHY.
Table 2–21 lists the Ethernet PHY interface pin assignments.
B28 PCIE_RX_N3 AC1 1.5-V PCML Receive bus
B5
PCIE_SMBCLK AP5 LVTTL SMB clock
B6
PCIE_SMBDAT AJ12 LVTTL SMB data
A16
PCIE_TX_P0 AH4 1.5-V PCML Transmit bus
A17
PCIE_TX_N0 AH3 1.5-V PCML Transmit bus
A21
PCIE_TX_P1 AF4 1.5-V PCML Transmit bus
A22
PCIE_TX_N1 AF3 1.5-V PCML Transmit bus
A25
PCIE_TX_P2 AD4 1.5-V PCML Transmit bus
A26
PCIE_TX_N2 AD3 1.5-V PCML Transmit bus
A29
PCIE_TX_P3 AB4 1.5-V PCML Transmit bus
A30
PCIE_TX_N3 AB3 1.5-V PCML Transmit bus
B11
PCIE_WAKEn AP6 LVTTL Wake signal
Table 2–20. PCI Express Pin Assignments, Schematic Signal Names, and Functions (Part 2 of 2)
Board
Reference (J16)
Schematic Signal Name
Cyclone V GT
Pin Number
I/O Standard Description

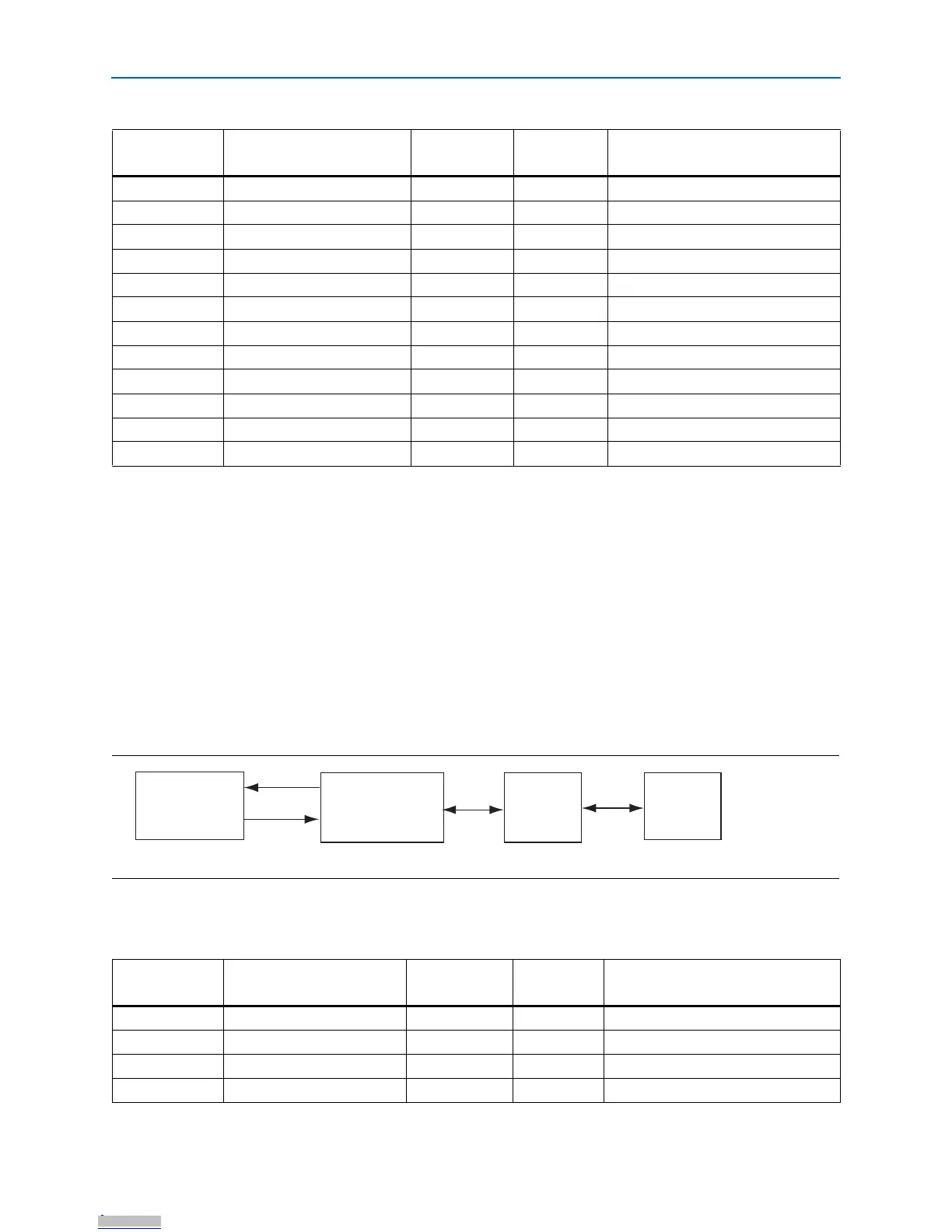

Figure 2–7. RGMII Interface between FPGA (MAC) and Marvell 88E1111 PHY
10/100/1000 Mbps
Ethernet MAC
Marvell 88E1111
PHY
Device
Transformer
RJ45
RGMII Interface
TXD[3:0]
RXD[3:0]
CAT 5 UTP:
- 10BASE-T
- 100BASE-TX
- 1000BASE-T
Table 2–21. Ethernet PHY Pin Assignments, Signal Names and Functions (Part 1 of 2)
Board
Reference (U11)
Schematic Signal Name
Cyclone V GT
Pin Number
I/O Standard Description
8
ENET_GTX_CLK AP7 2.5-V CMOS 125-MHz RGMII transmit clock
23
ENET_INTN AK10 2.5-V CMOS Management bus interrupt
60
ENET_LED_DUPLEX — 2.5-V CMOS Duplex or collision LED. Not used
70
ENET_LED_DUPLEX — 2.5-V CMOS Duplex or collision LED. Not used
