13

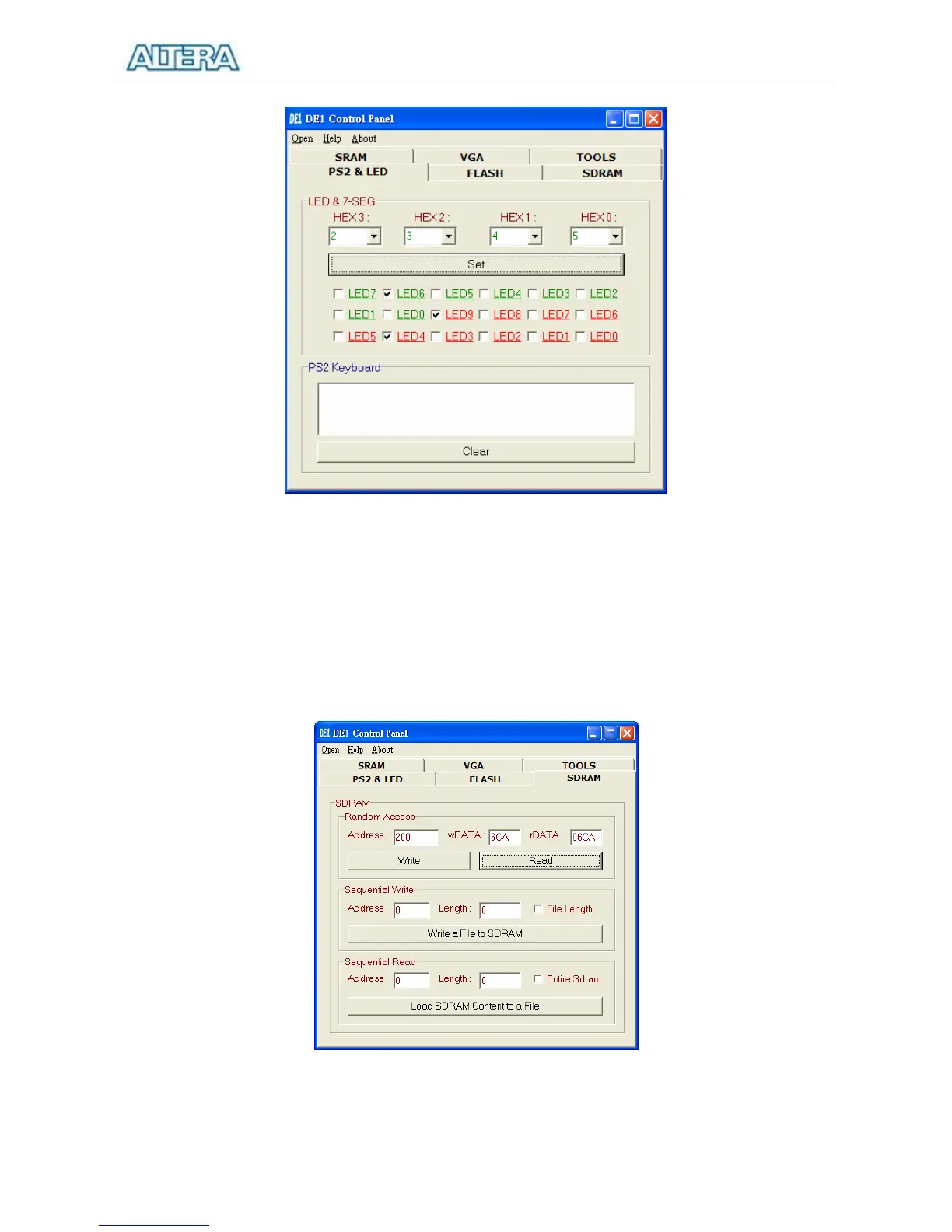

Figure 3.4. Controlling LEDs and the LCD display.
3.3 SDRAM/SRAM Controller and Programmer
The Control Panel can be used to write/read data to/from the SDRAM and SRAM chips on the DE1
board. We will describe how the SDRAM may be accessed; the same approach is used to access the
SRAM. Click on the SDRAM tab to reach the window in Figure 3.5.
Figure 3.5. Accessing the SDRAM.
