Apply the following instructions

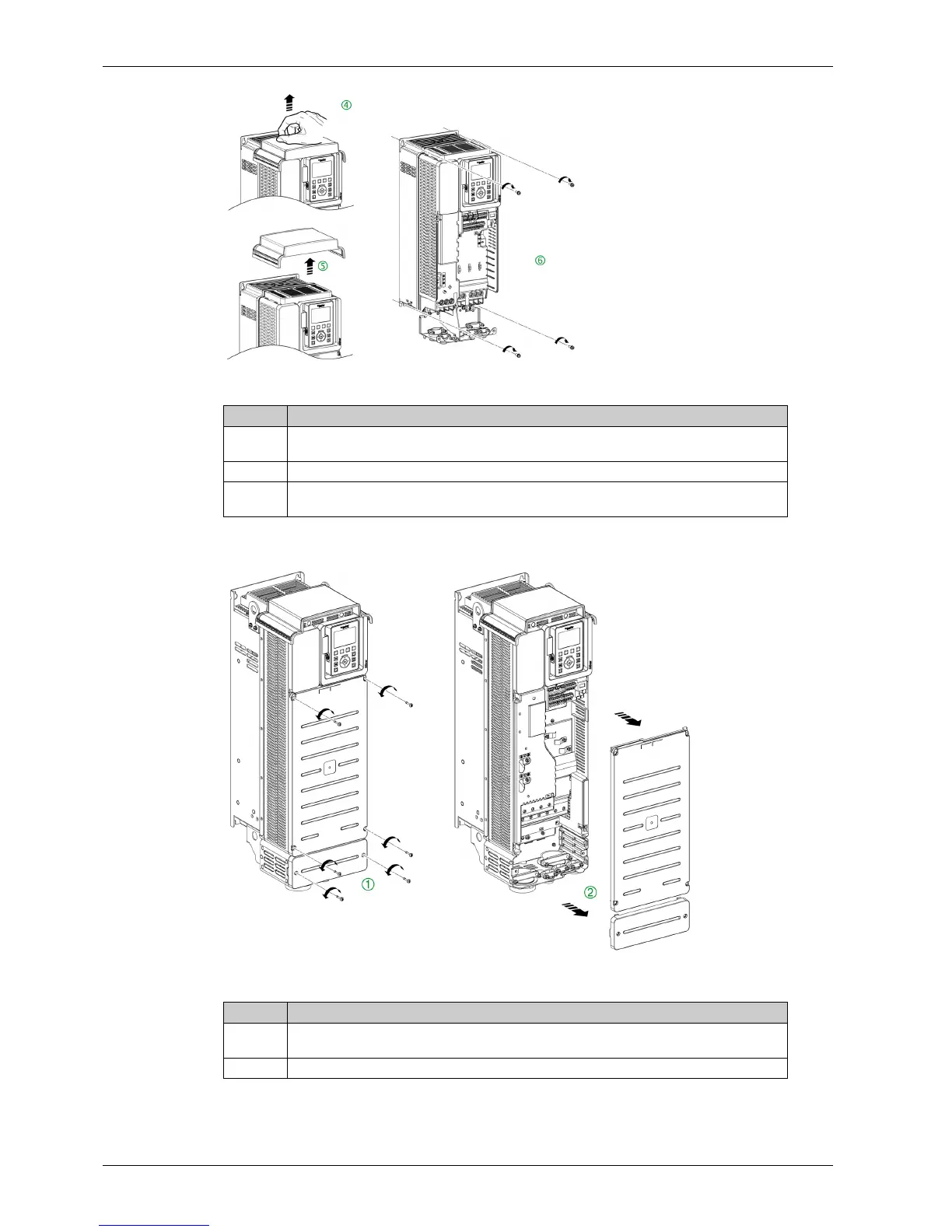

Mounting Procedure For Frame Sizes 4 and 5
Apply the following instructions
Step Action
4 Attach the drive on the mounting surface using the screws with captive washer, according to the
table above.
5 Refit the top cover on the drive.
6 Refit the top cover to help prevent metal parts to fall into the drive during wiring operation or if
IP21 degree of protection is requested.
Step Action
1 Unscrew the 6 screws (frame size 4) or the 8 screws (frame size 5) attaching the front and bottom
covers
2 Remove the covers
