Apply the following instructions
Mounting Procedure For Frame Size 6
Mounting the drive does not require preliminary dismantling operation. Simply mount the drive to its
support using the 4 screws with captive washer, according to the table above.
Mounting Procedure For Frame Sizes A, B and C
Mounting the drive does not require preliminary dismantling operation. Simply mount the drive to its
support using the 4 screws with captive washer, according to the table above.

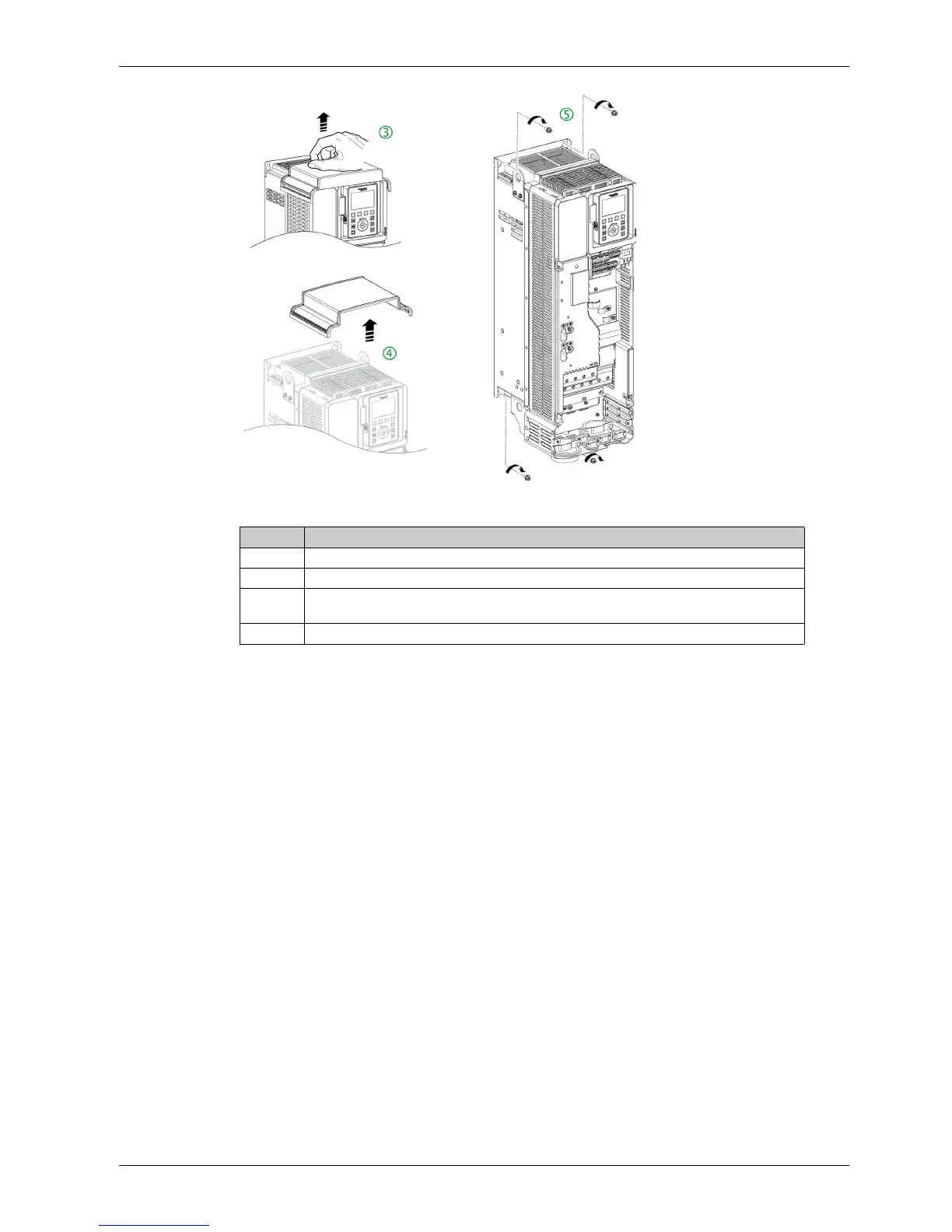

Step Action
3 Slide the top cover from back to front
4 Remove the top cover
5 Screw the drive on the mounting surface using 4 screws with captive washer, according to the
table above.
6 Refit the top cover on the drive.
