COMPONENTS
Del uxe Contr ol Cook & Hold ▪ Ser vic e Manua l ▪ MN- 4671 2 ▪ R ev 01 ▪ 1 1/ 20
28

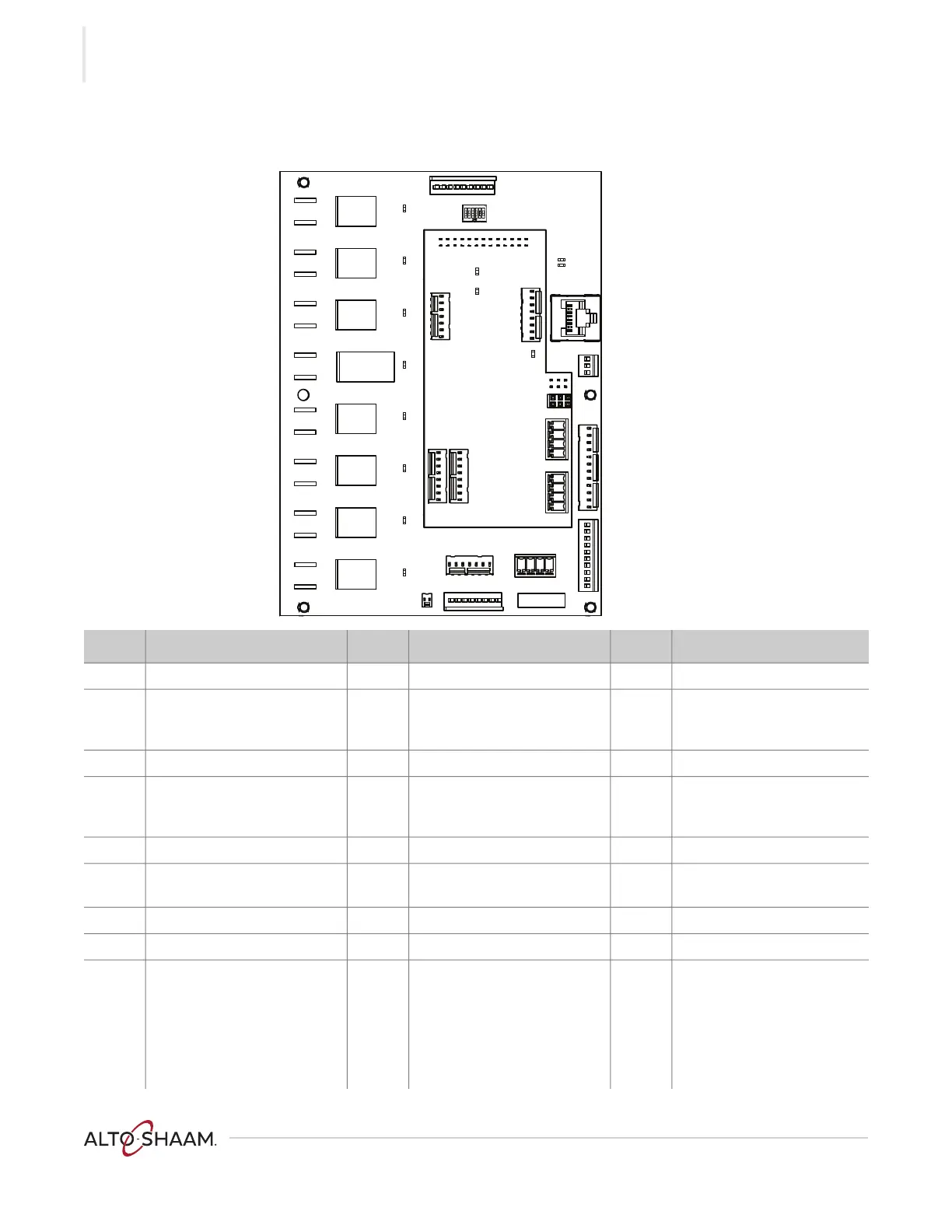

Control Board (CB) and Daughter Board (DB)
TH-PHD-011530
D2
D3
D4
D5
D6
D7
D1
D8
RY1
RY8
RY7
RY5
RY6
RY4
RY3
RY2
D12
D11
J2
J13
J4
J9
J11
J12
J2
J10
J6
J5
D2
D3
D4
J6
J1
S01
DAUGHTER
BOARD
CONTROL
BOARD
Ref. Description (CB) Ref. Description (CB) Ref. Description (DB)
RY1-D1 Smoker - bottom oven D12 LED D2 5 VDC
RY2-D2 Smoker - top oven J1 Voltage monitor J2 Cooking probes
Bottom cavity temperature
sensor
RY3-D3 Not used J2 12VDC power supply J5 Door handle lights
RY4-D4 Fan J4 Cooking probes
Top cavity temperature
sensor
J6 Door handle lights
RY5-D5 Lock - bottom oven J6 Cooking probes J10 Cooking probes
RY6-D6 Lock - top oven J9 Door switch(es)
High limit(s)
— —
RY7-D7 Not used J10 Cavity lights — —
RY8-D8 Not used J12 Ethernet - IB — —
D11 LED S01 DIP switches - ON
1=Spare
2=Dual cavity
3=208–240V
4=Smoker
5=Latch
6=Demo
— —
