Alto-Shaam 750-SK

COMPONENTS
De lux e Control Cook & Hold ▪ Service Manu al ▪ MN -46 712 ▪ Rev 01 ▪ 11 /20
29
Terminal Blocks
Ref. Description Model
TB3A L1 750-TH, 1000-TH, 1200-TH, 1750-TH
TB3B Smoker option 1200-TH, 1750-TH
TB4A L2/N 750-TH, 1000-TH, 1200-TH, 1750-TH
TB4B Smoker option 1200-TH, 1750-TH
TB8 DC - Lights, top cavity 1200-TH
TB9 DC - Lights, bottom cavity 1200-TH
TB10A DC + Lights 1000-TH, 1200-TH, 1750-TH
TB10B DC + Lights 1200-TH

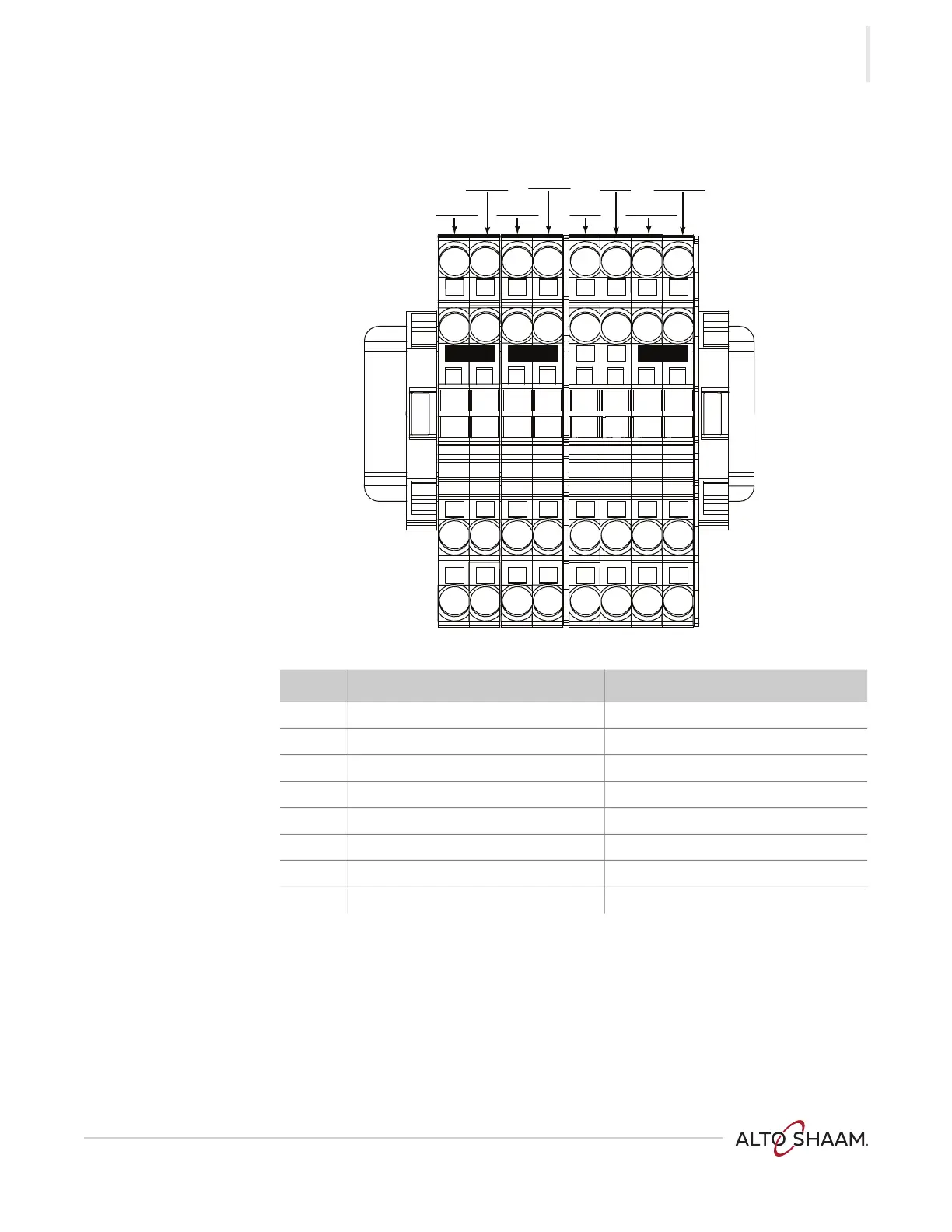

TH-PHD-011533
TB3A
TB3B
TB4B
TB4A TB10A
TB8
TB9 TB10B
