Alto-Shaam Combitouch Series Installation

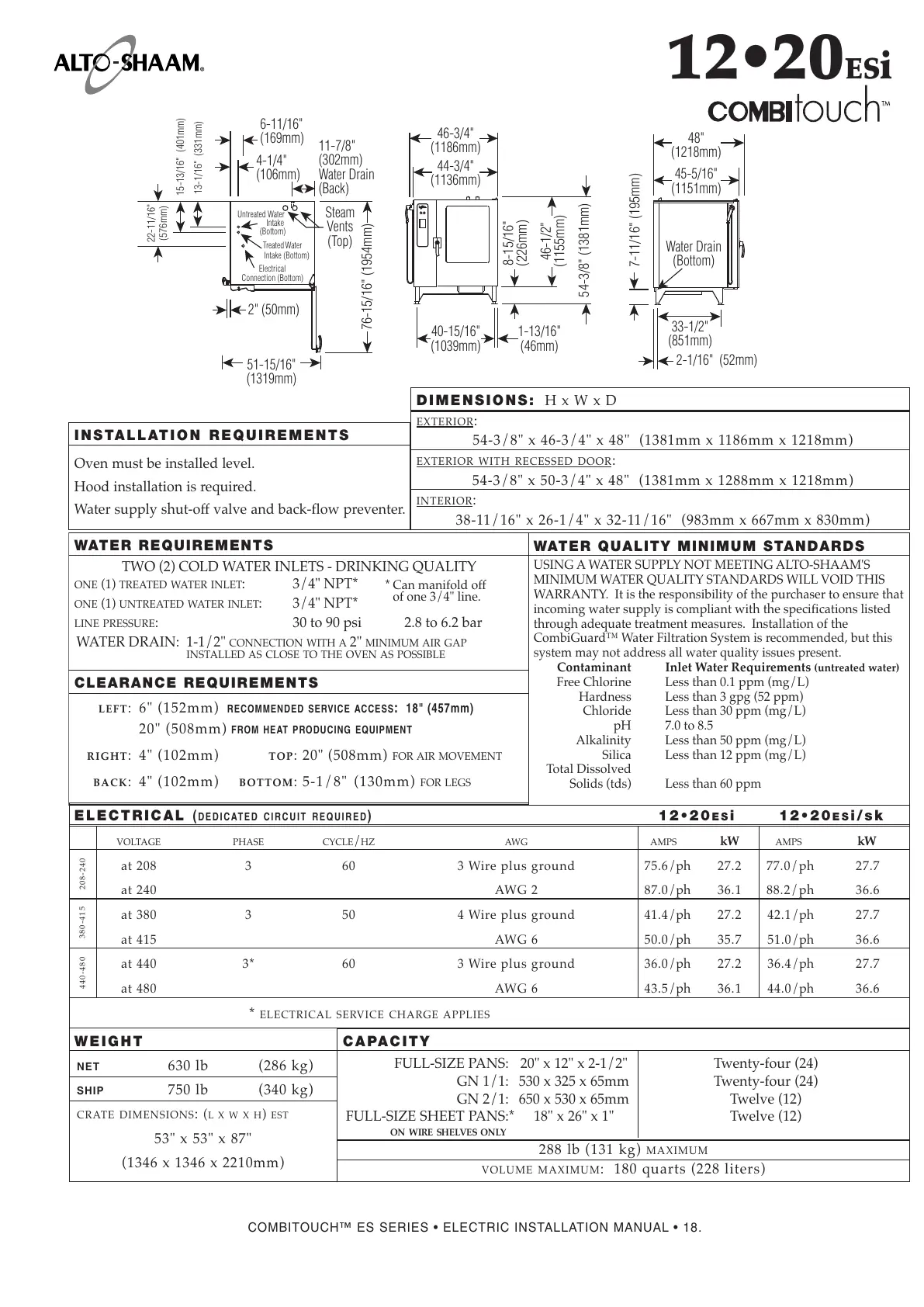

COMBITOUCH™ ES SERIES • ELECTRIC INSTALLATION MANUAL • 18.
46-3/4"
(
1186mm)
4
4-3/4"
(1136mm)
40-15/16"
(1039mm)
1-13/16"
(46mm)
48"
(1218mm)
45-5/16"
(1151mm)
33-1/2"
(851mm)
2-1/16" (52mm)
Water Drain
(
Bottom)
51-15/16"
(1319mm)
2" (50mm)
76-15/16" (1954mm)
8-15/16"
(226mm)
7-11/16" (195mm)
46-1/2"
(1155mm)
54-3/8" (1381mm)
13-1/16" (331mm)
15-13/16" (401mm)
22-11/16"
(576mm)
11-7/8"
(
302mm)
Water Drain
(Back)
Steam
Vents
(Top)
4-1/4"
(106mm)
T
reated Water
Intake (Bottom)
U
ntreated Water
I
ntake
(Bottom)
Electrical
Connection (Bottom)
6-11/16"
(169mm)
D I M E NS IO N S : H x W x D
EXTERIOR:
54-3/8" x 46-3/4" x 48" (1381mm x 1186mm x 1218mm)
EXTERIOR WITH RECESSED DOOR:
54-3/8" x 50-3/4" x 48" (1381mm x 1288mm x 1218mm)
I
NTERIOR
:
38-11/16" x 26-1/4" x 32-11/16" (983mm x 667mm x 830mm)
I N S TA L L AT I O N R E QU I RE ME N TS
Oven must be installed level.
Hood installation is required.
Water supply shut-off valve and back-flow preventer.
12•20ESi
C A PA CI T Y
FULL-SIZE PANS: 20" x 12" x 2-1/2" Twenty-four (24)
GN 1/1: 530 x 325 x 65mm Twenty-four (24)
GN 2/1: 650 x 530 x 65mm Twelve (12)
FULL-SIZE SHEET PANS:* 18" x 26" x 1" Twelve (12)
ON WIRE SHELVES ONLY
288 lb (131 kg) MAXIMUM
VOLUME MAXIMUM
: 180 quarts (228 liters)
W E I G HT
NET 630 lb (286 kg)
SHIP 750 lb (340 kg)
CRATE DIMENSIONS: (LXWXH) EST
53" x 53" x 87"
(1346 x 1346 x 2210mm)
E L E C T R IC A L ( D E D I C AT E D C I R C U I T R E Q U I R E D ) 1 2 • 2 0 E S i 1 2 • 2 0 E S i / s k
VOLTAGE PHASE CYCLE/HZ AWG AMPS kW AMPS kW
at 208 3 60 3 Wire plus ground 75.6/ph 27.2 77.0/ph 27.7
at 240 AWG 2 87.0/ph 36.1 88.2/ph 36.6
at 380 3 50 4 Wire plus ground 41.4/ph 27.2 42.1/ph 27.7
at 415 AWG 6 50.0/ph 35.7 51.0/ph 36.6
at 440 3* 60 3 Wire plus ground 36.0/ph 27.2 36.4/ph 27.7
at 480 AWG 6 43.5/ph 36.1 44.0/ph 36.6
* ELECTRICAL SERVICE CHARGE APPLIES
20 8 - 2 40
38 0 - 4 15
44 0 - 4 80
CL E A R AN C E RE Q U I RE M E N TS
L E FT : 6" (152mm) RECOMM E NDED SERV ICE ACCESS : 18" (457mm)
20" (508mm) FRO M H EAT PRO DUCING EQ UIPMEN T
R I GH T : 4" (102mm) T O P: 20" (508mm) FOR AIR MOVEMENT
B A CK
: 4" (102mm) B O TT O M: 5-1/8" (130mm) FOR LEGS
WAT ER R E Q UI R E M EN T S
TWO (2) COLD WATER INLETS - DRINKING QUALITY
ONE (1) TREATED WATER INLET: 3/4" NPT*
ONE (1) UNTREATED WATER INLET: 3/4" NPT*
LINE PRESSURE: 30 to 90 psi 2.8 to 6.2 bar
WATER DRAIN: 1-1/2"
CONNECTION WITH A 2" MINIMUM AIR GAP
INSTALLED AS CLOSE TO THE OVEN AS POSSIBLE
WAT ER Q U AL I T Y MI N I M UM S TA ND A R D S
USING A WATER SUPPLY NOT MEETING ALTO-SHAAM'S
MINIMUM WATER QUALITY STANDARDS WILL VOID THIS
WARRANTY. It is the responsibility of the purchaser to ensure that
incoming water supply is compliant with the specifications listed
through adequate treatment measures. Installation of the
CombiGuard™ Water Filtration System is recommended, but this
system may not address all water quality issues present.
Contaminant Inlet Water Requirements (untreated water)
Free Chlorine Less than 0.1 ppm (mg/L)
Hardness Less than 3 gpg (52 ppm)
Chloride Less than 30 ppm (mg/L)
pH 7.0 to 8.5
Alkalinity Less than 50 ppm (mg/L)
Silica Less than 12 ppm (mg/L)
Total Dissolved
Solids (tds) Less than 60 ppm
* Can manifold off
of one 3/4" line.
