COMPONENTS
Ve ct or F ® Se ries ▪ S ervice Man ual ▪ MN -4 6 895 ▪ R ev 1 ▪ 7/ 20
41

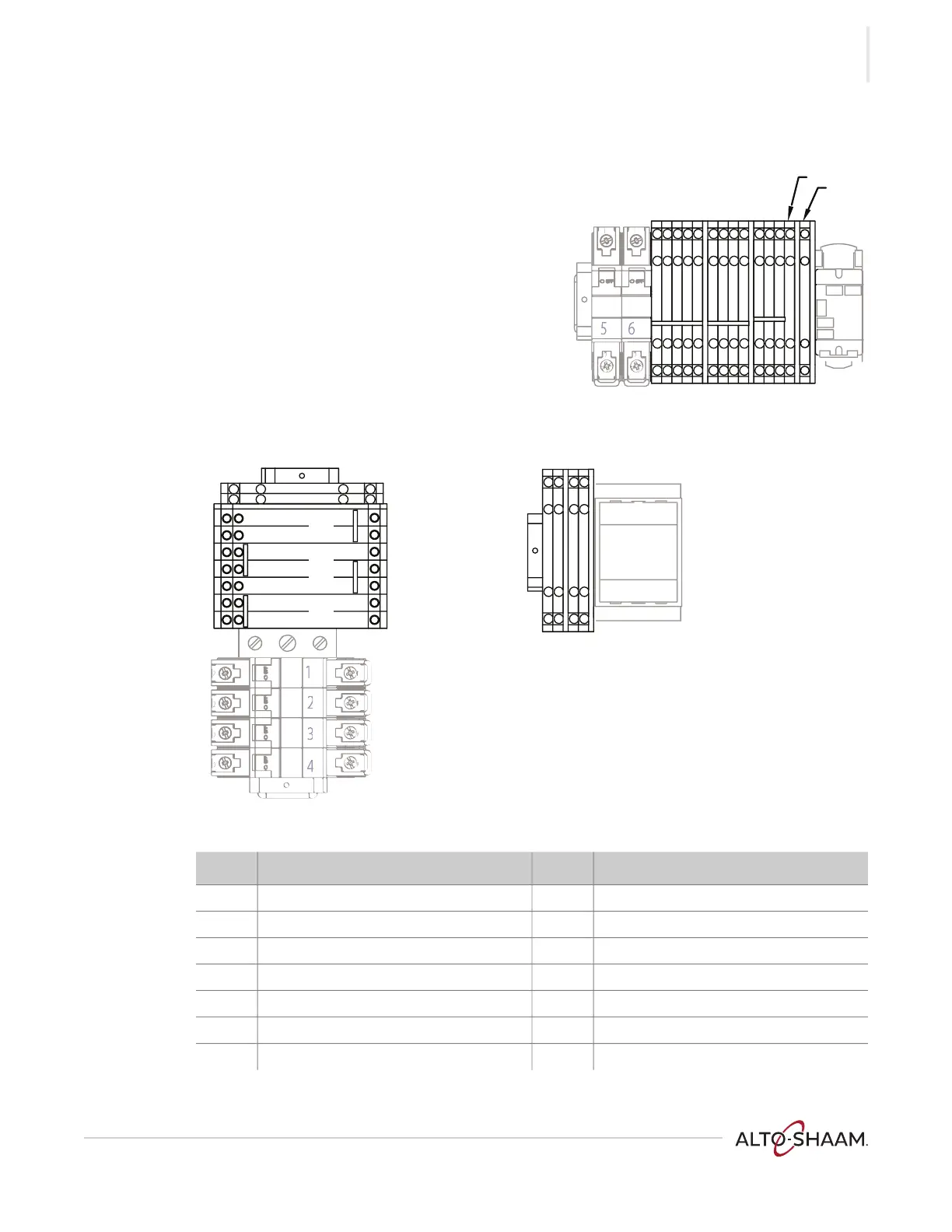

Terminal Blocks
TB29
TB28
TB26TB22TB16
TB37 TB36 TB33 TB32
TB1
TB4
TB7
2
SS
R
L3
L2
L2
L1
TB61
TB60
VMC-PHD-010728
Ref. Description Ref. Description
TB1 Line 1 after disconnect switch TB29 Ground
TB4 Line 2 after disconnect switch TB32 Line voltage to SSR 1 and SSR 2
TB7 Line 3 after disconnect switch TB33 Line voltage to SSR 3 and SSR 4
TB16 Line voltage after circuit breaker 5 TB36 Line voltage to SSR 5 and SSR 6
TB22 Line voltage after circuit breaker 6 TB37 Line voltage to SSR 7 and SSR 8
TB26 Line voltage after relay (RL 1) TB60 Switches—Check fans indicator light
TB28 Line voltage after relay (RL 2) TB61 Switches—Check fans indicator light
