Alto AMX-100 Owner's Manual

8

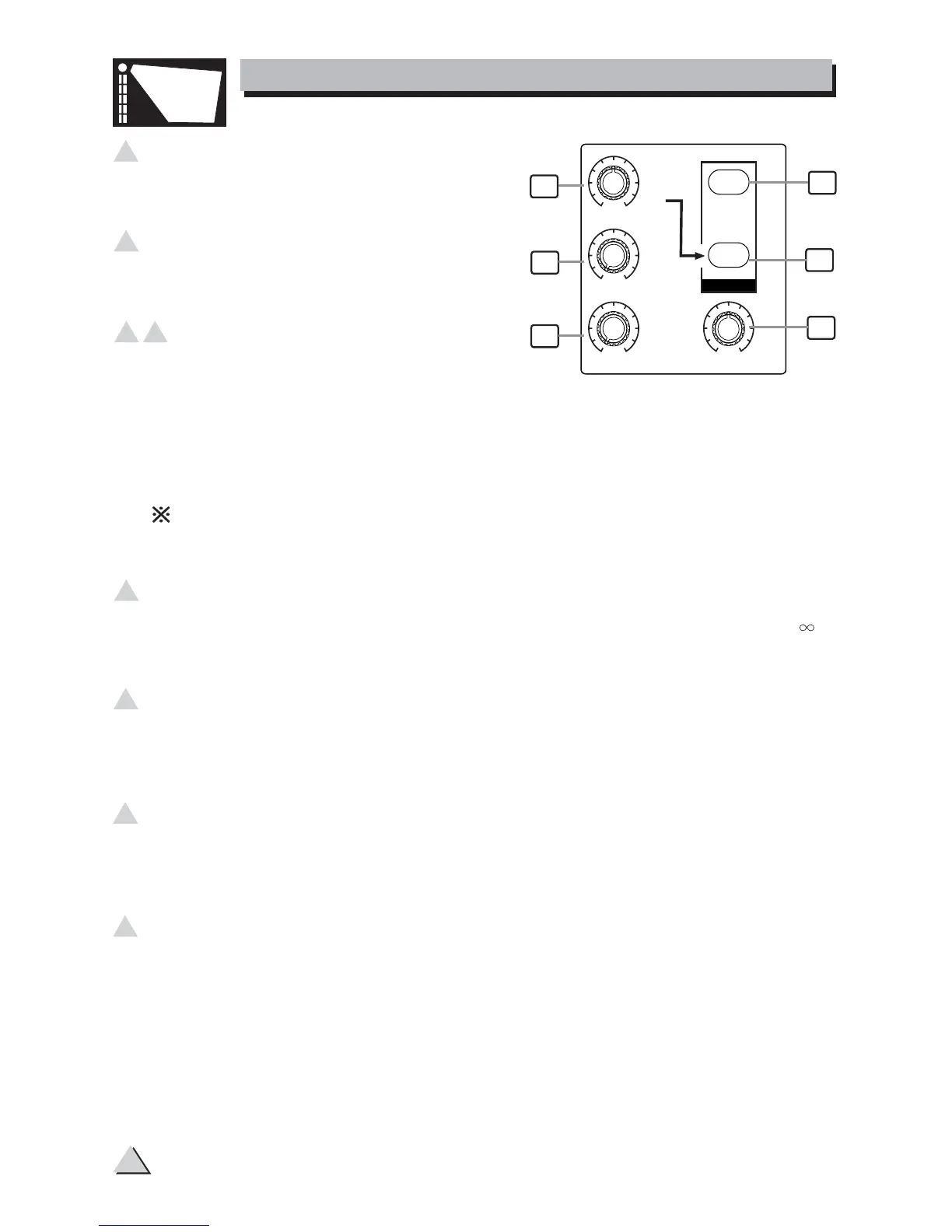

4. CONTROL ELEMENTS
14 POWER LED
This LED indicated when your AMX-100(FX)
switched-on.
15 PH LED
This LED indicates when the PHANTOM
POWER is engaged.
16-17 2-TRACK signal path
Ifyoupushdownthe2TKTO
CONTROL ROOM button, the 2 TRACK
IN signal will be routed into the CONTROL ROOM OUTPUT and the level will be
adjusted by the PHONES/CONTROL ROOM knob. If you push down the 2TK TO
MIX button, the 2 TRACK IN signal will be routed into the MAIN MIX OUTPUT and
will be adjusted by the MAIN MIX LEVEL control.
NOTE: You can push down these two buttons simultaneously, the 2 TRACK IN
signal will be routed into both CONTROL ROOM OUTPUT and MAIN MIX OUTPUT,
and the level of two output signals will be adjusted by respective control knobs.
18 2TK IN
This control is used to adjust the level of 2TK IN, which can be varied from - to
MAX.
19 AUX RETURN
This control is used to adjust the level of the return stereo signal coming from
external / internal multieffect effect. The signal of the AUX RETURN will be sent to
MAIN MIX OUTPUT.
20 MASTER AUX SEND
This knob will provide overall control for the AUX send level before it is delivered to
the AUX SEND OUTPUT. It ranges from off when the knob is turned down completely,
tounitgainwiththeknobincenterposition,to+15dBwhenturnedupfully.
21 PHONES/CONTROL ROOM
This control sets the amount of signal simultaneously sent to the CONTROL ROOM
OUTPUT and PHONES.
SPOTLIGHT
MAX
-
8
2TK TO
CTRL ROOM
2TK TO MIX
TAPE
0
/
CTRL ROOM
PHONES
-+15
8
0
AUX SENDS
-+15
8
0
AUX RTN
-
8
2TK IN
MAX
16
17
18
19
20
21
