18
4.38 MAIN INSERT
59
These two 1/4" phone sockets are stereo insert points and used to connect processors such as compressors,
Expander etc.. When insert a external processor into the jack, the Main stereo signal will be taken out after the
EQ and returned into the MAIN MIX output before the main mix fader.

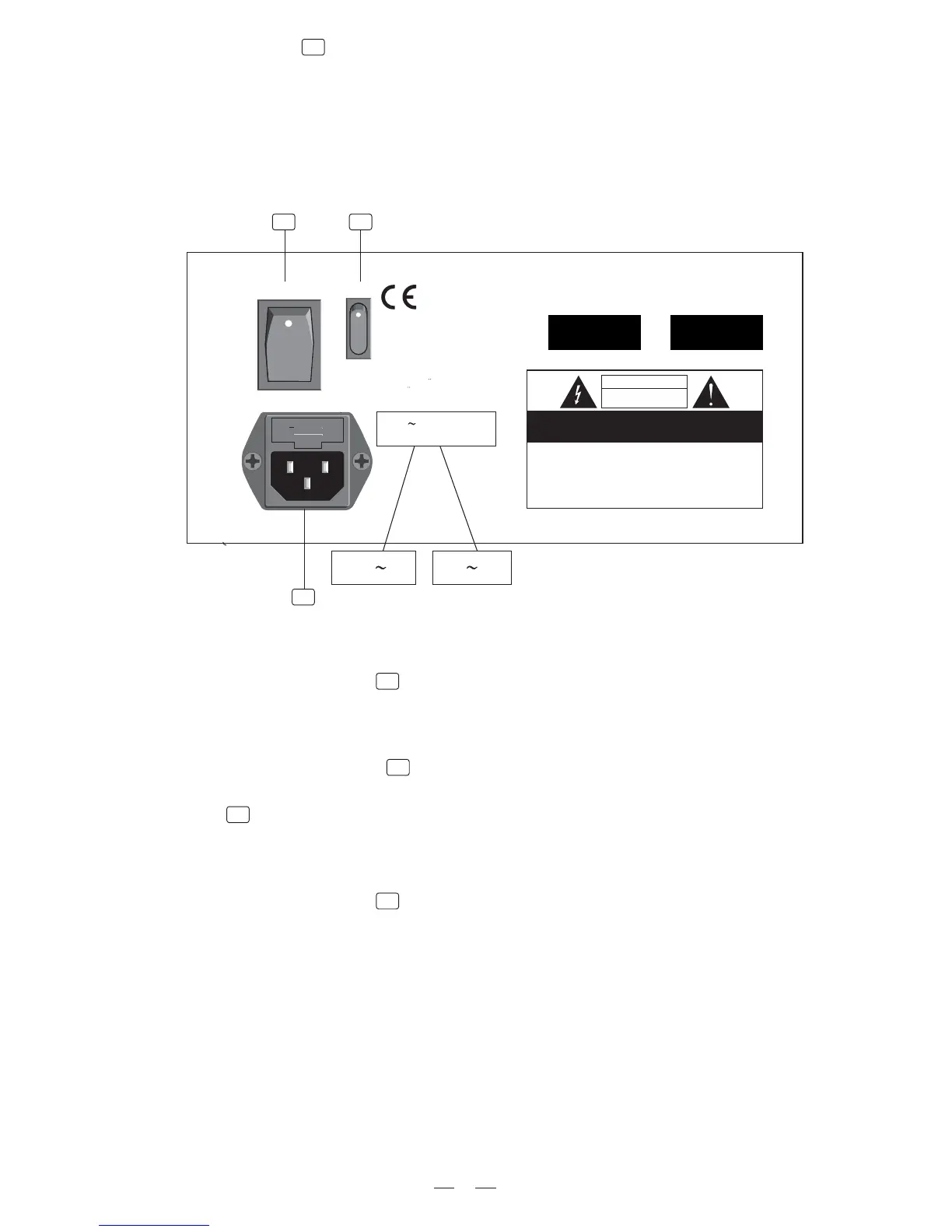

4.39 REAR PANEL Desccription
AC INPUT
EUROPE
210-240V 50-60Hz
RATED POWER CONSUMPTION: 650W
Fuse: T6.3AL
PHANTOMPOWER
ON
OFF
Apparaten skall anslutas till
jordat uttag nar den ansluts
till ett natverk
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
REPLACE WITH THE SAME TYPE FUSE AND RATING
DISCONNECT SUPPLY CORD BEFORE CHANGING FUSE
WARNING: SHOCK HAZARD
AVIS: RISQUE DE CHOC ELECTRIQUE
- DO NOT OPEN
- NE PAS OUVRIR
SERIAL MODEL
ON
OFF
Use only with a 250V fuse
Use only with a 250V fuse
Use only with a 250V fuse
UK / Aust
240V 50Hz
Fuse:T6.3AL
USA / Canada
100-120V 60Hz
Fuse:T10AL
60
- POWER ON/OFF Switch
This switch is used to turn the main power ON and OFF.
2
- PHANTOM ON/OFF Switch
61
- AC Inlet with Fuse Holder
This switch will apply +48 Volt phantom power only to the 8 XLR microphone inputs. When turn on the switch, the
phantom LED on top cover will illuminate.
Note: Never connect microphones when the phantom power is on already.
Use it to connect your PM-12 to the main AC with the supplied AC cord. Please check the voltage available in
your country and how the voltage for your PM-12 is configured before attempting to connect your PM-12 to the
main AC.
60
2
61
43
