19
Note: In order to avoid damaging your built-in amplifier, please pay more attention to the impedance of speaker.
Lower load impedances are not permitted!

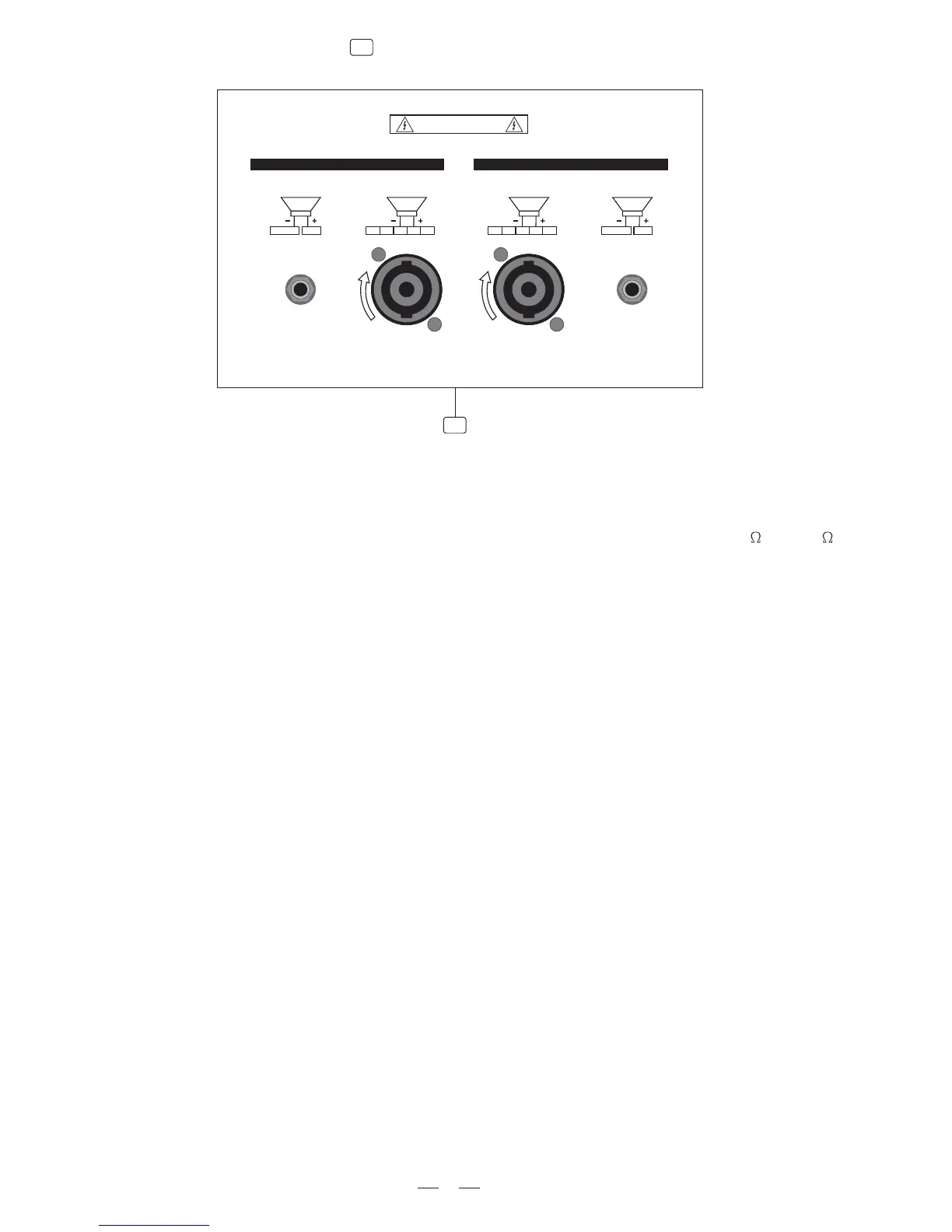

- Speaker Output Jacks
62
62
Your PM-12 is equipped with the advanced class D audio amplifier and the state of the art switching power
technology, which can provide wide operating voltage range, high output power and thermally protected functions
etc.. Yes, it is really very useful apparatus in your system.
4 OHM SPEAKER LOAD MIN.
300 WATTS/CH
CHANNEL L
CAUTTION
LETHAL VOLTAGES MAY APPEAR AT OUTPUT
TERMINALS CLASS 1 WIRING IS REOUIRED
CHANNEL R
SLEEVE TIP
SLEEVE TIP
PIN 2- 1- 1+ 2+PIN 2- 1- 1+ 2+
L
O
C
K
L
O
C
K
There are two types speaker output connector on rear panel: speakon and phone jacks. One 4 or two 8
speakers can be connected per channel. You can use the specific output connectors according to the actual
application circumstance.
